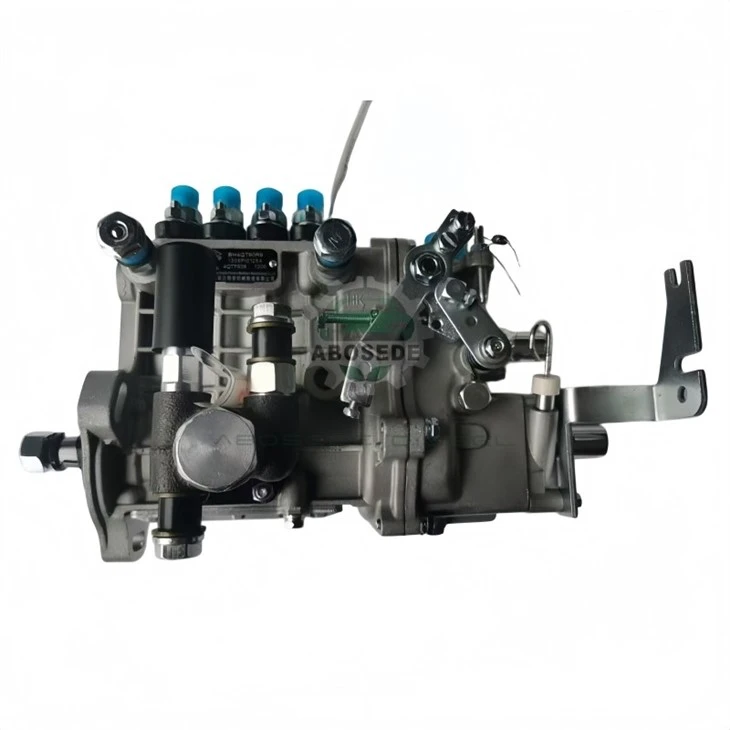

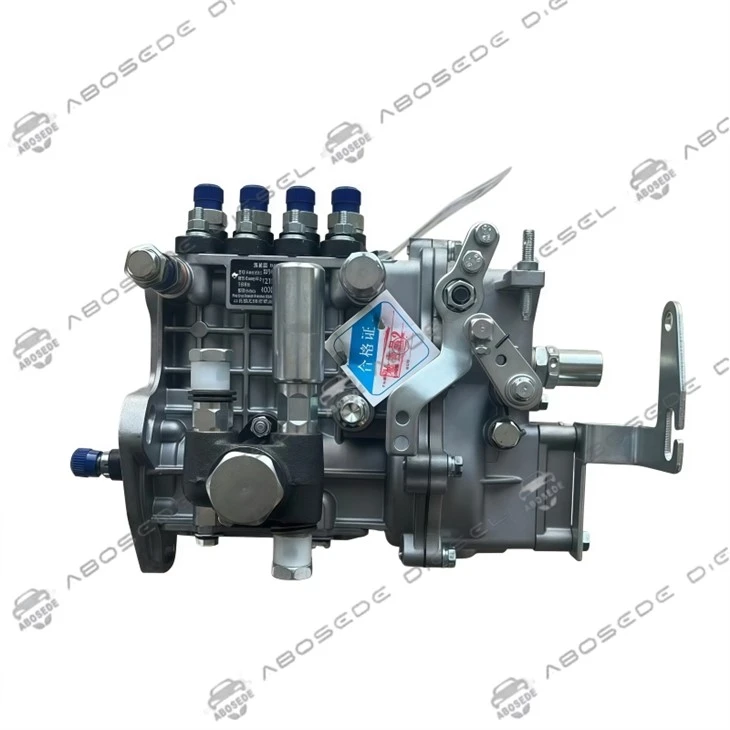

KANGDA 4Q86 BH4Q65R7 Diesel Fuel Injection Pump For XN480 Engine

This KANGDA 4Q86 (pump model BH4Q65R7) is a direct-fit mechanical diesel injection pump engineered specifically for the XN480 power plant governed at 2800 RPM in turbocharged configuration. Supplied as a complete calibrated assembly for the Xingnei engine platform, it restores factory fuel delivery curves without requiring bench recalibration at the point of installation. For workshops servicing agricultural equipment, stationary gen-sets, or light industrial prime movers, this unit eliminates the guesswork associated with used or unverified cores, delivering predictable injection timing and consistent plunger output straight out of the box.

Every 4Q86 assembly is matched to the XN480's specific combustion characteristics, with the BH4Q65R7 distributor head and plunger set preset to the original Xingnei fuel map. The 2800 RPM turbocharged governing point dictates the internal spring tension and maximum fuel stop, ensuring the pump does not over-fuel at rated speed while maintaining adequate torque reserve under load. The 4Q86 ordering code decodes to a distinct cam profile and delivery valve opening pressure that aligns with the XN480's injector pop pressures and combustion chamber geometry, so technicians receive a unit that behaves like the original factory fitment rather than a generic replacement requiring extensive shimming or timing adjustment.

The XN480 engine family sees duty in mixed fleet applications where fuel quality and ambient conditions vary considerably-from cold-start agricultural tractors to continuous-run irrigation power units. This BH4Q65R7 pump is built to tolerate the particulate levels commonly encountered in off-road diesel without the catastrophic contamination sensitivity of modern high-pressure common rail hardware. Installers will find the mounting flange and drive shaft interface match the Xingnei timing case directly, with no adapter plates or drive gear modifications required. The mechanical governor responds predictably to load changes, making this pump particularly suited to equipment that operates across a wide RPM band rather than at a single fixed speed.

Before bolting the 4Q86 to the XN480 block, verify that the engine is locked at the specified injection timing mark and that the drive shaft keyway aligns with the pump hub without force. The most common cause of premature failure on these distributor pumps is debris introduced during installation-even a single particle shed from a deteriorating fuel line can score the BH4Q65R7 plunger and barrel assembly. Flush the high-pressure lines and replace the fuel filter and water separator element as a mandatory step, not an optional one. Prime the pump with clean diesel before cranking to avoid a dry-start condition that strips the internal vanes. Once mounted, confirm that the return line is unrestricted and free of air bubbles; a partially clogged overflow circuit will distort internal gallery pressure and cause erratic idle or power surging that mimics a failing pump.

For the repair shop weighing a rebuild against replacement, the 4Q86 offers a straightforward economic argument. Unlike common rail systems where a failing high-pressure pump can scatter metallic debris into the injectors and rail, this mechanical distributor design typically degrades gradually-hard starting, low power under load, or excessive smoke at idle-giving the technician clear diagnostic signals before a no-start condition occurs. A bench rebuild of a worn BH4Q65R7 requires specialized calibration equipment and often exceeds the labor cost of simply fitting a fresh calibrated unit. Because this pump arrives with the Xingnei fuel curve already set, the installer avoids the iterative test-bench adjustments that rebuilt cores frequently demand, reducing bay time and comeback risk.

Q1: How can I confirm the 4Q86 is the correct pump for my XN480 before ordering?
A: Cross-reference the engine serial plate and the original pump nameplate. The BH4Q65R7 model number must match, and the governing speed should read 2800 RPM. Xingnei produced variants of the XN480 with different fuel settings; the 4Q86 ordering code is the only reliable identifier.

Q2: Does this pump require ECU programming or electronic calibration?
A: No. The 4Q86 is a fully mechanical distributor pump. There are no solenoids, sensors, or electronic actuators to sync with an ECU. Timing is set mechanically at the drive gear, and fuel delivery is governed by internal centrifugal weights and the calibrated fuel screw.

Q3: What is the typical failure mode when the BH4Q65R7 wears out?
A: Gradual loss of delivery pressure under load, hard hot starting, and excessive black smoke at low RPM. Unlike catastrophic common rail failures, mechanical wear rarely contaminates the injectors, so a pump-only replacement is usually sufficient if the fuel system is flushed.

Q4: Can I install this pump without a test bench if I match the timing marks carefully?
A: Yes, provided the engine is locked at the correct static timing point and the pump drive shaft keyway aligns with the hub mark. However, a final delivery check with a spill-tube method or a brief run-in with exhaust gas temperature monitoring is recommended for high-hour engines.

Q5: What warranty coverage applies to this KANGDA 4Q86 unit?
A: Standard coverage applies against manufacturing defects in materials and workmanship. Warranty is void if the pump has been opened, the fuel screw tampered with, or if contamination damage is evident from water or debris ingress. Retain the installation invoice and fuel filter replacement record for any claim.
