KANGDA 4Q87b BH4Q65ZAY Diesel Fuel Injection Pump For Changchai 485 Engines

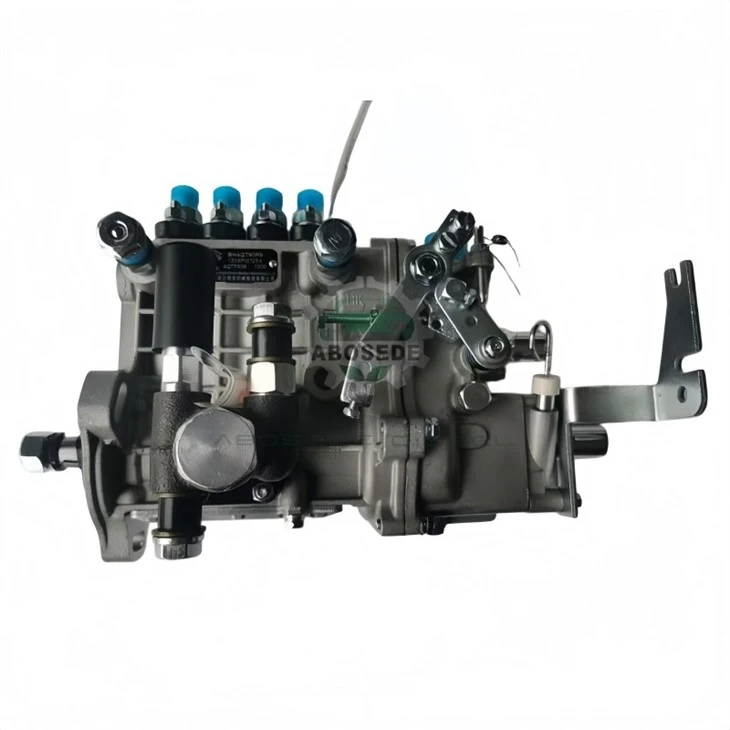

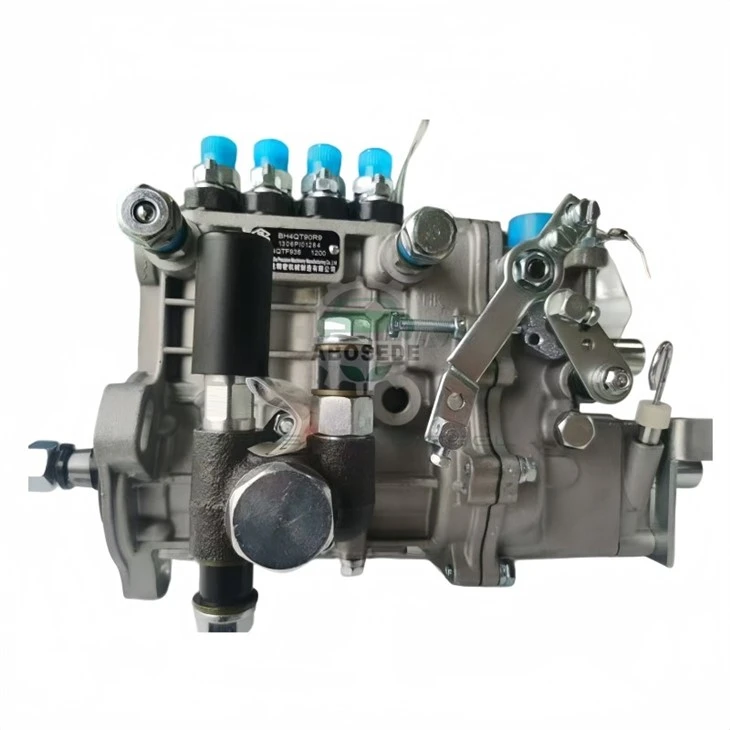

This KANGDA 4Q87b injection pump assembly, fitted with the BH4Q65ZAY hydraulic head, is a mechanical in-line plunger unit engineered specifically for Changchai 485 diesel platforms governed at 3000 RPM for turbocharged applications. Supplying this pump to your counter means offering workshops a drop-in fuel metering solution that restores factory starting behavior and load response without requiring ECU recalibration or complex electronic diagnostics.

The BH4Q65ZAY element designation indicates a 65 mm plunger-to-plunger pitch paired with a specific cam profile that governs both fuel delivery volume and injection timing across the four-cylinder firing order. The pump operates as a mechanical in-line assembly, meaning each cylinder receives fuel through an individual plunger-and-barrel set driven by the camshaft, with delivery volume regulated by the rack-and-pinion control mechanism rather than a pressure control valve . The 4Q87b order number ties this assembly to Changchai's 485 engine family, where the pump flange bolt pattern and drive gear interface are machined to match the factory gear case without adapter plates. The governor assembly is factory-set to maintain stable idle and limit overspeed at the 3000 RPM governed threshold, a critical parameter for turbocharged 485 variants that see sustained load in generator and agricultural duty cycles.

Fitting the 4Q87b pump demands the same discipline as any mechanical in-line unit: the drive gear must engage the camshaft keyway without forcing, and the flange nuts should be torqued in a cross pattern to avoid distorting the pump housing. Before the first crank, fill the pump body with clean diesel through the inlet fitting and operate the hand primer on the feed pump until resistance is felt; dry-running a mechanical pump for even a few seconds scores the plunger surfaces and destroys the clearances that make cold starting effortless . After the engine catches, verify that the rack returns freely from full throttle to idle without hanging, and check for fuel weeping at the delivery valve holders and the hydraulic head sealing surface.

In an era of common-rail pressure sensors and injector coding, the 4Q87b represents a different value proposition for the repair shop: diagnosis without a scan tool, repair without a calibration bench, and replacement without a software subscription. The failure modes of a mechanical in-line pump are observable and logical. Low power with black smoke points to over-fueling from a worn rack or sticking plunger. A miss at idle that clears under load suggests a delivery valve not seating. Hard starting when hot often traces to plunger wear that allows fuel to drain back into the pump gallery.

Q1: Can I install this pump on a naturally aspirated 485 that was originally rated below 3000 RPM?
The governor setting is calibrated for the turbocharged 3000 RPM application. A naturally aspirated engine with a lower governed speed will run, but the high-idle stop may prevent the rack from reaching the fuel delivery the original pump provided. Match the order number to the engine's nameplate before ordering.

Q2: What is the most common return reason for this pump, and how do I avoid it?
Contamination during installation. Workshops that skip flushing the high-pressure lines or reuse old delivery valve holders introduce debris that scores the new plungers within minutes. Always replace the fuel filter and blow out the lines before fitting.

Q3: Does the 4Q87b require a different drive gear than the pump it replaces?
No. The camshaft taper and keyway are machined to the Changchai 485 standard. Reuse the original gear if the teeth show no wear; if the gear is worn, replace it along with the pump to avoid timing drift.

Q4: How should I store this pump if it sits on the shelf for several months?
Cap the inlet and outlet ports to keep dust out, and store it upright in a dry area. Do not remove the plastic plugs until the moment of installation. If the pump has been on the shelf for over a year, prime it with fresh diesel and rotate the camshaft by hand before fitting.

Q5: Can this pump be bench-tested without the engine's governor linkage attached?
The pump can be flow-tested on a calibration stand, but the governor assembly is integral and must remain on the pump. Test the rack travel and delivery volume at the specified RPM, and compare the results against the factory bench sheet included with each unit.

Q6: What warranty coverage applies to the BH4Q65ZAY hydraulic head?
Warranty covers manufacturing defects in materials and workmanship for twelve months from the invoice date. It does not cover damage from contaminated fuel, dry running, or improper timing adjustment. Retain the bench verification sheet for any claim.
