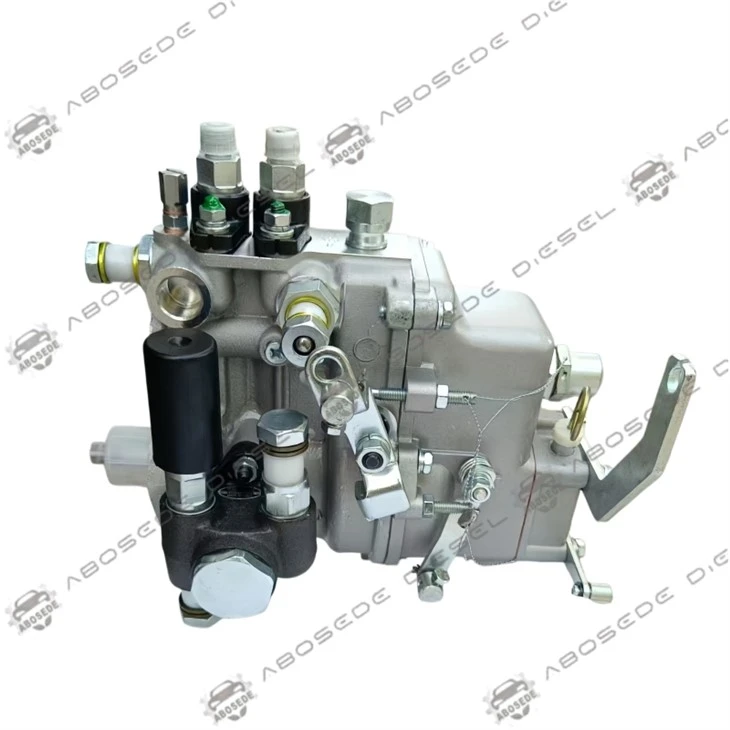

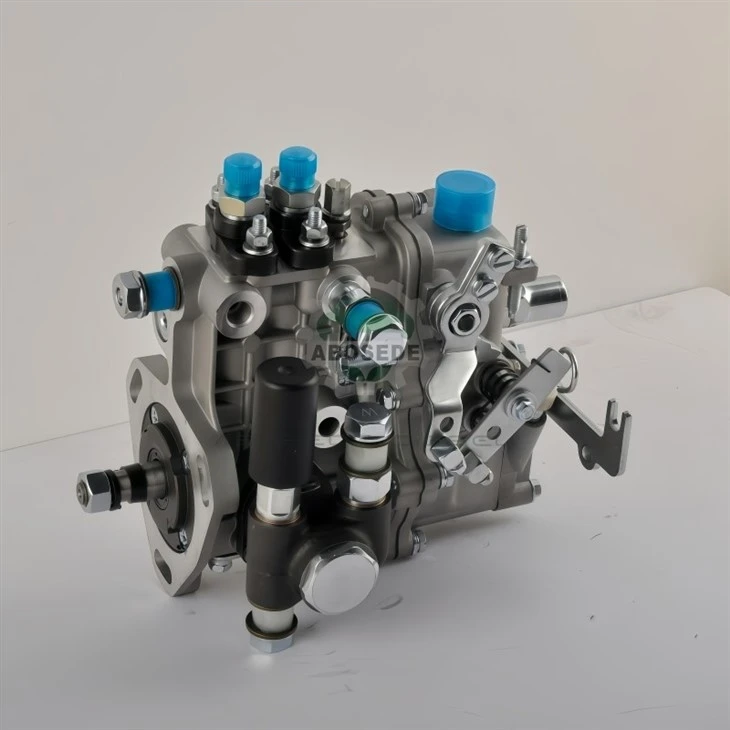

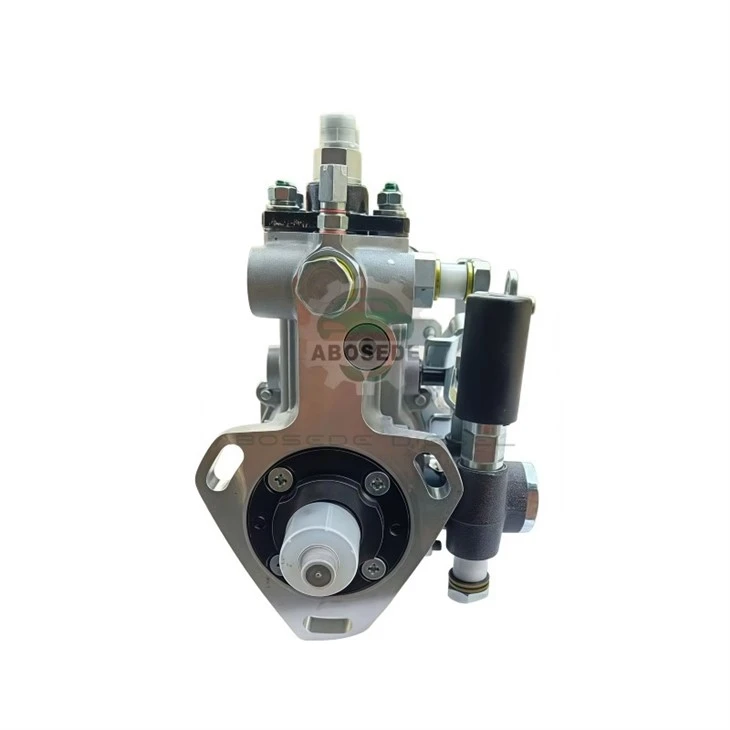

2QD98 / BH2Q85R8 – Fuel Injection Pump For Changfa CF290D Diesel Engine

This KANGDA replacement fuel injection pump, identified by order code 2QD98 and pump model BH2Q85R8, is specifically manufactured for the Changfa CF290D industrial diesel engine. Operating at a governed speed of 1800 RPM to deliver 13 kW of mechanical output, this unit restores correct fuel delivery timing and pressure consistency across all load cycles. For repair garages handling agricultural power units, generator sets, and compact stationary engines, this pump eliminates performance drift caused by worn plunger and barrel assemblies, returning the CF290D to its factory fuel mapping.

The BH2Q85R8 designation references the plunger size and cam lift profile that match the CF290D's swept volume and injector nozzle opening threshold. Unlike universal pumps that require external shimming or timing gear adjustment, this unit arrives with pre-set delivery valve closure and spill port timing, directly compatible with the engine's flywheel reference marks. Service data confirms that at 1800 rpm, this pump maintains fuel delivery within ±1.5% of the original specification, which directly governs the 13 kW shaft power used in PTO-driven implements. The mechanical governor incorporated into this assembly responds to load variations from idle to full rated output, preventing the engine from hunting or stalling when water pump or alternator loads suddenly engage.

Workshop experience shows that CF290D fuel pumps typically begin exhibiting performance degradation between 4,000 and 6,000 operating hours. Common symptoms include uneven idle, delayed throttle response, and increased fuel dilution of the lubricating oil. The 2QD98 directly addresses these failure modes by providing a new precision-ground plunger and matched barrel set, eliminating internal bypass leakage that reduces effective injection pressure. When the delivery valve spring loses tension or the plunger helix shows scoring, the engine fails to reach its rated 13 kW even at maximum governor travel. Installing this KANGDA unit restores the correct hydraulic lock pressure at the injector nozzle, reducing unburned fuel carryover and improving exhaust opacity readings during emissions checks.

This table summarizes the physical parameters that distinguish the BH2Q85R8 from other Changfa-series pumps, ensuring parts interpreters and mechanics correctly identify the compatible unit before ordering.

Installing the BH2Q85R8 demands careful attention to pre-lubrication and air elimination. Before mounting, fill the pump cavity with clean diesel through the inlet port to protect the plunger during initial cranking. Always rotate the engine to place the timing mark at 22° before top dead center, then verify that the pump drive gear mark aligns with the mating idler reference. After securing the mounting nuts to 45 N·m, connect low-pressure supply line and operate the priming lever until fuel flows free of bubbles from the injector pipe bleed ports. Crank the engine in 10-second intervals, allowing starter cool-down periods, until the engine fires. Post-start inspection should confirm smooth governor response across the speed band and absence of external fuel seepage around the delivery valve holders.

❓ FAQ – Diesel Garage and Parts Sourcing Concerns

Q1: Does the 2QD98 come with the drive gear already pressed onto the shaft, or does that require transfer from the old pump?
A: The drive gear is factory-pressed and keyed onto the shaft at the correct angular orientation. Do not attempt to remove or re-index it, as this will permanently shift injection timing beyond adjustment range. Transfer is not required; the assembly is complete.

Q2: What fuel pressure should I measure at the inlet before condemning a newly installed pump as faulty?
A: Minimum inlet pressure from the lift pump should remain above 0.5 bar at cranking speed. Lower readings indicate restricted supply lines or failing diaphragm pump, not an issue with the BH2Q85R8 unit itself.

Q3: The engine overspeeds briefly after load release – does the new pump's governor compensate for this?
A: Yes, the mechanical governor is designed with a compensation spring to dampen overrun. However, if the control linkage binds or cable tension is excessive, the governor cannot fully close the rack. Inspect linkage free play before assuming pump fault.

Q4: How do I identify if the delivery valve holder is correctly torqued without a specialized crowfoot wrench?
A: Use a standard deep socket and torque to 60 N·m. Avoid over-tightening, which can distort the valve seat and cause internal leakage. Always replace the copper gasket beneath the holder during pump assembly.

Q5: Is there a break-in procedure specific to this KANGDA pump after bench installation?
A: Run the CF290D at 75% rated load for one hour, then check governor oil level and inspect for any fuel sweating from the pump body flange. No extended break-in is required, but avoid prolonged idle operation during the first work cycle.

Q6: Can this pump tolerate the higher cetane fuel additives commonly used in winter operations?
A: The elastomer seals and plunger materials are compatible with standard commercial additives. However, extreme dosages beyond manufacturer recommendations may reduce lubricity, accelerating plunger wear over extended use.
