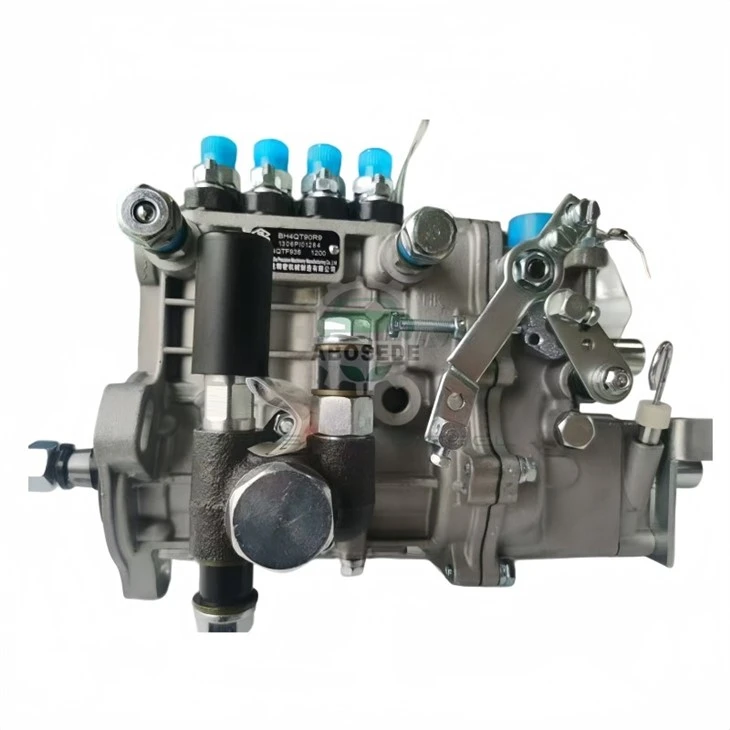

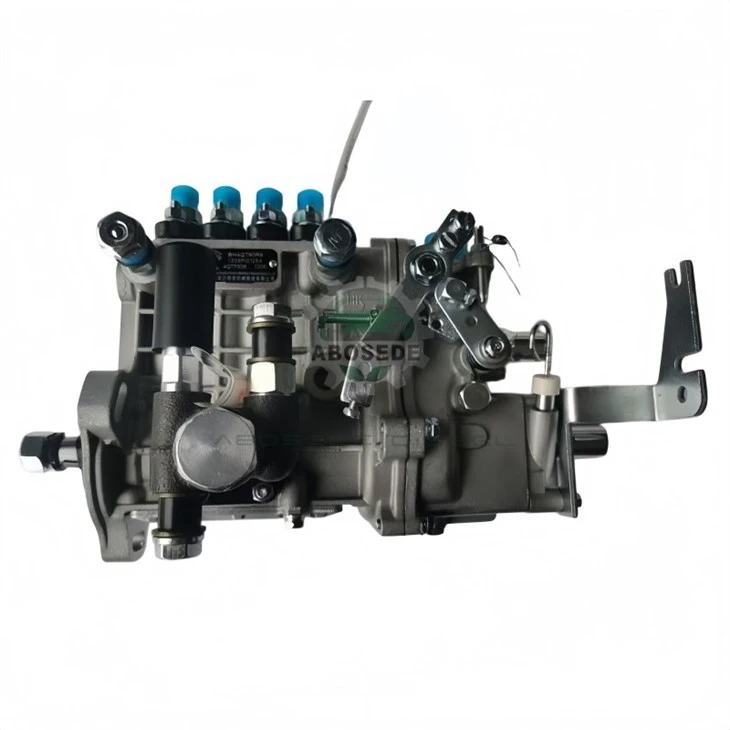

KANGDA 4Q84 BH4Q65R8 Diesel Fuel Injection Pump For 485 Engine Assembly

KANGDA 4Q84 BH4Q65R8 fuel injection pump is a mechanically governed inline plunger-type diesel pump engineered for 485-series power plants rated at 3000 rpm in turbocharged configuration. Supplied as a direct-fit replacement for Xinjiang engine assemblies, this unit restores precise plunger stroke control and delivery valve sealing that worn original pumps lose after extended duty cycles. Each pump undergoes bench calibration to verify fuel delivery curve consistency across the full rack travel range before dispatch.

The following table consolidates the dimensional and operational parameters that matter most when verifying fitment before ordering. All figures reflect nominal factory tolerances for the 4Q84 platform, and the pump is assembled with high-chromium plunger elements and hardened delivery valve seats to resist low-sulfur diesel wear patterns common in off-highway fleets.

This BH4Q65R8 pump is configured specifically for the 485 diesel engine platform produced by Xinjiang and widely deployed in small agricultural tractors, light construction equipment, and stationary power units across export markets. The 3000 rpm turbocharged rating means the governor spring and torque compensator are set for higher-speed operation than naturally aspirated 485 variants, making this pump unsuitable for derated industrial configurations without recalibration. Shops servicing Xinjiang 485 engines in grain dryers, mini-excavators, and generator drive applications will find this unit matches the OEM fuel map for cold-start enrichment and full-load delivery. Buyers should confirm the host engine's data plate indicates turbocharged operation before ordering, as the BH4Q65R8 plunger and barrel assembly differs from the naturally aspirated BH4Q65 series in delivery rate.

Mounting the BH4Q65R8 requires attention to drive coupling alignment and static timing, since the pump flange does not self-index to the engine block without the original dowel arrangement. Begin by verifying the Xinjiang 485 engine is at cylinder one compression stroke TDC, then align the pump's timing mark with the flywheel pointer before torquing the flange nuts to the host manufacturer's specification. Prime the pump housing with clean diesel through the inlet fitting before cranking to avoid a dry-start condition that scores the plunger and delivery valve surfaces. After initial start, set idle to 750–800 rpm and check that the mechanical governor responds without hunting; a surging idle often indicates air ingress at the inlet banjo or a misadjusted max-fuel stop screw. Final road or load testing should confirm no black smoke at snap acceleration, which would suggest excessive delivery quantity and require rack adjustment on a calibrated bench.

While the BH4Q65R8 is a mechanical pump rather than a common-rail unit, its failure modes are diagnostically linked to the same fuel system pressure-loss logic that technicians apply to electronic diesel platforms. When a 485 engine exhibits hard starting, white haze at idle, or power derate under load, the root cause frequently traces to delivery valve leakage or plunger-to-barrel clearance exceeding the wear limit, not to injector nozzle faults alone. Replacing the pump as a complete calibrated assembly eliminates the guesswork of partial resealing and restores the original injection timing curve without a trial-and-error shimming process. For repair shops maintaining mixed fleets of mechanical and common rail equipment, keeping a bench-tested BH4Q65R8 on the shelf reduces vehicle downtime from days to hours and protects the shop's comeback record on older Xinjiang-powered machinery that remains in daily revenue service.

Q1: Does this pump require a matching injector change when replacing a worn original?
A: No, provided the existing injectors pass pop-tester verification at the specified opening pressure. The BH4Q65R8 is calibrated to the OEM delivery curve, but worn nozzles will mask pump performance gains.

Q2: How can I confirm the 3000 rpm turbo rating before installation?
A: Check the engine data plate for turbocharger presence and rated speed. Naturally aspirated 485 engines use a different governor spring, and installing this pump will cause over-fueling at low speed.

Q3: What is the shelf life of a bench-tested pump in storage?
A: Twelve months in a sealed, rust-preventive bag stored below 40°C. Plunger surfaces are coated at dispatch, but extended humid storage can still cause sticking.

Q4: Can this pump be used with biodiesel blends above B20?
A: KANGDA does not validate the BH4Q65R8 for high-blend biodiesel. Elastomer seals and plunger lubrication degrade faster with elevated FAME content, increasing leakage risk.

Q5: What core return policy applies to this order number?
A: Core acceptance depends on distributor terms. Inspect the returned pump for cracked housings or missing governor covers before issuing credit; incomplete cores are typically rejected.

Q6: Is a calibration certificate included for fleet audit documentation?
A: Yes, each pump ships with a bench test sheet recording delivery at multiple rack positions and governor breakpoint. This document supports warranty claims and fleet maintenance audits.
