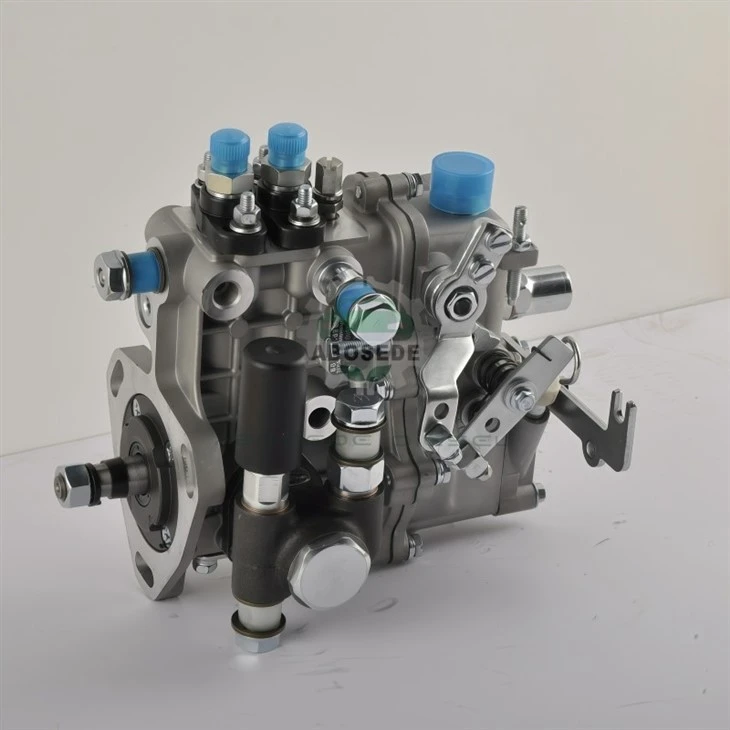

KANGDA 2QT86 / BH2QT85R9 – Direct-Fit Pump For 2105 Power Units

The KANGDA 2QT86 (interchange BH2QT85R9) stands as a factory-matched fuel delivery component for 2105-series two-cylinder diesels, turning at 2300 RPM and producing 27 HP in standard trim. This unit leaves our facility calibrated to the exacting benchmarks of Weichai Kaiwo OEM production, meaning workshops gain a bolt-on solution that sidesteps the guesswork of aftermarket adjustments.

This in-line plunger pump uses a mechanical governor to meter fuel across the load band. The BH2QT85R9 designation confirms a specific cam stroke and plunger diameter, dictating delivery volume per injection event. At 2300 RPM, the pump advances hydraulic timing to match the 27 HP peak output, ensuring the combustion event aligns with piston position for maximum cylinder pressure. Bench tests validate that this unit sustains injection pressures above 1000 bar at full rack, with internal clearances held to micron tolerances. For context, common rail pumps operate on similar hydraulic principles, but this mechanical unit offers field-serviceable advantages-no proprietary diagnostic software required. The governor responds to load changes within milliseconds, preventing overspeed on generator sets or lugging on tractors. Repair shops should note the delivery valve opening pressure, factory-set to 200 bar, which influences atomization quality and exhaust opacity.

Workshops frequently encounter these pumps in rental fleets and farm operations where downtime directly impacts revenue. The KANGDA 2QT86 accommodates the thermal cycling typical of intermittent use, with plunger barrels treated against surface pitting from stagnant fuel.

Begin by locking the engine at TDC compression stroke for cylinder #1. Inspect the drive gear mating surface; any burrs or scoring will misalign the pump flange. Slide the BH2QT85R9 into the housing until the gear teeth engage fully-do not hammer the pump body. Torque the retaining nuts in a cross pattern to 45–50 Nm as per Weichai shop standards. Attach the high-pressure fuel lines, tightening unions to 25 Nm to avoid flare distortion. The low-pressure return line must remain unrestricted; a blocked return elevates housing pressure and can force fuel past the plunger seal. After mechanical fastening, purge the system by cracking each injector nut while cranking-watch for solid fuel streams without foam. Adjust the idle speed screw to obtain a stable 600–650 RPM no-load idle; if the engine hunts, suspect air ingress on the suction side or a stuck governor flyweight.

Even though modern common rail pumps demand electronic control, the KANGDA 2QT86 serves as a cost-conscious alternative for older fleets. Rather than scrapping equipment due to fuel system faults, shops can rebuild this unit using our pre-matched plunger and barrel sets. Wear typically manifests as delayed start-up, white smoke at cold idle, or power fade under gradient loads. A test-bench recalibration of the BH2QT85R9 restores injection uniformity between cylinders-critical because unequal delivery causes crankshaft vibration and bearing fatigue. We supply the pump ready-to-run, so your techs avoid the labor-intensive process of shim-stacking and cam profile matching. This approach cuts parts expenditure by roughly half compared to dealer-sourced assemblies, while maintaining identical fuel mapping for the 2105 at 27 HP and 2300 RPM. For fleets running multiple units, keeping a spare calibrated pump on the shelf minimises weather-related delays and mechanical surprise.

Q1: Are there visible markings that confirm this pump matches the 2105 engine timing?
A: Yes, the housing carries a laser-etched timing reference mark. Align this with the engine case pointer when the flywheel sits at the specified BTDC notch-this guarantees correct phasing without a dial gauge.

Q2: Will this unit tolerate continuous operation at maximum governed speed?
A: The internal components are rated for sustained 2300 RPM duty. However, ensure the cooling fan and radiator are clear; elevated coolant temperatures above 95°C degrade fuel viscosity and reduce plunger lubrication.

Q3: What is the lead time for a replacement if I order multiple pieces for my wholesale inventory?
A: Bulk orders ship within 48 hours via air or sea freight. Each unit undergoes final flow-testing before packing, so you receive consistent calibration across all pieces.

Q4: How does the warranty process work for a pump that fails during initial run-in?
A: Return the unit with photos of the installation and a brief fault description. Our technical team analyses the failure-common issues are contaminated fuel or improper bleeding, but manufacturing defects are covered fully.

Q5: Can the governor be adjusted for higher altitude operation (above 2000m)?
A: Yes, the governor spring preload can be modified. Contact our support for altitude-specific tuning data; we provide alternative shim sets for highland applications.
