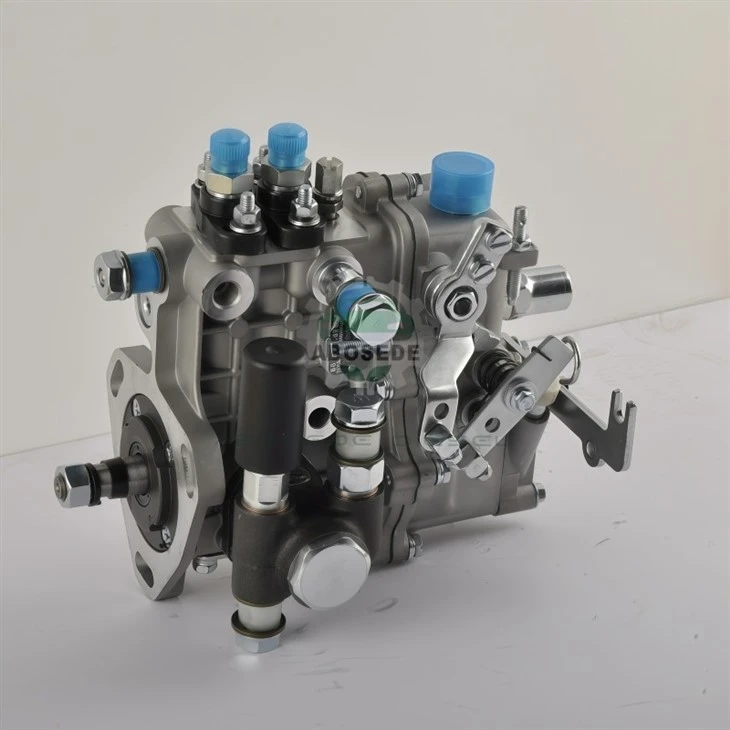

KANGDA 2QT61 / BH2QT95R9 – Direct-Fit Mechanical Pump For YC2118 Power Units

When a Yuchai YC2118 begins lagging under load or refuses to fire cleanly at start-up, the fuel delivery heart often points to a failing injection pump. The KANGDA 2QT61 – carrying pump model BH2QT95R9 – steps in as a factory-matching replacement built specifically for that engine, rated at 2400 RPM and 40 HP, and supplied to the Yudong (YuDong) production line. This unit restores the original hydraulic timing and fuel quantity without requiring any electronic reflash or adapter plates, making it a straightforward swap for workshop technicians accustomed to mechanical diesel architecture.

Every BH2QT95R9 arrives with its plunger stroke and delivery valve opening pressure preset to YC2118 baseline figures. The 2QT61 order number identifies the complete assembly, which includes the governor housing, throttle shaft, and stop solenoid mounting provisions. Operating at 2400 RPM crankshaft speed, this pump rotates at half that rate – a standard in-line four-stroke drive ratio – delivering fuel pulses exactly when the piston reaches compression top dead centre. The unit's plunger diameter and cam lift angle determine how many cubic millimetres of fuel enter the combustion chamber per stroke, directly governing the 40 HP output. Workshops verifying rail pressure or checking delivery valve retention will find the barrel and plunger sets accessible through the top cover, simplifying wear assessment without complete teardown.

This KANGDA pump fits naturally aspirated and low-boost versions of the two-cylinder Yuchai YC2118, the type commonly bolted into 25–35 horsepower tractors, 15 kW generator heads, and hydraulic power packs. The Yudong factory designation confirms OEM fitment for chassis and stationary applications where the engine sits without electronic engine management. Unlike pumps designed for automotive highway use, the BH2QT95R9 governor curve favours droop characteristics suited to PTO-driven mowers and irrigation pumps – loads that fluctuate with ground speed or water pressure. Installation requires confirming the drive gear orientation; the pump's keyway position relative to the mounting flange determines whether cylinder #1 receives fuel at the correct crankshaft angle. Service records indicate that most field failures occur not from internal wear but from contaminated fuel scoring the plunger lands, a condition this replacement unit immediately remedies.

Bolting the 2QT61 onto the YC2118 gear case demands attention to three alignment points: the locating dowels, the drive gear mesh, and the throttle lever sweep. Before cinching the mounting nuts, technicians should rotate the crankshaft to the firing mark for cylinder one, then verify that the pump's timing pin hole aligns with the index mark on the governor housing – a manual check that confirms mechanical synchronisation. The delivery pipes must be loosely fitted until the pump base is fully seated, then tightened in a criss‑cross pattern to prevent flange distortion. After priming the low-pressure gallery through the inlet banjo, the system must be bled at the injector unions while cranking. One common oversight involves reusing old copper washers; new sealing rings should accompany every BH2QT95R9 installation to eliminate air ingress that mimics pump failure. Linkage adjustment calls for a slight free play at the stop lever – roughly 1.5 mm – ensuring the internal governor can return to idle without sticking.

Where modern common-rail pumps demand specialised test benches and encrypted coding, the mechanical BH2QT95R9 offers a repairable, cost-transparent alternative that keeps older YC2118 fleets operational. Each plunger and barrel set can be individually renewed; delivery valves are interchangeable without recalibrating the entire governor. For a workshop serving agricultural clients, stocking the 2QT61 means solving no-start complaints within the same day, bypassing the weeks-long delays associated with electronic pump overhauls. The absence of high-pressure sensors and actuator valves also reduces parasitic electrical loads – a tangible benefit for generator sets running off marginal battery systems.

Q1: Will the KANGDA 2QT61 require any programming or ECU matching after bolting it on?
A: Absolutely none. The BH2QT95R9 is purely mechanical. Fit it, time it to the flywheel marks, bleed the air, and the engine runs – no diagnostic scanner or software subscription involved.

Q2: How do I differentiate the 2QT61 from visually similar KANGDA pumps for other engines?
A: The 2QT61 order code and the specific BH2QT95R9 model stamp on the data plate are definitive. Additionally, the drive flange bolt pattern and camshaft end-play differ across variants, so always cross-check the YC2118 application before ordering.

Q3: What is the most frequent cause of premature wear on these pumps in field use?
A: Water and abrasive fines passing through worn fuel filters. The plunger and barrel clearance is measured in microns, so contaminated fuel scores the lapped surfaces, dropping rail pressure and causing misfire.

Q4: Can I swap just the head and rotor instead of buying the complete 2QT61 assembly?
A: This pump uses individual plunger and barrel sets, not a rotary head. We supply both the full 2QT61 and component repair kits. However, for a shop with minimal tooling, the complete assembly guarantees correct shimming and governor preload out of the box.

Q5: Is there a break-in procedure for a new BH2QT95R9 on a rebuilt YC2118?
A: Run the engine at low idle for 15 minutes, check for fuel leaks at the delivery pipe nuts, then gradually apply load. Avoid sustained full-throttle operation during the first hour to let the internal bearing surfaces settle without overheating.
