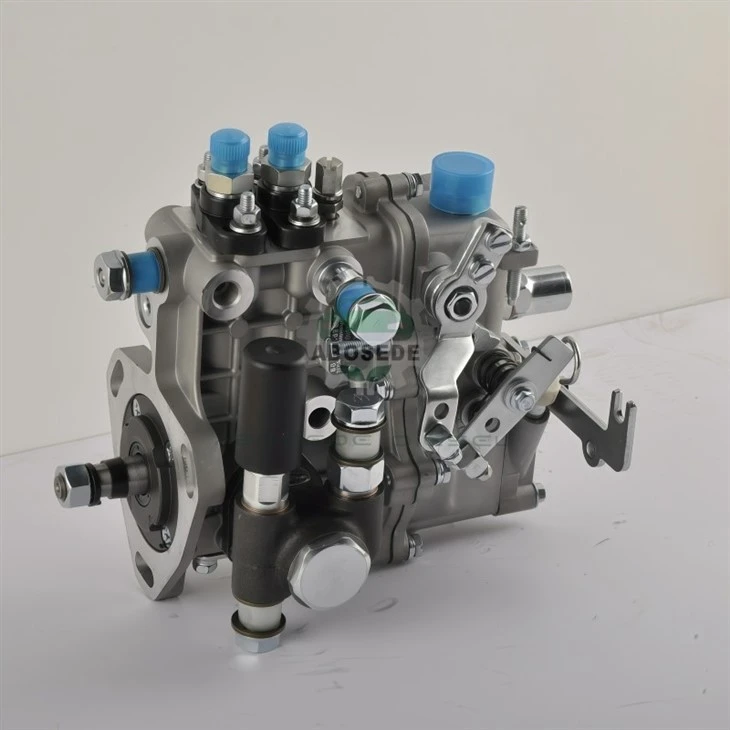

KANGDA 2QT49 BH2QT90R9 – Direct-Fit Pump For Jiangdong TY2105

The KANGDA 2QT49 fuel injection pump, carrying the model code BH2QT90R9, is precision-engineered as a mechanical fuel delivery solution for the Jiangdong TY2105 industrial diesel engine. This unit is calibrated for 1500 RPM operation and supports a nominal 16kW brake output, ensuring consistent fuel metering across two cylinders. Designed to replace worn or failing OEM assemblies, this plunger-type pump restores original engine response and reduces common driveability complaints such as rough idle, misfire under load, and excessive fuel consumption. It serves as a direct drop-in replacement for original equipment, eliminating the need for adapter plates or modifications to the mounting flange.

This pump features a 9mm plunger and barrel set, identified by the BH2QT90R9 suffix, which dictates the fuel displacement per stroke. The mechanical governor within the housing actively maintains the 1500 RPM setpoint, compensating for load fluctuations without electronic intervention. Delivery valve holders are matched to the injector line specifications of the TY2105 engine, preserving the correct injection timing and pressure rise rate. Fuel inlet and return ports follow the standard Jiangdong layout, allowing direct reconnection of existing fuel hoses. The mounting flange incorporates a locating dowel for repeatable positioning, reducing the likelihood of timing errors during reassembly. All internal clearances conform to original equipment tolerances, ensuring that the pump delivers the 16kW rated power without excessive internal leakage or premature wear.

This pump is exclusively listed for the Jiangdong TY2105 power unit, a widely deployed engine in agricultural tillers, stationary generator sets, and small-scale irrigation systems. It is not a universal pump; its cam lift profile and delivery characteristics are tailored specifically to the TY2105's combustion chamber design. Parts buyers and workshop technicians should verify the engine serial number prefix against Jiangdong production records to confirm fitment. The BH2QT90R9 remains the definitive reference number for this variant, distinguishing it from similar pumps used on other single- or twin-cylinder engines. Proper application eliminates the guesswork involved in retrofitting aftermarket pumps, directly addressing the frustration of mismatched fuel curves that lead to poor starting or hunting at constant throttle.

Workshops regularly encounter TY2105 engines with sluggish acceleration and persistent black smoke, conditions often traced to worn plunger clearance or sticking delivery valves. Replacing the pump with a KANGDA unit restores the original pressure-time injection characteristic, directly improving combustion efficiency and lowering particulate emissions. Unlike electronically controlled systems, this mechanical design is field-serviceable with basic tools, and repair kits for the hydraulic head remain available. Properly maintained, the BH2QT90R9 pump can deliver thousands of operational hours, making it a cost-effective alternative to complete engine replacement. For generator sets, stable frequency control returns once the governor linkage is correctly adjusted, ensuring the 1500 RPM threshold is held within acceptable droop limits.

Q1: Is the 2QT49 pump guaranteed to match the original Jiangdong mounting points?
A: Yes. The 2QT49 follows the identical flange pattern and shaft interface as the factory-fitted unit. No additional brackets or modifications are required for installation on a standard Jiangdong TY2105 block.

Q2: Can I use this pump if my engine is rated at a different horsepower?
A: This variant is optimized for the 16kW output at 1500 RPM. Attempting to overfuel for higher power will strain the governor and may lead to premature plunger wear or runaway conditions.

Q3: What is the most common installation mistake with this pump?
A: Failing to properly bleed the low-pressure circuit before starting. Air trapped in the feed line causes dry running, which quickly scores the 9mm plunger and ruins the hydraulic head within seconds.

Q4: How do I distinguish the BH2QT90R9 from visually similar pumps?
A: The BH2QT90R9 code is stamped on the pump nameplate. Check the delivery valve holder size and the governor arm configuration, as these differ across variants used on other engine brands.

Q5: Does the pump include replacement gaskets for installation?
A: The mounting O-ring and flange gasket are provided. However, the high-pressure line washers and return banjo seals should be ordered separately to guarantee a leak-proof assembly.

Q6: What maintenance schedule do you recommend for this pump?
A: Inspect the fuel filter every 250 hours and replace it annually. If the engine begins to lose power or struggles to maintain RPM, have the pump's hydraulic head tested for internal leakage before replacing other components.
