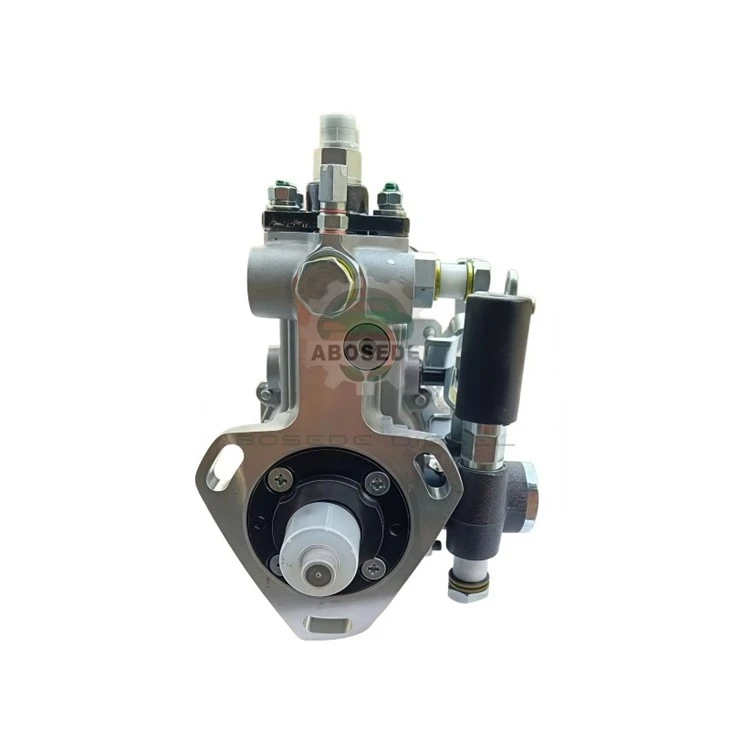

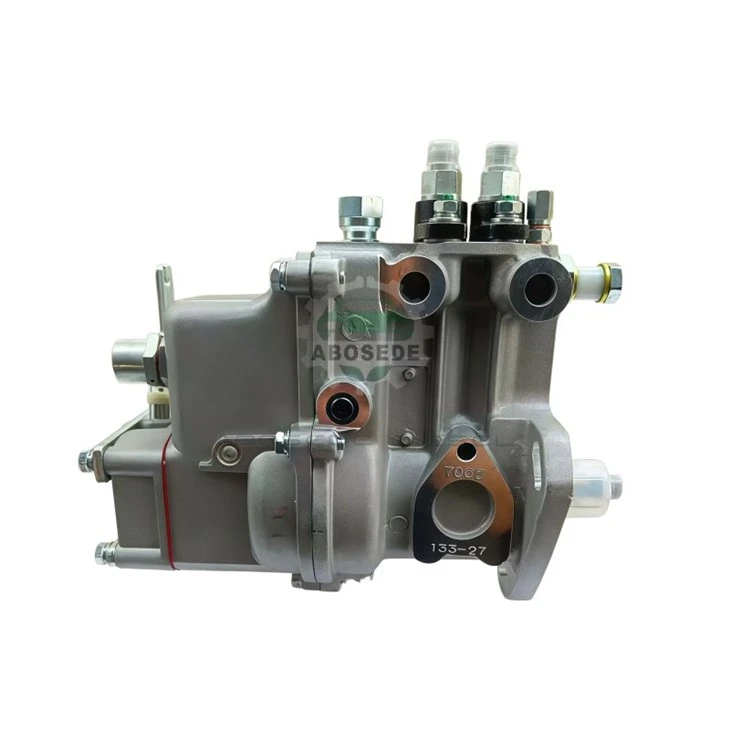

KANGDA 2QD103 – OEM Fuel Injection Pump For Huafeng 2105

The KANGDA 2QD103 fuel injection pump serves as the exact OEM replacement for the Huafeng 2105 two-cylinder diesel powerplant. This unit is factory-calibrated to deliver precise fuel metering at 1500 RPM supporting a 17kW continuous output. Every machining tolerance, plunger lift profile, and delivery valve setting mirrors the original equipment specification, ensuring that workshop technicians can install this component without chasing elusive performance issues. For service managers maintaining generator sets, agricultural tractors, or marine auxiliary engines, this pump eliminates the compromise between aftermarket pricing and genuine fitment integrity.

The 2QD103 features a two-plunger in-line layout with a mechanically governed control rack. Plunger diameter and helix angle are specific to the Huafeng 2105's combustion chamber design, producing a fuel delivery curve that matches the engine's 17kW power ceiling at its governed 1500 RPM operating point. The pump housing incorporates a flanged mounting interface with integrated dowel-pin locating, removing any ambiguity during block alignment. Delivery valve holder torque spec is factory-preset, and the unit ships with the drive shaft keyway indexed to the engine timing gear. The internal governor assembly uses a flyweight mechanism pre-tensioned to the Huafeng factory curve, meaning the 2QD103 holds steady throttle response from no-load to full-rated load without external adjustment.

This injection pump is exclusively dimensioned for the Huafeng 2105 naturally aspirated diesel, an engine family commonly encountered in stationary power heads, small balers, and water pumping stations across agricultural and industrial sites. While the 2105 block shares bore/stroke dimensions with certain other Chinese two-cylinder diesels, the 2QD103's internal camshaft lobe profile and fuel advance characteristics are not interchangeable with pumps labeled for Changchai or Weichai equivalents. Fitting this specific KANGDA unit preserves the factory injection timing map, directly influencing cold-start behavior and part-load fuel economy. Parts buyers supporting a fleet of Huafeng-powered equipment will find the 2QD103 consolidates inventory without sacrificing application coverage.

Before unwrapping the 2QD103, wipe the engine's gear housing mating surface with a lint-free cloth. Any accumulated debris that enters the pump's inlet port during fitting can score the plunger barrel within the first rotation. Align the pump's locating dowel with the gear housing recess; if resistance is felt before full seating, rotate the engine crankshaft slightly to re-index the drive gear mesh. Secure the flange nuts to the torque value printed on the Huafeng service data sheet, tightening in two stages from the center outward to avoid housing distortion. Once mounted, pressurize the low-pressure supply line using the hand primer until the bleed screw at the pump's outlet emits a steady fuel stream without air bubbles. Crank the engine with the fuel shut-off wire grounded until oil pressure builds, then restore the shut-off and start.

Q1: Can I install the 2QD103 on a Huafeng 2105 that previously ran a different pump model without changing the fuel lines?
A: Yes, the 2QD103 uses the same high-pressure line port spacing and banjo fittings as the original factory pump. However, always replace the line crush washers and torque the fittings to 25Nm to prevent weepage, which can introduce air into the system over time.

Q2: The engine starts fine but loses power when loaded beyond 12kW. Is the pump defective?
A: Unlikely. Verify that the throttle linkage allows the control rack to reach its full-travel stop. Also, inspect the fuel lift pump pressure – the 2QD103 needs at least 0.2 bar inlet pressure at 1500 RPM to maintain its internal compensation. Low transfer pressure mimics pump wear.

Q3: How does the KANGDA 2QD103 handle biodiesel blends up to B20?
A: The pump's seals and plunger materials are compatible with B20 fuel according to the manufacturer's test data. For blends above B20, we recommend a seal-conditioning additive and more frequent fuel filter changes, as higher viscosity can delay governor response.

Q4: What is the typical symptom pattern when the governor flyweights wear on this pump?
A: Erratic governed speed that worsens as engine temperature rises is the classic indicator. If the 2QD103's speed droop exceeds 8% from no-load to full-load (at 1500 RPM), the flyweight pivot pins likely show grooving – at which point, bench recalibration is required rather than further vehicle-side diagnostics.

Q5: Are individual repair kits (plunger, delivery valve, seals) available for the 2QD103, or is the whole pump the only option?
A: KANGDA offers a complete service kit (part number KDK-2105-RBK) for workshop rebuilding. However, for busy service bays, swapping the entire 2QD103 pump often proves more cost-effective when labor rates are factored in, especially when the engine is in a difficult-to-access installation.

Q6: Does the 2QD103 arrive with the fuel shut-off solenoid bracket pre-attached, or do we need to transfer it from the old pump?
A: The pump includes the solenoid bracket but not the solenoid itself. Transfer your existing 12V or 24V shut-off coil onto the new bracket using the supplied retaining screws. Confirm the plunger pulls fully in the energized state before starting.
