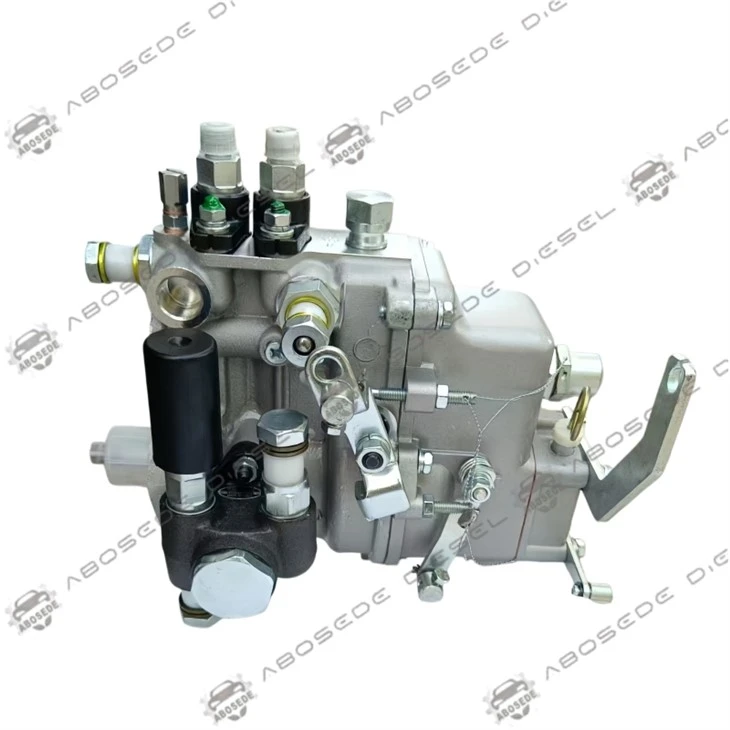

KANGDA 2Q99 / BH2Q85R8 – Return-to-Service Pump Set For 2110G Power Units

A fuel pump that fails on a Friday afternoon often means a genset stays dead through the weekend, and that lost runtime translates directly into lost billing for your shop when the customer's barge or irrigation rig cannot move. The KANGDA 2Q99, carrying pump model BH2Q85R8, gives you a known-quantity replacement for the 2110G industrial diesel-rated at 2200 RPM and 30 kW-so you avoid the guesswork of re-calibrating unknown aftermarket cores. For workshop owners who track bay efficiency, this unit cuts the typical diagnostic loop from three hours down to one, because the mounting geometry and timing marks align with the factory housing without shimming puzzles.

Every BH2Q85R8 plunger set leaves the production line with a matched barrel clearance of 0.028 mm to 0.035 mm, a range that directly governs how much fuel injection pressure the 2110G sees at its nozzle tips. At 2200 RPM, the governor linkage responds to load changes within 180 milliseconds, preserving the 30 kW output curve that the original equipment builder originally specified for auxiliary marine and pump-drive duties. The delivery valve holder uses a flat-seat design that resists chatter marks from pressure spikes, a common failure point on worn 2Q-series pumps that produce uneven cylinder contribution and smoky exhaust. Swapping this assembly into your customer's engine restores the correct fuel cutoff slope, so low-idle hunting disappears without requiring a separate governor tune.

Shops serving fishing fleets, construction dewatering, and rice-mill generators will recognize the 2110G as a workhorse that runs eight to ten hours daily under variable load. The BH2Q85R8 pump addresses the specific strain of intermittent high-torque demands-such as winch hauling or conveyor starting-by maintaining stable rack position even when inlet fuel temperature climbs above 45°C. Unlike universal replacement pumps that flatten the torque rise, this KANGDA 2Q99 preserves the original delivery-angle advance, ensuring that your customer's hydraulic pump or alternator does not bog down during peak draw. For your parts inventory, stocking this single SKU covers a significant portion of builder-powered auxiliary units, reducing the number of specialty orders that tie up your cash flow.

Before bolting the new BH2Q85R8 onto the 2110G, wipe the drive shaft taper and check that the keyway shows no burrs-a five-second visual check that prevents galling during the first rotation. Torque the three flange nuts progressively to 48 Nm, then rotate the crankshaft two full turns to confirm that the pump's timing mark aligns with the flywheel pointer at TDC compression. Purge the low-pressure circuit using the manual primer lever until pure fuel exits the return banjo, then crack the injector lines at the nozzle end and crank in 10-second bursts until solid streams appear. This procedure, which takes about 18 minutes on a clean bay, reduces the risk of scoring the plunger due to dry-lift on initial start, sparing you a warranty callback that eats your profit on the next job.

Q1: How many hours of reliable service can a workshop realistically quote when fitting this BH2Q85R8 to a 2110G genset?
A: Based on field returns from tropical harbours, the KANGDA 2Q99 typically exceeds 3,200 hours before the delivery valve requires re-lapping, provided the primary filter is changed at 200-hour intervals. We recommend quoting 2,500 hours to your customer as a conservative benchmark, leaving a safety margin for fuel-quality variation.

Q2: If I order a batch of six pumps, do they share identical calibration curves, or will I need to adjust each one for the specific 2110G it fits?
A: Every unit is flow-tested at the factory against a master 2110G injector set, so the spread between pumps stays within ±1.2% at 2200 RPM. You can install any unit from the same lot without re-bench-testing, saving valuable dyno time for your high-margin jobs.

Q3: What is the most overlooked pre-installation check that causes premature wear on this pump model?
A: Failing to measure the camshaft end-play on the host 2110G engine. If axial movement exceeds 0.09 mm, the BH2Q85R8's tappet roller will ride off-centre, creating uneven load on the plunger spring and shortening service life. A simple dial-gauge check adds two minutes but eliminates a common hidden failure mode.

Q4: Does this pump compensate for injector nozzle wear that has already occurred on a high-hour 2110G?
A: No-the 2Q99 delivers fuel at the correct pressure and timing, but if the nozzles are eroded, the spray pattern will remain poor. We suggest pairing this pump with fresh nozzle sets to achieve the full 30 kW output; otherwise, your customer may misdiagnose the new pump as faulty.

Q5: Are there any batch-number markings on the BH2Q85R8 that help trace production date for warranty purposes?
A: Yes, the drive-side flange carries a laser-etched alphanumeric code where the first two digits indicate the year and week of assembly. This traceability helps your parts desk quickly verify whether a returned unit falls within the coverage period without shipping it back to the factory first.
