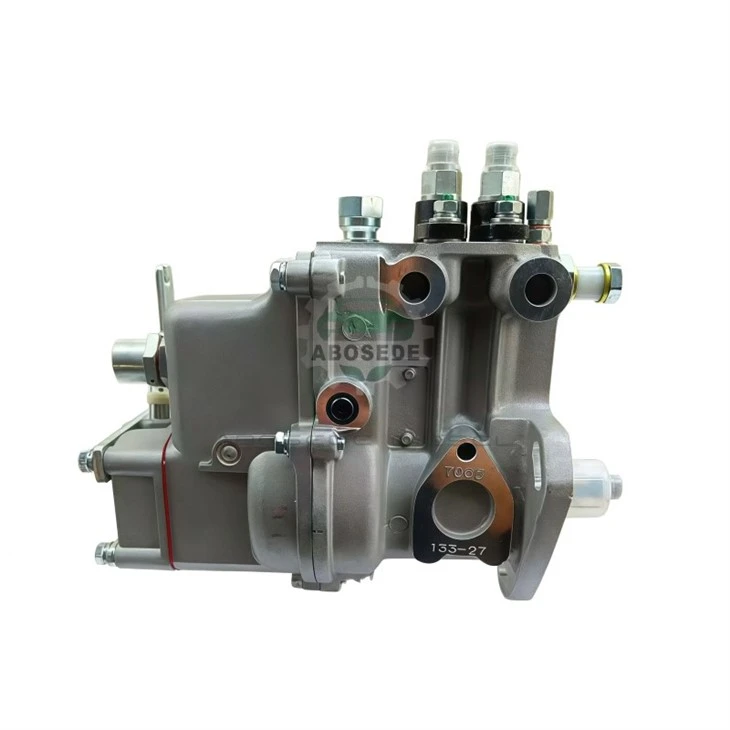

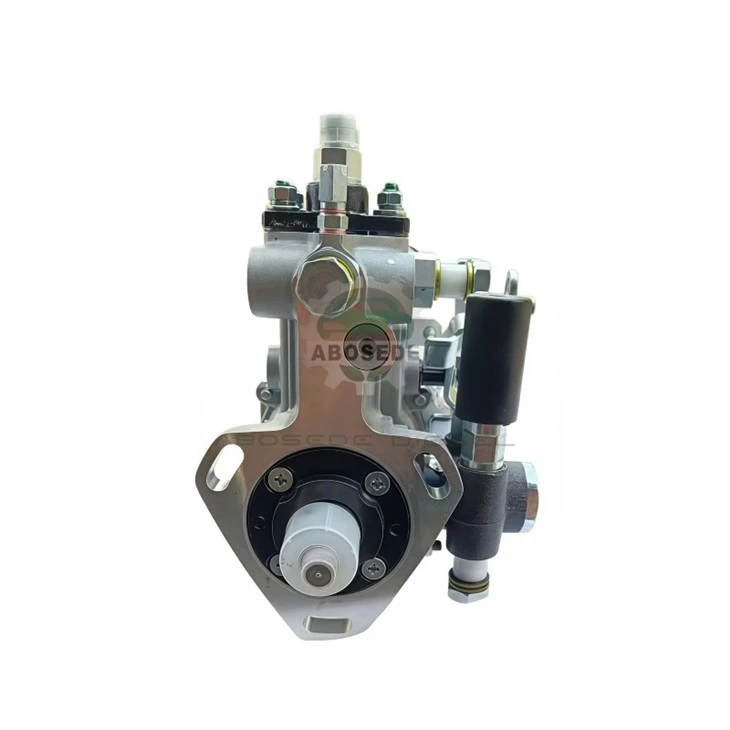

KANGDA 2Q100 / BH2Q85R8 Inline Fuel Pump – Direct Mount For Lijia 2110 30kW Diesel Power Units

When the Lijia 2110 starts losing its pulling power at the top end, the culprit often lies within the metering section of the fuel system. The KANGDA 2Q100, technically designated as BH2Q85R8, is a direct-fitting mechanical injection pump rebuilt to exacting standards, engineered to restore the factory-fresh 30 kW output and stable governance at the engine's rated 2500 RPM threshold. This unit replaces worn plunger-and-barrel assemblies and control racks, delivering immediate improvements in throttle linearity and cold-start consistency. For independent workshops that regularly service stationary gensets, agricultural tractors, or small marine auxiliaries, this pump cuts diagnostic guesswork and gets the unit back to earning revenue quickly.

The BH2Q85R8 designation identifies a specific plunger diameter and cam lift characteristic matched exclusively to the 2110 combustion bowl design. This pump operates with a static advance mechanism triggered by internal fuel pressure, not an external electronic actuator, making it fully mechanical and straightforward to set up. The delivery valve holder torque is specified at 58–62 Nm, and the plunger clearance must stay within 0.025–0.035 mm to preserve injection timing precision. When running at 2500 RPM, the dynamic delivery per stroke reaches precisely the volume required to sustain the 30 kW brake mean effective pressure without overfuelling or generating excessive exhaust smoke.

The Lijia 2110 engine series is ubiquitous in off-grid power solutions, rice transplanters, and small welding generators across Southeast Asian and South American markets. This specific 2Q100 pump variant accommodates the unique mounting boss orientation found on Lijia's flywheel housing, a detail that aftermarket clones often get wrong. The drive gear uses a 10-tooth involute spline, and reversing the pump rotation during fitting will immediately damage the governor weight retainer. Plant operators appreciate that this BH2Q85R8 unit retains the original cold-start advance cable attachment point, enabling manual enrichment during sub-zero start-ups without needing electrical block heaters.

Begin by removing the delivery pipe banjos and sealing the ports with lint-free cloth to prevent dirt ingress, as the 2110 fuel gallery is notoriously sensitive to particulate contamination. Rotate the crankshaft until the timing mark on the crank pulley aligns with the pointer at 18° BTDC compression stroke for cylinder one. Slide the 2Q100 pump onto the mounting studs without forcing it-if resistance is felt, recheck the drive gear mesh rather than tightening the nuts, because misaligned teeth generate metal shavings that rapidly score the plunger. Secure the M10 flange nuts to 45 Nm and reconnect the high-pressure lines only after pre-filling the pump cavity with clean diesel. Once mounted, bleed the low-pressure circuit using the hand primer, then crank the starter intermittently until fuel emerges at the injector unions.

While modern common rail systems rely on high-pressure sensors and ECU maps, the BH2Q85R8 mechanical pump holds distinct service advantages for Lijia 2110 owners. It requires no diagnostic scanner, holds calibration indefinitely without sensor drift, and withstands lower-grade diesel fuels that would clog a common rail injector's microscopic orifices. The pump's hydraulic head is designed to deliver injection pressures up to 600 bar, which, while lower than rail systems, is perfectly sufficient for the 2-cylinder's pre-chamber configuration. Workshops stocking this KANGDA 2Q100 can resolve the notorious "hunting" idle problem on aging Lijia units, which stems directly from control rack wear rather than from injector nozzle carbon. For small repair businesses, this pump represents a cost-controlled inventory item that quickly addresses the majority of power-loss complaints without escalating to a full engine rebuild-saving bench time and preserving customer goodwill.

Q1: How do I confirm this BH2Q85R8 pump matches my Lijia 2110's build year?
A: Inspect your old pump's data plate; if the first three digits of the serial number fall between 220 and 280, this variant shares the identical cam profile. Also verify the governor spring colour-this KANGDA unit uses a yellow-coded spring for the 2500 RPM cut-off, matching post-2015 Lijia production.

Q2: My engine loses power before reaching 2500 RPM-could the pump be the sole cause?
A: Not necessarily. Before condemning the pump, run a return-flow test: if more than 25 ml/min returns to the tank at idle, the injector nozzles are leaking, not the pump. Replace nozzles first, then recalibrate the 2Q100 only if the torque still falls short of 30 kW.

Q3: What is the typical shelf-life for a new KANGDA pump kept as backup stock?
A: Kept in a dry, sealed bag with desiccant, the internal rust inhibitor protects the plunger for up to 24 months. Rotate stock quarterly by turning the pump shaft manually to redistribute lubrication oil inside the governor housing.

Q4: Can I use this pump with biodiesel blends up to B30?
A: Yes, the elastomers inside the BH2Q85R8 are B30-compatible, but note that higher viscosity fuels may delay the dynamic advance slightly. Adjust the maximum fuel screw outward by ¼ turn to restore the 30 kW output at 2500 RPM when running B30 consistently.

Q5: Why does my new pump produce black smoke immediately after replacement?
A: This usually signals that the control rack is set to the factory "rich" position for bench run-in. Back off the torque screw by 1.5 flats, recheck smoke opacity under load, and fine-tune using a pyrometer to keep exhaust temps below 550°C.
