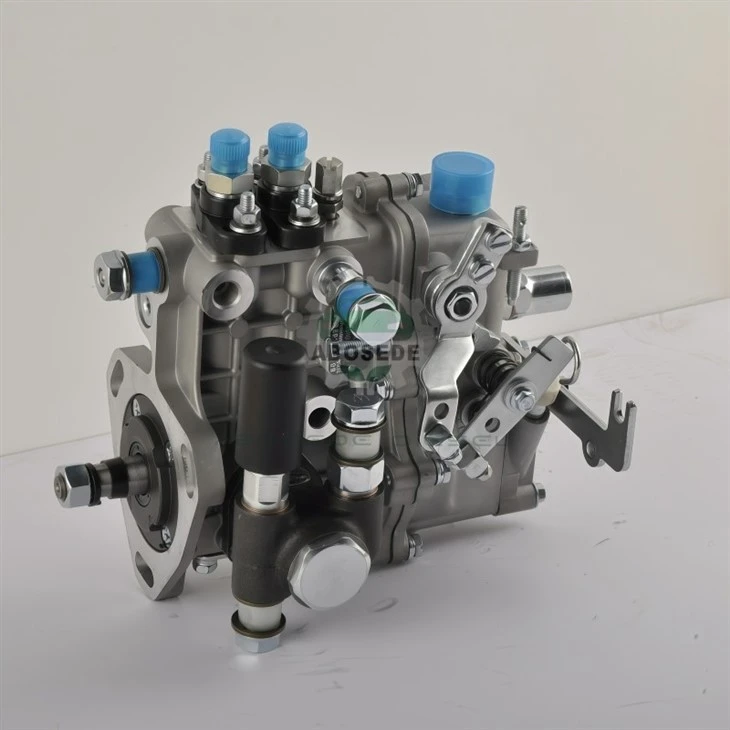

KANGDA 2QT65 / BH2QT95R9 – Direct-Mount Fuel Pump For Liuzhou Diesel 2118 Power Units

Engineered as a direct-fit replacement for the Liuzhou Diesel 2118 series, the KANGDA 2QT65 and its matched counterpart BH2QT95R9 constitute a mechanical in-line injection pump calibrated for 40 HP output at 2400 RPM. This assembly serves agricultural tractors, stationary generator sets, and mobile industrial equipment where dependable fuel metering remains non-negotiable. Manufactured to original equipment interface standards, the unit ensures drop-in compatibility while preserving the factory fuel delivery curve across varying load cycles.

Correct mounting begins with verifying the drive gear timing marks against the engine flywheel's top-dead-center reference. A single-tooth offset alters injection advance sufficiently to reduce usable torque and elevate exhaust gas temperatures. Before bolting the pump flange, technicians should inspect the coupling shaft for wear and confirm that the fuel feed pump delivers adequate supply pressure to the inlet port. All high-pressure connection nuts must be torqued to factory specifications using a calibrated wrench, avoiding both under-tightening which invites leakage and over-torquing which distorts the delivery valve holders. For workshops retrofitting older 2118 blocks, checking the governor linkage free play prevents erratic idling after startup.

Deployed across water pumping stations, road rollers, and auxiliary power trailers, this pump family handles the 2118 engine's naturally aspirated breathing characteristics. The 9.5 mm plunger diameter governs the fuel volume per stroke, while the mechanical governor modulates rack position to stabilize speed when loads shift suddenly. Rated operation at 2400 RPM corresponds to the engine's peak torque band, making this configuration suitable for continuous duty in ambient temperatures ranging from -15°C to 50°C. Machine owners appreciate that the pump's mounting footprint matches earlier 2QT variants, easing fleet standardisation without modifying bell housing or gear cover arrangements.

Service records from diesel repair facilities indicate that delivery valve seat corrosion and plunger barrel scoring account for the majority of performance complaints on high-hour 2118 units. Symptoms include sluggish acceleration, uneven firing between cylinders, and white haze during cold starts. Testing the pump on a calibrated EPS bench reveals pressure drop across the delivery valves before audible issues emerge. The roller tappet assembly should be examined for flat spots during overhaul, as these cause inconsistent plunger lift and cylinder-to-cylinder imbalance. Replacing the sealing washers under the high-pressure outlets remains a routine but critical step, since reused washers frequently produce micro-leaks that admit air into the system overnight.

For independent diesel service shops, rebuilding the BH2QT95R9 in-house yields better margins than exchanging for a remanufactured cartridge. The pump's modular construction permits individual replacement of the plunger and barrel set, delivery valve group, and governor spring pack without specialist tooling beyond a standard puller and torque driver. Access to genuine KANGDA service kits ensures that elastomers and shims match the original hardness specifications, preserving calibration stability through the next service interval. Shops serving regional agricultural fleets can reduce customer machine downtime to under four hours when the pump is rebuilt on-site, compared to weeks for off-site exchange programs. This approach also allows technicians to document pre- and post-overhaul delivery readings, providing transparent value confirmation to fleet operators who track total cost of ownership.

Q1: Will this BH2QT95R9 pump bolt directly onto a 2118 engine originally equipped with a 2QT65 unit, or does the front housing require modification?
A: Direct bolting is possible. The flange pattern, pilot diameter, and shaft spline specifications are identical between both versions. No housing machining or adapter plates are necessary for this substitution.

Q2: Which test bench adapters are needed to calibrate this pump after a plunger replacement?
A: Standard Bosch EPS 200 series adapters for 9.5 mm plunger pumps fit directly. Ensure the high-pressure line adapter matches the M14x1.5 outlet thread used on this model.

Q3: How does water contamination affect the delivery valve seats, and what visible signs indicate replacement is due?
A: Water promotes microscopic pitting on the valve seating faces. Visible indicators include fuel dribble from the return line and a drop in the pressure-holding test below 150 bar during bench evaluation.

Q4: Is the governor spring calibration adjustable to compensate for altitude operation above 2000 metres?
A: Yes, but this requires swapping the spring pack to a higher-rate version. The standard calibration is optimised for sea-level to 1500 metres. Consult the service manual for altitude-specific part numbers.

Q5: What is the recommended torque for the high-pressure outlet nuts to prevent thread galling?
A: Apply 40–45 Nm using a clean, lubricated thread. Exceeding 50 Nm risks deforming the valve holder body and altering the delivery valve lift characteristic permanently.

Q6: Can a worn plunger barrel be re-honed, or must the set always be replaced as a matched pair?
A: Replacement as a matched set is mandatory. Honing alters the running clearance beyond tolerances, causing internal fuel slippage that cannot be compensated by governor adjustment.
