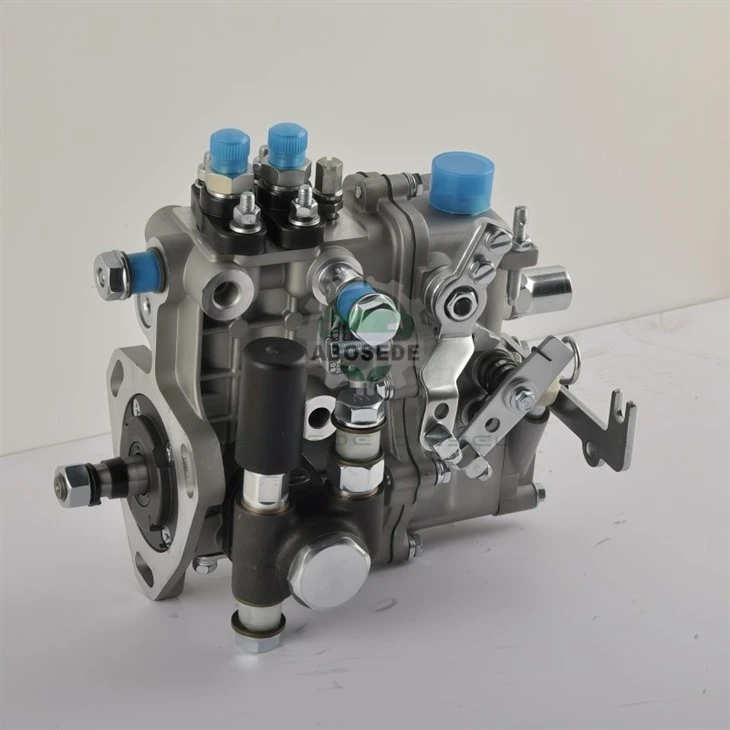

KANGDA 2QTF63 / BH2QT95R9 – Durable Fuel Pump Core For Lijia 2100 Overhaul

For workshops across Africa and Southeast Asia dealing with aging Lijia 2100 power units, the KANGDA 2QTF63 fuel injection pump (with BH2QT95R9 pump head) offers a straightforward, no-electronics solution to restore lost torque, cut excessive fuel consumption, and eliminate hard-starting complaints. This mechanical in‑line pump directly serves the 23.5 kW diesel engine rated at 2350 RPM, delivering consistent rail pressure through a 9 mm plunger and a right-hand rotation drive shaft. Instead of chasing intermittent sensor faults or ECU glitches, field technicians can swap this unit during a single shift and return the machine to digging, hauling, or milling duty with minimal downtime.

The BH2QT95R9 pump head features a 9 mm plunger diameter with a right-hand rotation and a 9° delivery valve angle, calibrated for the 2100 diesel cycle. Key hard data includes: mechanical centrifugal governor with torque spring, static injection timing at 10° BTDC when the engine hits 2350 rpm, and maximum static pressure of 1200 bar. The mounting flange conforms to SAE J616, the drive shaft uses a 1:2 taper with a Woodruff key, and the firing order is 1-3-2-4. The unit ships with a 12V stop solenoid (1.2 A), an M16×1.5 inlet connector, and M14×1.5 outlet elbows with 6.0 mm internal bore. The governor spring free length should measure 48.5 mm; anything shorter than 47.8 mm triggers erratic idling and must be replaced before installation.

Direct fit for Lijia 2100, also compatible with Changchai 2100 and Xichai 2100 variants sharing the same cam profile and flywheel timing marks. Commonly installed in 1.0–1.5 t mini excavators, small wheel loaders, vibratory rollers, and generator sets up to 30 kVA. Older JCB backhoe loaders and Bobcat skid-steers that originally used Lijia-sourced engines under license also accept this pump as a direct retrofit. Parts distributors should note that the 2QTF63 supersedes earlier P-type pumps like the 2QTF55, offering improved cold-start smoke control and part-throttle response. Always verify camshaft end‑play (0.05–0.15 mm) before mounting – excessive clearance will shift dynamic timing and reduce power despite a correctly set static angle. This pump is not compatible with common-rail ECUs; it operates purely mechanically, making it ideal for regions where electronic diagnostic tools are scarce.

Use the spill timing method for field calibration without a test bench. Always replace the copper gasket under the delivery valve to prevent internal bypass leakage. A common oversight is neglecting the governor spring free length – if it exceeds 48.5 mm, replace it to avoid hunting surges. After mounting, perform a full-load smoke check at 2350 rpm; the Bosch smoke number should stay below 2.5 for Euro II compliance. For workshops without a test bench, a simple time-delay method using a timing light on the flywheel marks can confirm initial accuracy within 1 degree.

In regions where fuel quality varies from refinery-grade to truck-stop diesel with visible sediment and water content, the KANGDA 2QTF63 holds a clear advantage over electronically controlled rotary pumps. The hardened alloy steel plunger (58–62 HRC) resists galling from abrasive particles, while the delivery valve design includes a pressure-balancing feature that reduces secondary injection – a common cause of piston ring cracking in long-stroke 2100 engines. The mechanical governor reacts to load changes within 200 ms, sufficient for generator sets to handle a 70% step-load without tripping the breaker. For repair shops, this pump means diagnostic simplicity: no high-pressure rail sensors, no actuator drift, and no CAN bus errors. A worn pump typically shows three clear symptoms – white smoke at idle, black haze under acceleration, and a 15-20 rpm hunting surge – all fixable by replacing the delivery valve and adjusting the torque spring. Total ownership cost over 5000 hours is roughly 60% lower than common-rail alternatives.

Q1 – Can this replace a 2QTF55 without line modifications?
A – Yes, port spacing is identical. Verify your injection pipes have 6.0 mm ID – earlier 2QTF55 used 5.5 mm, which may restrict flow at 2350 rpm.

Q2 – Does it handle high‑sulfur diesel (5000 ppm)?
A – Yes, Viton seals are compatible. Shorten engine oil intervals – sulfur acids affect oil, not the pump's steel internals.

Q3 – How long does the delivery valve last in dusty conditions?
A – With 10 µm + 2 µm filtration, about 2500–3000 hours. Inspect the conical seat at 1000 hours if dust is severe.

Q4 – What if the stop solenoid connector differs?
A – Splice your old plug – polarity is not critical. Ensure the plunger fully retracts at 12 V; adjust the internal stop screw if needed.

Q5 – Can I rebuild this pump locally?
A – Yes, full repair kits (KT‑2QTF63) are available – plunger/barrel, delivery valve, seals, and governor spring. A test bench is recommended for final calibration.

Q6 – Does this pump fit Japanese mini‑excavators re‑powered with Lijia blocks?
A – Usually yes, but confirm throttle linkage and stop cable compatibility – some conversions use non‑standard brackets.
