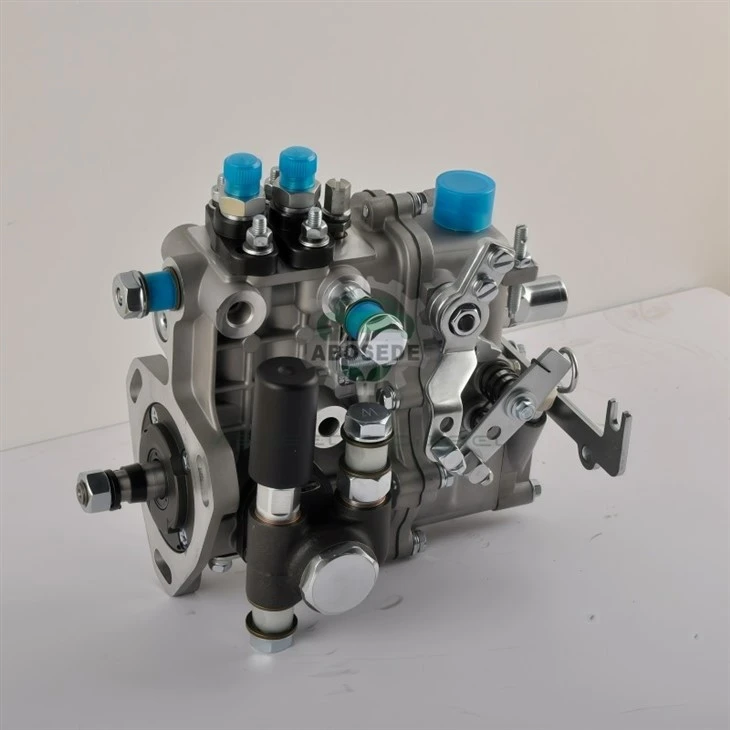

KANGDA 2Q23 / BH2Q80R8 Fuel Injection Pump – Precision Fit For 295DA Shantui Power Units

This KANGDA 2Q23 (ordering code) / BH2Q80R8 (pump model) fuel injection assembly stands as a workshop-favorite substitute for OEM channels, engineered explicitly for the 295DA diesel block turning at 1500 RPM within Shantui drivetrains. Service bays handling row-crop tractors and stationary PTO equipment will recognize this unit as a straightforward swap that restores factory-grade atomization without reprogramming or module adaptations.

Built around a distributor-style pumping chamber, the BH2Q80R8 routes pressurised fuel through a rotary distribution head to serve both cylinders in precise sequence. The 2Q23 variant carries a specific drive shaft eccentricity and mounting ear pattern that interlocks exclusively with the 295DA's timing gear housing. Its mechanical flyweight governor modulates fuel volume in direct response to crankshaft speed, holding steady idle behaviour even when auxiliary hydraulic loads kick in. Housing walls are cast from a high-nickel iron alloy, chosen to dampen harmonic vibrations transmitted from the engine block during sustained fieldwork. Internal lapping tolerances on the plunger-and-barrel pair stay inside 3 microns, securing repeatable shot-to-shot delivery that translates to stable exhaust temperatures and responsive throttle feel.

End-users operating Shantui-branded compact bulldozers, paddy tractors, and genset packages powered by the 295DA will find this pump's calibration curve directly overlays the original factory fuel map. The 1500 RPM governor setting is non-negotiable – it matches the torque peak of this two-cylinder architecture, ensuring maximum drawbar pull occurs exactly where the operator needs it during tillage or towing. Aftermarket distributors supporting Southeast Asian and African agricultural markets consistently stock this reference because it eliminates the guesswork of re-timing after a failed seal or scored rotor. Workshops should verify the engine's build code suffix before ordering; while visually similar to units for the 295T, the BH2Q80R8's delivery angle advances injection by 4 degrees to compensate for the DA variant's altered compression ratio. Swapping the wrong pump invites white smoke on cold starts and sluggish power rise under load – both signs of mistimed fuel entry.

Installation begins with locking the 295DA's crankshaft at TDC compression, then sliding the pump's drive flange onto the intermediate gear shaft until the alignment scribe on the pump body faces the timing pointer. Do not rely on visual guesswork – insert a dial indicator through the inspection port to confirm plunger lift reaches 0.8mm exactly at the specified degree mark. All delivery valve holders must be torqued in a cross pattern to 45 Nm; uneven clamping distorts the valve seat, inviting internal leakage that mimics a weak governor. Replace every crush washer on the inlet and return banjos, and flush the supply line with fresh diesel before connecting – this single step removes abrasive sediment that quickly wears the control sleeve. After bolting the assembly, crank the engine with fuel shut-off for 10 seconds to prime the gallery, then reattach the stop solenoid wire. A final dynamic check with a timing light on the No.1 cylinder confirms the strobe mark aligns within ±1 degree of the factory datum.

Although the BH2Q80R8 belongs to the mechanical pump family, its service logic shares common ground with modern common rail systems: both demand absolute filtration discipline and precise injector balancing. Unlike CR units that require dealer-level diagnostic scanners, this KANGDA pump can be overhauled using a standard calibration stand and a set of master plunger gauges – a practical advantage for rural workshops with limited electronic tooling. Replacing a worn pump head costs a fraction of a CR injector set, yet delivers comparable gains in cold-start behaviour and idle smoothness when the engine operates under 80% load. Shops that keep this reference on the shelf reduce customer downtime from weeks to hours, particularly during planting or harvesting windows. The pump's mechanical governor also tolerates moderate fuel viscosity swings, making it more forgiving of regional diesel quality variations than electronically mapped units. For fleet managers running mixed equipment, standardising on the 2Q23/BH2Q80R8 simplifies spare parts logistics and technician training across multiple Shantui-powered machines.

Q1: Does the BH2Q80R8 include the drive gear, or must we reuse the old one?
A: The pump ships without the drive gear. Transfer your existing gear after inspecting its spline condition – worn teeth warrant replacement to prevent timing drift.

Q2: Can this pump operate on biodiesel blends up to B20 without governor adjustments?
A: Yes, the mechanical governor compensates for B20's lower calorific value, though expect a slight power drop; no recalibration is mandated.

Q3: How do we distinguish a genuine KANGDA unit from a copy?
A: Genuine housings bear a laser-etched 2Q23 code adjacent to the mounting flange. Copies often omit this mark or display uneven font depth.

Q4: What is the typical service interval before the plunger needs replacement?
A: Under clean fuel conditions and regular filter changes, expect 4,000–5,000 operating hours. Water ingress shortens this to under 1,500 hours.

Q5: Is the 1500 RPM limit hard-coded, or can we raise it for PTO applications?
A: The governor flyweight assembly is preset; tampering voids performance guarantees and risks overspeed damage – we do not recommend modifying it.
