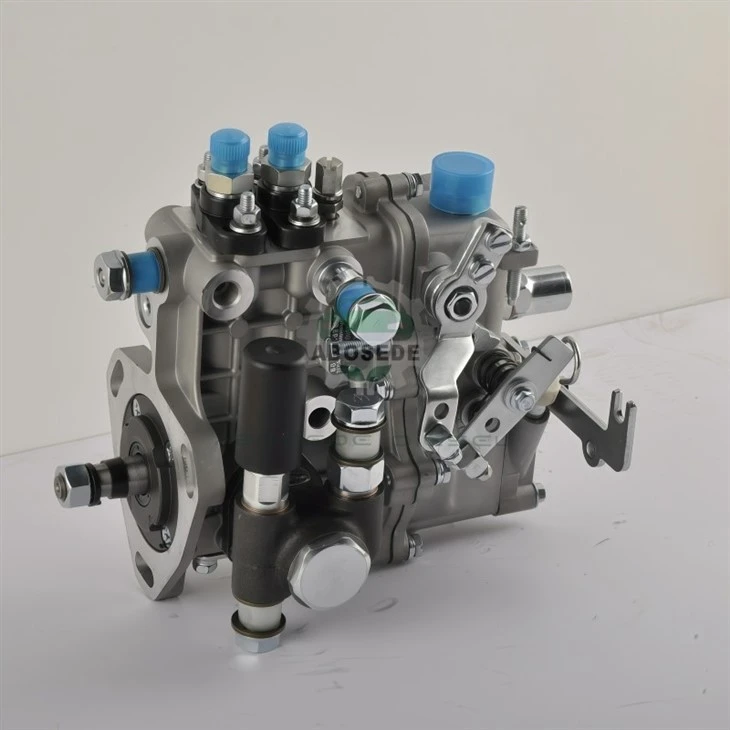

KANGDA 2QT41 / BH2QT85R9 – Direct-Fit Injection Pump For 2100A Power Units

The KANGDA 2QT41, tagged as BH2QT85R9, is a mechanical in-line fuel injection pump purpose-built to restore factory performance on Weifang Kaiwo 2100A diesel engines rated at 22kW @ 2200 RPM. This replacement unit retains the original jerk-type plunger architecture, delivering sharp fuel cutoff and stable idle characteristics that aftermarket clones often fail to replicate. For workshops dealing with aged agricultural prime movers, this pump bridges the gap between obsolete OEM stock and the need for dependable field-side serviceability.

The BH2QT85R9 designation pinpoints a 9mm plunger diameter paired with an 8.5mm effective stroke, calibrated to meter exact fuel volumes for the 2100A's combustion chamber design. The pump body carries a 4-bolt SAE flange with an 85mm drive gear center distance, ensuring drop-in alignment with the original timing gear train. Delivery valve holders accept 6mm O.D. high-pressure tubes, while the inlet thread uses M14x1.5 pitch – standard across most Chinese 2-cylinder stationary engines. Static injection timing is preset at 22° before TDC; this figure must be verified post-installation using the spill-port method, as even a 1° deviation causes noticeable power loss under load. The mechanical centrifugal governor features a fixed high-idle setting of 2400 RPM and a low-idle hold at 750 RPM, providing adequate speed regulation for generator sets and PTO-driven implements without hunting or surging.

This pump primarily serves Weifang Kaiwo 2100A – a workhorse engine found in small-bore tractors (25–35 HP), self-priming irrigation pumps, and single-phase generator frames exported heavily to Southeast Asian and West African markets. Interchangeability extends to Changchai 2L50 and certain Yuchai 2100 variants, but caution is advised: while the mounting geometry aligns, the delivery valve spring tension and governor weight profile differ slightly between brands. Installers should always compare the part number stamped on the old pump's data plate – if it reads 2QT41 or BH2QT85R9, this unit is a direct electrical-mechanical match.

Begin by locking the engine at TDC compression for cylinder #1 – do not rely on flywheel markings alone; remove the valve cover to confirm both rockers are loose. Extract the old pump without rotating the crankshaft, then inspect the drive gear's Woodruff key for shear or corner wear; a damaged key introduces timing scatter that new pump calibration cannot overcome. Slide the BH2QT85R9 into position, ensuring the key seats fully before tightening the central retaining nut to 28–32 Nm. The shim pack between pump flange and gear case dictates baseline timing – start with the 1.2mm total thickness removed from the old unit, then adjust in 0.1mm increments until the spill-port cutoff aligns with the 22° BTDC mark. After bolting down, crack open the delivery valve nuts and crank the starter until bubble-free fuel streams from each line. Re-torque to 18–20 Nm and bleed the high-pressure circuit. A final hot idle test (run the engine to 80°C) reveals any air ingress – watch for erratic governor response, which often points to a loose return-line banjo or deteriorated O-ring on the inlet elbow.

Despite the industry-wide shift toward common-rail electrification, the mechanical pump remains indispensable for maintaining legacy diesel fleets where ECU-dependent repairs are either cost-prohibitive or technically unsupported. The BH2QT85R9 offers three distinct commercial advantages: first, rebuild cost sits at roughly 40% of a new OEM pump; second, its tolerance for high-sulfur fuel and water carryover outlasts electronic injectors in harsh operating environments; third, field technicians can overhaul the governor and plunger assembly with basic hand tools – no laptop or diagnostic interface required. For parts distributors, stocking KANGDA's version reduces warranty claims because the plunger-barrel fit undergoes a high-pressure lapping process that minimizes internal leakage, a common failure point on budget alternatives.

Q1: Will this pump directly replace a unit marked "BH2QT85R7" on a Kaiwo 2100A?
A: Yes, the R9 supersedes R7 with updated delivery valve timing; however, you must advance the static timing by 2° to compensate for the changed spill-port geometry – use a 0.2mm thinner shim pack to achieve this.

Q2: Does the KANGDA 2QT41 include a new drive gear or only the bare pump?
A: The package contains the fully assembled pump with governor, but not the drive gear or Woodruff key – reuse the original gear if teeth are intact, or order a matching gear separately.

Q3: How do I differentiate between genuine KANGDA casting and counterfeit copies?
A: Authentic units have a laser-etched KANGDA logo beneath the inlet port, along with a batch code starting with "KD" – counterfeits often lack these markings or use a painted logo that scrapes off easily.

Q4: The engine starts fine cold but stalls when hot – could this pump be the culprit?
A: Unlikely – this symptom usually points to vapor lock or a failing lift pump. However, check the governor's thermal compensation spring – if missing or weakened, hot fuel density changes can cause idle droop.

Q5: What is your return policy for pumps that show manufacturing defects within 6 months?
A: We accept returns for material or workmanship faults – plunger seizure due to debris or water contamination is excluded. Contact our support for an RMA number and ship the unit back with the original packaging.
