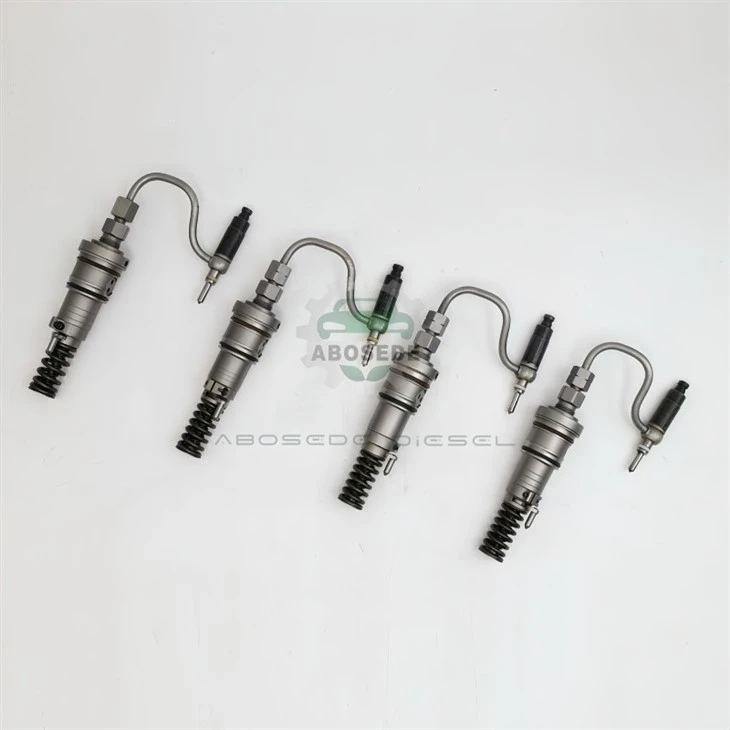

John Deere RE522567 Integrated Fuel System Assembly – Direct Fit For 4024T / 5030T PowerTech E Engines

The RE522567 is a remanufactured Integrated Fuel System (IFS) assembly purpose-built for the John Deere PowerTech E 4024T (2.4L) and 5030T (3.0L) engine families. This unit consolidates the high-pressure pump, common rail, and injector set into a single pre-tested module designed to restore factory fuel delivery performance across a wide fleet of utility tractors and compact industrial equipment. For workshops and parts suppliers serving agricultural and construction sectors in Africa and Southeast Asia, this part number eliminates the guesswork of diagnosing individual common rail failures by offering a complete "drop-in" replacement that addresses the entire high-pressure fuel circuit at once.

The RE522567 assembly is engineered for the PowerTech E platform, specifically covering 4024T and 5030T engine variants identified in technical documentation such as CTM301 and CTM101019 . The assembly supports engines with displacements of 2.44L and 3.05L respectively, both sharing an 86 mm bore and 105 mm stroke. This module is fully compatible with ULSD (Ultra-Low Sulfur Diesel) and integrates with EGR-equipped configurations as outlined in emissions documentation for engine codes including 4024TT001, 4024TT002, 5030TT001, and 5030TT002 . Direct fitment extends to tractor models 4120, 4320, 4520, 4720, 5225, 5325, and 5325N, as well as industrial equipment like CT322, CT332, 244J, and 304J units . The assembly meets the demanding pressure tolerances of diesel common rail systems operating in the 1600–2000 bar range, ensuring precise atomization under variable load conditions common in tropical climates.

Workshops across African and Southeast Asian markets frequently encounter fuel system degradation caused by high ambient temperatures, inconsistent fuel quality, and extended service intervals. The RE522567 directly addresses these conditions by providing a completely refurbished fuel delivery path that eliminates the cumulative wear of individual components. For fleet operators running 5225 and 5325 tractors in tillage applications, or 4120 and 4720 units in material handling, the IFS design reduces the risk of secondary failures that occur when replacing only the pump while leaving aged injectors in circuit. Generator sets powered by 4024T and 5030H derivatives also benefit from the stable fuel rail pressure this assembly maintains, which is critical for consistent frequency output in off-grid installations. The pre-calibrated nature of the unit ensures that combustion efficiency returns to factory parameters without the need for extensive on-site tuning, a significant advantage for remote repair operations lacking advanced diagnostic equipment.

Technicians fitting the RE522567 must observe strict cleanliness protocols to protect the new assembly from contamination. Prior to installation, flush the entire fuel supply and return circuits to remove debris, water, or microbial growth that may have accumulated in the tank and lines. The high-pressure fuel pipes between the common rail and injectors must not be reused if they have been previously installed; always replace them with new OEM-spec tubing to guarantee proper sealing and prevent leakage . When torquing the high-pressure pipe nuts, adhere to specifications of 42 N·m for used pipes and 31 N·m for new pipes when using the required SST tooling, and verify that the rail mounting bolts are set to 43 N·m . The common rail assembly should not be supported by holding the rail pressure sensor or pressure limiter during handling . After mechanical installation, the system requires priming to purge air from the high-pressure circuit before cranking to prevent dry starts that can score the pump plungers. A diagnostic scan is recommended to confirm that the ECU fuel trim values align with the replacement unit's flow characteristics, though the IFS design minimizes the calibration complexity compared to servicing injectors individually.

Opting for a remanufactured RE522567 offers a cost-effective alternative to dealership-priced new components while delivering tested reliability. The remanufacturing process involves complete disassembly, ultrasonic cleaning, measurement of all critical clearances, and replacement of wear items such as O-rings, springs, nozzles, and solenoids . Each finished assembly undergoes flow bench testing to verify shot-to-shot consistency, fuel delivery volume, and response timing across varying pulse widths and pressures. For parts distributors stocking this number, the unit provides a "one-box" solution that reduces inventory complexity and addresses the root causes of common rail failure-including contamination from water ingress, diesel bug, or DEF mis-fueling-without requiring in-house rebuild capabilities. The IFS approach also minimizes downtime for end-users, as the removal and replacement procedure is substantially faster than diagnosing and rebuilding individual pump and injector components, a crucial factor for commercial farming operations where equipment availability directly impacts productivity.

Q1: Can the RE522567 be installed on both 4024T and 5030T engines without modification?
A: Yes. The RE522567 is designed as a direct-fit assembly for both 2.4L and 3.0L PowerTech E engines. It shares the same mounting footprint and fuel line connections across the 4024T and 5030T families, provided the specific engine variant is listed in the compatibility scope.

Q2: Does this remanufactured IFS come pre-calibrated, or will my workshop need to code injectors?
A: The unit is assembled and flow-tested as a matched set. However, final integration with the engine ECU may require a diagnostic tool to confirm fuel trim values. The IFS design reduces the number of individual injector coding steps compared to servicing units separately.

Q3: How does the RE522567 perform with the high-sulfur diesel still found in some African markets?
A: The assembly is designed for ULSD as per OEM specifications. For regions where sulfur content remains elevated, we recommend reducing oil change intervals and using fuel additives that neutralize acid formation to protect the injector components and EGR system.

Q4: What is the typical lifespan of a remanufactured IFS in heavy tillage applications on a 5325 tractor?
A: Service life depends on fuel cleanliness and maintenance practices. With proper pre-filtration and regular filter changes (including the primary and secondary elements), the remanufactured unit typically delivers 4,000 to 6,000 operating hours before significant performance degradation occurs.

Q5: Are the high-pressure fuel lines included with the RE522567 assembly?
A: No. The assembly includes the pump, rail, and injectors. High-pressure pipes are separate items and we strongly advise purchasing new OEM tubes since reused lines may not achieve proper sealing torque and can lead to leaks or pressure loss.

Q6: How can a parts distributor confirm the RE522567 is the correct number for a customer's 4720 tractor?
A: Verify the tractor's serial number and engine designation plate. The 4720 uses either the 4024T or 5030T depending on production year. Cross-checking against the engine model code-such as 4024TF270, 4024TF281, or 5030TF270-ensures accurate ordering.
