Bosch CP3 Common Rail Fuel Pump Low Rail Pressure Diagnosis and Repair Guide

Overview of Bosch CP3 Fuel Pump Pressure Failure

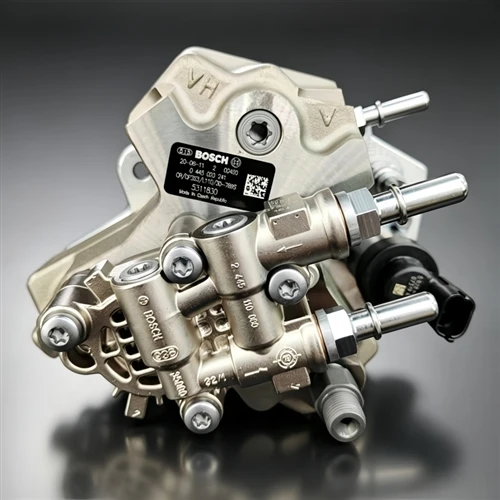

Bosch CP3 series high-pressure fuel pumps are widely used in diesel common rail fuel systems because of their reliable pressure supply and stable performance. Models such as Bosch 0445020241 are typical CP3 high-pressure pumps used in commercial vehicles, industrial engines, and diesel equipment. In a common rail system, the high-pressure pump is responsible for generating and maintaining fuel pressure in the rail, while the ECU controls the injection process according to engine operating conditions. When the pump cannot provide sufficient pressure, the engine may experience power loss, difficult starting, poor acceleration, and fuel pressure-related fault codes.

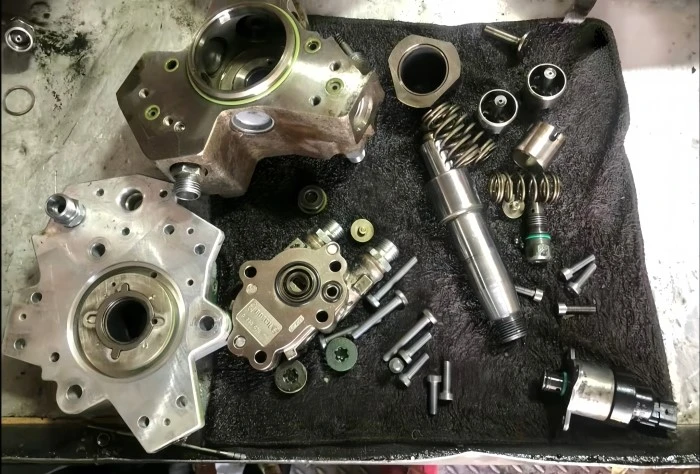

Bosch CP3 High Pressure Fuel Pump Exploded Parts Diagram

Main Causes of Bosch CP3 Low Rail Pressure

The most common reason for insufficient rail pressure from a Bosch CP3 fuel pump is internal wear caused by long-term operation. Precision components inside the pump, including the plunger, barrel, and pumping elements, work under extremely high pressure and depend on clean diesel fuel for lubrication. After extended use, increased clearance between these components can cause excessive internal leakage, reducing the pump's ability to generate the required pressure, especially during acceleration or high-load operation.

Fuel contamination is another important factor affecting CP3 pump performance. Water, dust, and impurities in diesel fuel can accelerate wear of internal components and reduce pump efficiency. In addition, problems with fuel supply before the high-pressure pump, such as a blocked fuel filter, insufficient low-pressure supply, or air entering the fuel system, can also prevent the pump from building normal rail pressure.

Common Symptoms of Insufficient Rail Pressure

When a Bosch CP3 fuel pump such as 0445020241 cannot build enough common rail pressure, customers usually experience several symptoms:

Engine power reduction

Slow acceleration

Difficult starting

Engine hesitation under load

Reduced fuel efficiency

Fuel pressure-related fault codes

A typical diagnostic situation is that the ECU requests a specific rail pressure, but the actual measured pressure remains below the target value. However, low rail pressure does not always mean the high-pressure pump itself is damaged. Injectors with excessive return flow, faulty pressure control valves, or fuel supply problems may create similar symptoms.

Diagnosis and Repair Process

Before replacing a Bosch CP3 high-pressure fuel pump, technicians should perform a complete fuel system inspection. The first step is checking the target rail pressure and actual rail pressure with a professional diagnostic tool. If the actual pressure is consistently lower than the required value, further testing should be performed.

The fuel supply system should be checked, including the fuel filter condition, low-pressure fuel supply, fuel lines, and possible air leakage. A restricted fuel supply can prevent the CP3 pump from receiving enough fuel, causing low-pressure problems even when the pump is not completely failed.

The injector system should also be inspected through an injector return flow test. Excessive injector leakage can reduce available rail pressure and cause symptoms similar to a weak high-pressure pump. If the injector return quantity is within normal limits but rail pressure remains low, the Bosch CP3 pump should be further tested for internal wear, output volume, and pressure regulation performance.

Repair Solutions for Bosch CP3 Fuel Pump Failure

The repair solution depends on the actual failure cause. If the problem is caused by fuel contamination or blocked fuel supply components, the repair should include replacing the fuel filter, cleaning the fuel system, and correcting the fuel supply problem.

If internal wear is confirmed in the Bosch CP3 pump, professional remanufacturing or replacement of the complete high-pressure fuel pump may be required. When severe wear or contamination occurs, technicians should also inspect related components, including the fuel tank, fuel lines, common rail, and injectors, because damaged fuel system components can cause repeated failures.

For pressure control problems, the fuel metering valve and pressure control valve should also be checked. These components directly regulate fuel quantity and rail pressure, and their failure may prevent the system from maintaining stable pressure.

Maintenance Recommendations

To improve the service life of Bosch CP3 common rail fuel pumps, customers should:

Use clean and high-quality diesel fuel;

Replace fuel filters regularly;

Avoid contaminated fuel sources;

Check injector performance during maintenance;

Confirm correct fuel pump specifications before replacement.

Proper maintenance helps maintain stable rail pressure, accurate fuel injection, improved fuel economy, and reliable diesel engine performance.

Conclusion

Insufficient rail pressure from Bosch CP3 common rail fuel pumps is usually related to internal wear, fuel contamination, insufficient fuel supply, injector leakage, or pressure control problems. Accurate diagnosis is essential because replacing the fuel pump without identifying the actual cause may result in repeated repairs.

For Bosch CP3 pumps such as 0445020241, technicians should follow a complete troubleshooting process, including rail pressure testing, fuel supply inspection, injector return flow testing, and fuel system cleaning. Correct diagnosis and proper maintenance can ensure stable fuel pressure, efficient combustion, and longer service life of diesel fuel injection systems.
