CP4 High‑Pressure Pump Complete Repair Guide: Permanent Fix for Common Noises, Pressure Drop & Power Loss

The Bosch CP4 (CP4.2) high‑pressure common‑rail pump,including mainstream aftermarket and OEM part numbers 0460424329,0445010868,0445020530, is one of the most prevalent and costly failure points on modern 6.7L PowerStroke, LML/L5P Duramax, and 6.7L Cummins heavy‑duty pickups and light commercial diesel trucks. A pervasive mistake among independent repair shops is performing only a basic pump replacement while ignoring systemic metal contamination, which leads to repeat failures and comeback repairs within hundreds of miles. This article synthesizes real‑world aftermarket service cases, outlines definitive failure symptoms, deconstructs OEM design vulnerabilities, and delivers a complete standardized repair workflow, preventive upgrade solutions, and post‑installation calibration procedures to eliminate secondary damage and achieve permanent repairs.

Field‑confirmed CP4 failures primarily present in three core categories: abnormal mechanical noise, intermittent fuel pressure drop, and load‑dependent power deficiency. The most frequently logged diagnostic trouble codes (DTCs) include P0087 (Fuel Rail Pressure Too Low), P0093 (Fuel System Leak Detected), and P2291 (Fuel Control Actuator Performance Malfunction).

1.1 Abnormal Mechanical Noise

A rhythmic ticking or knocking sound emanates from the high‑pressure pump housing, becoming significantly louder under increased engine load and higher RPM. This auditory signature is an early warning of deteriorating roller‑tappet and cam‑lobe contact surfaces inside the CP4 pump. Once the noise appears, micro metallic debris has already entered the fuel circuit. Continued vehicle operation accelerates full‑system contamination and irreversible component damage.

1.2 Fuel Pressure Drop & System Pressure Release Faults

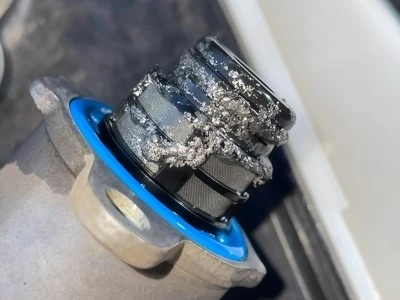

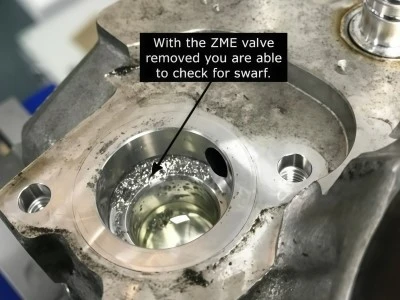

Symptoms include intermittent rail pressure decay, hot start difficulty, extended cranking cycles, and sudden engine stall under heavy towing or climbing loads. Visual inspection of the fuel filter bowl and filter media reveals fine metallic glitter and shavings, the most definitive physical confirmation of internal CP4 mechanical disintegration.

1.3 Insufficient Power & Accelerator Hesitation

The CP4 platform was originally engineered for European market diesel with factory‑mandated lubricity additives. North American Ultra‑Low‑Sulfur Diesel (ULSD) removes naturally occurring sulfur‑based lubricating compounds without mandatory aftermarket lubricity compensation, creating a fundamental mismatch between OEM pump design and regional fuel specifications. This core incompatibility causes chronic field failures.

2.1 Inherent Roller‑Tappet Design Vulnerability

The CP4 (corresponding OEM part numbers: 0460424329,0445010868,0445020530)utilizes compact fuel‑lubricated roller tappets driven by precision cam lobes, relying entirely on passing diesel fuel to maintain hydrodynamic lubrication. Low‑lubricity ULSD breaks down the protective fuel film, resulting in boundary lubrication failure, surface scuffing, material peeling, and continuous metal particle generation. Older asymmetric cam‑lobe CP4 units carry a substantially higher failure rate than revised symmetric cam‑lobe iterations.

2.2 Catastrophic Secondary Contamination Chain Reaction

Debris released from internal pump wear is pressurized and circulated throughout the entire fuel system, scratching ultra‑precision injector nozzles, control valves, fuel rails, and high‑pressure lines. Even brand‑new replacement pumps suffer rapid premature failure due to residual micro‑contamination left in the system, accounting for the vast majority of post‑repair comebacks.

2.3 Field Accelerating Failure Factors

Substandard fuel quality and water intrusion within the fuel tank assembly

Extended fuel filter service intervals beyond OEM specifications

Continuous heavy towing, fleet duty, and frequent high‑RPM/high‑load operation

Absence of routine fuel lubricity additive treatment during refueling

Shop Field Data Statistic: 70% of CP4 repair comebacks stem from incomplete system decontamination, not defective replacement pumps.



3.3 Controlled Disassembly & Port Sealing

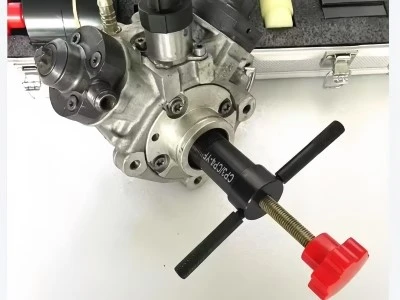

Remove the high‑pressure pump, injectors, fuel rail, and high‑pressure fuel lines; drop and isolate the fuel tank. Seal all open system ports immediately to prevent secondary environmental contamination during service.

3.4 Component Remediation: Flush or Replace

Fuel Rail, High‑Pressure Lines & Injectors: Direct replacement is strongly recommended. Ultrasonic cleaning cannot eliminate micro metallic particles trapped within micron‑precision clearances.

Fuel Tank & Low‑Pressure Hoses: Perform multi‑stage deep flushing. Replace components if heavy sediment and embedded contamination are present.

3.5 New Pump Installation or CP3 Conversion

Two industry‑standard repair paths for professional workshops:

Option A: OEM‑Spec CP4 Replacement. Restores factory operation but retains original design weaknesses. Common replacement OEM part numbers cover 0460424329,0445010868,0445020530. Mandatory preventive upgrades are required post‑installation to avoid recurrence.

Option B: CP4 to CP3 Conversion Kit. The industry‑preferred long‑term solution. The CP3 radial plunger architecture delivers superior tolerance for low‑lubricity ULSD, eliminates roller‑tappet failure modes, and drastically reduces future breakdown risk.

3.6 Final Assembly, Priming & Post‑Installation Calibration

Install brand‑new OEM‑spec fuel filter and water separator assembly.

Execute strict OEM fuel system priming procedures. Dry running a new pump causes instantaneous internal failure.

Clear all historical DTCs and complete FCA/MPROP zero‑learn and fuel rail pressure sensor adaptation using a professional diesel scan tool.

For CP3 conversions, follow manufacturer ECU parameter tuning guidelines precisely.

Perform multi‑condition road testing, monitoring live rail pressure data at idle, partial load, and full towing load to confirm stable operation and zero fault recurrence.

Proactive layered upgrades for asymptomatic vehicles eliminate the risk of catastrophic system failure at a fraction of the cost of full system overhaul

4.3 Consistent Fuel Lubricity Additive Treatment

Apply tested, HFRR‑verified diesel lubricity additives at every refueling. Premium formulations such as Stanadyne Performance Formula and Hot Shot's Secret Diesel Extreme restore critical fuel lubrication properties removed during ULSD refining. Cetane boosters do not substitute for lubricity additives.

4.4 Optimized Shop Maintenance Protocols

Inspect filter bowls for metallic glitter during every 10,000–15,000‑mile service interval. Early debris detection enables pre‑emptive repairs before total pump disintegration occurs.

Nearly all secondary CP4 failures stem from improper installation and skipped adaptation procedures, not faulty replacement components.

5.1 Common Technician Errors

Replacing only the pump while reusing contaminated original injectors, rails, and high‑pressure lines

Skipping formal fuel system priming, resulting in dry pump operation during cranking

Neglecting FCA zero‑reset and rail pressure adaptation, causing unstable pressure control and premature wear

Using generic fuel additives instead of certified lubricity‑boosting formulations

5.2 Mandatory Post‑Installation Workflow

Complete OEM‑specified fuel system priming; never rely solely on repeated cranking for air purging

Clear all DTCs and perform professional‑level FCA/MPROP adaptation and relearn

Verify idle rail pressure stability and transient pressure response during acceleration via live data

Load test road conditions to confirm no recurrence of P0087/P0093 fault codes

Advise owners to maintain consistent lubricity additive use and shortened filter inspection intervals for the first 5,000 miles post‑repair

Vehicle Condition	Recommended Professional Repair Solution
Early pump wear, trace metal in filter, no injector damage	CP4 pump replacement + full fuel system flush + disaster prevention bypass kit installation + upgraded filtration
Severe metal contamination, injector debris present	Full replacement of pump, injectors, rails, and high‑pressure lines; tank flush or replacement; permanent CP3 conversion for long‑term reliability
Preventive maintenance, zero failure symptoms	2 μm filtration upgrade + disaster prevention kit + routine lubricity additive treatment

CP4 failure is not random mechanical failure but a predictable reliability conflict between European‑centric OEM pump design and North American ULSD fuel specifications. For professional diesel repair shops, mastering full‑system contamination dynamics is essential to eliminating comebacks, setting accurate customer expectations, and delivering premium long‑term repairs. Proactive preventive hardware upgrades consistently deliver superior cost efficiency compared to remediating catastrophic grenade‑style fuel system failures.

Shop Best Practice Tip: Document and present failed CP4 pump and contaminated injector imagery during customer quoting to justify full‑system repair scopes and eliminate client resistance to comprehensive service.
