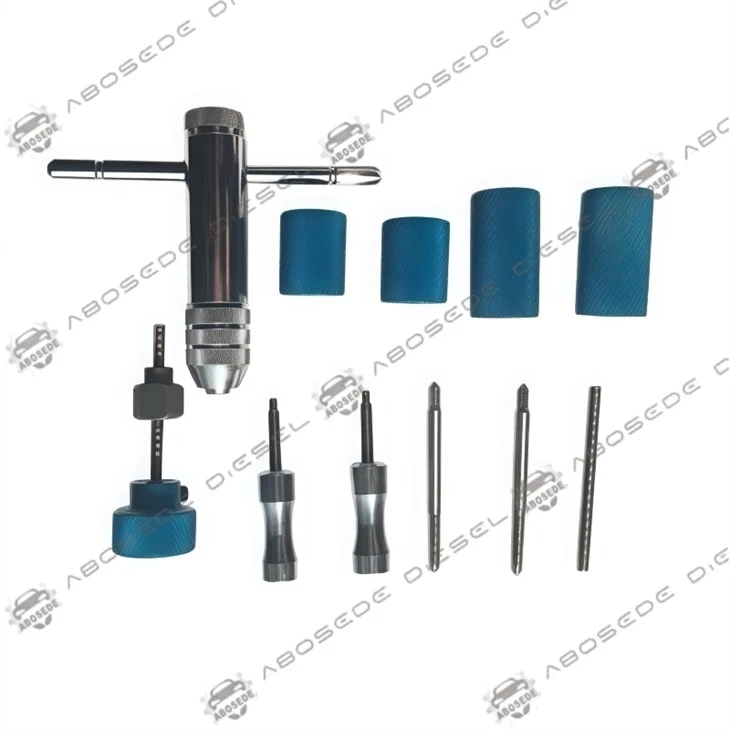

Denso Injector Filter Extraction & Seating Kit

Within Denso common rail fuel delivery architectures, the inlet filter stands as the first line of defense against particulate intrusion. This service kit has been configured to address the specific geometric constraints of injector inlet filter replacement across HP0, HP3, and HP4 generation systems. Positioned directly upstream of the plunger and nozzle assemblies, these screens capture contaminants down to 3 to 5 microns-any compromise in filter condition translates immediately to irregular injection events, degraded atomization quality, and eventual needle binding. The implements supplied in this set allow workshops to perform filter exchange without inducing bore damage or introducing secondary debris into the fuel path, a risk inherent to improvised extraction methods.

Each component within this set originates from induction-hardened steel, with working tips profiled to match the filter basket geometry without distorting the rim or encroaching on the sealing lands. Three primary tools constitute the assortment: a curved extraction hook for engaging the filter periphery, a helical puller for dislodging stubbornly seated filters, and a sleeve-type placement guide that constrains the replacement filter to a coaxial seating trajectory. The absence of such guidance during installation frequently results in asymmetric compression of the filter seal, introducing a direct path for unfiltered fuel to bypassthe element. All surfaces receive a fuel-resistant passivation treatment, safeguarding against the solvent action of diesel and the humidity encountered in workshop storage. Laser-etched size markings appear on each tool shank, enabling swift selection during high-throughput service rotations. Cross-compatibility extends to TANTESTO and CRIN fixture platforms.

Service bays handling Denso-equipped powertrains will find this kit applicable across a diverse cross-section of vehicle categories and engine displacements. The tooling suits top-feed injector bodies incorporating the extended pintle nose cap arrangement. Application coverage includes:

Pickup trucks – Toyota Hilux, Isuzu D-Max, Ford Ranger, Mazda BT-50

Medium-duty commercial – Hino 300 Series, Fuso Canter, Isuzu Elf

Heavy transport – UD Quon, Hino 500/700, Fuso Super Great

Off-road machinery – Kubota M-Series, Yanmar Vio, Hitachi ZX, Komatsu PC

Agri equipment – John Deere 6R/8R, Case IH Magnum, New Holland T7 (Denso-fueled variants)

The extraction geometry aligns specifically with 195500-series injectors, referencing OE catalog numbers 093152-0320, 195500-1140, and 195500-2180. For remanufacturing operations processing both European and Asian core inventories, this single set reduces reliance on multiple platform-specific fixtures.

Before any filter manipulation commences, system pressure must be bled from the common rail and the injector decoupled from the supply line. Engaging the hooked extractor demands a collinear withdrawal path-off-axis force application risks broaching the filter bore, which degrades the seal surface for the replacement component. Following extraction, the sleeve guide is placed over the injector inlet, and the fresh filter is advanced using uniform finger pressure. Impact tools or mallet strikes are expressly prohibited. The operator then verifies the filter flange alignment: it should register flush with the injector body shoulder, with no visible cant. A mis-seated filter invariably creates a leakage circuit, allowing abrasive particles to reach the plunger and nozzle, undermining service life. Upon completion, a low-pressure leak-off check at base idle confirms the integrity of the installation before the injector is returned to active service.

The economic rationale for this service kit extends far beyond extraction convenience-it directly influences the viability of preventive injector maintenance. A blocked inlet screen frequently signals fuel degradation or tank-side contamination; allowing this condition to persist accelerates plunger scuffing and orifice erosion, fault patterns that typically mandate complete injector exchange at significant cost. Offering filter exchange as an independent service procedure creates an accessible intervention point for customers, postponing major hardware replacement and lowering total ownership costs. For wholesale distributors and core remanufacturers, disciplined filter replacement using certified tooling provides auditable process documentation, supporting warranty validation and reducing core rejection rates. The CR-IFT200 addresses the fundamental origins of fuel supply disruption and cylinder-to-cylinder imbalance, contributing directly to improvements in thermal efficiency and measurable reductions in particulate emission across the duty cycle.

Q1: What distinguishes these implements from standard pick tools used in general diesel repair?
A: Standard picks lack the positive engagement features of this set-they slip, deform the filter rim, and push debris inward. These tools are profiled to extract the filter as an intact assembly, retaining all captured material.

Q2: Will this set service injectors from the Denso HP5 generation?
A: HP5 injectors employ a different inlet geometry and seal arrangement. This kit is dimensioned for HP0, HP3, and HP4 platforms. A separate offering addresses HP5 and later architectures.

Q3: What is the typical failure mode when the insertion guide is omitted?
A: The filter tilts during seating, compressing the sealing element unevenly. This creates a preferential bypass path, and the injector will draw unfiltered fuel from the moment of start-up, rapidly wearing internal clearances.

Q4: How does this tooling affect warranty outcomes on remanufactured injectors?
A: Many warranty inspection protocols require photographic evidence of the installation process. Using this kit with its guide ensures consistent, verifiable seating-significantly reducing chargeback exposure on returned cores.

Q5: What cleaning protocol extends the life of the extraction hook?
A: Wipe the hook tip with a lint-free cloth after each extraction and occasionally degrease with mineral spirits to remove fuel residue. The steel maintains its profile through thousands of cycles when handled with care.

Q6: Are there specific torque specifications for the injector hold-down bolts that affect filter service frequency?
A: Not directly-but over-torqued hold-down bolts distort the injector body, which can alter the filter bore concentricity and complicate extraction. Always observe OEM bolt torque values before approaching the filter area.
