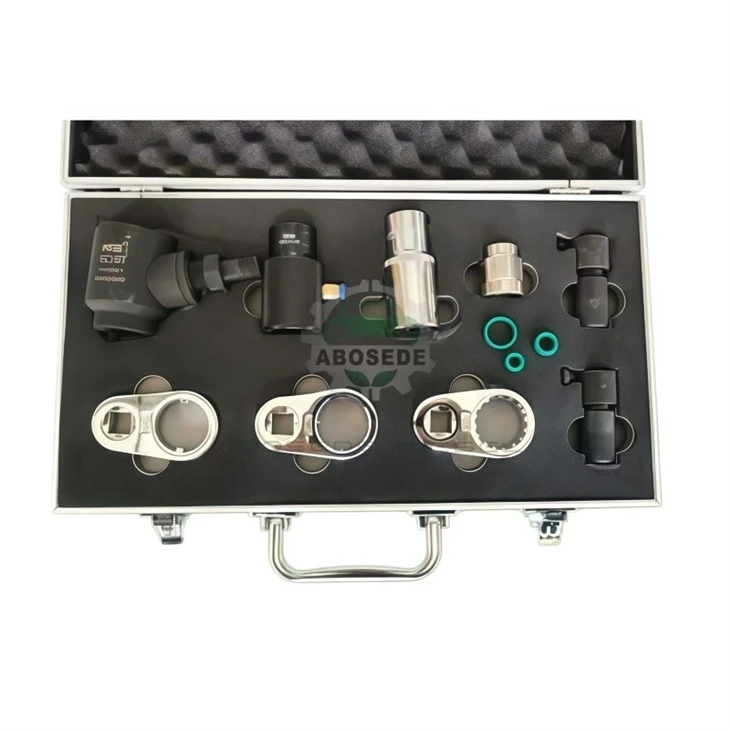

Professional Cummins Injector Service Tool Kit – Heavy-Duty Extraction, Sleeve Installation & Seating System

In the demanding environment of heavy-duty diesel overhaul, the correct application of specialized tooling separates efficient, repeatable repairs from costly cylinder head damage and premature injector failure. This comprehensive service tool kit addresses the full lifecycle of Cummins fuel injector maintenance-from the controlled extraction of carbon-seized bodies to the precision installation of new injector sleeves and final seating of replacement units. Engineered to replicate factory service procedures, this system enables workshops to perform complete fuel system overhauls without outsourcing specialized machining operations, significantly reducing turnaround time and enhancing rebuild quality across the full spectrum of Cummins engine platforms.

Manufactured from heat-treated chrome-molybdenum steel with a black oxide finish for corrosion resistance, all components in this service kit are rated for the high impact and torsional loads encountered during injector extraction. The core puller assembly features a reversible two-jaw configuration with hardened contact surfaces that securely engage the injector body's retaining groove, distributing extraction force uniformly to prevent deformation of the injector's solenoid housing. The kit includes a precision-ground sleeve drive-in adaptor and a tapered roll-in mandrel, which collectively enable the correct seating and expansion of replacement stainless steel injector sleeves. These critical sub-assemblies are functionally equivalent to Cummins factory service tools, directly cross-referencing with sleeve drive-in tool (P/N 416-6156-51) for bore insertion and sleeve roll-in tool (P/N 416-6156-53) for upper rim expansion, ensuring compliance with OEM dimensional tolerances during head reconditioning.

This tooling system is engineered to deliver universal coverage across the Cummins engine families that dominate North American Class 8 fleets, agricultural equipment, and industrial power generation. The adjustable puller geometry and interchangeable adapters accommodate the varying injector body diameters, retention groove profiles, and sleeve insertion depths found across the following platforms:

Applicable Cummins Engine Models & Injector Types:

ISB / QSB Series (5.9L & 6.7L): 2003–2007 5.9L HPCR, 2007.5–2018 6.7L HPCR, including Dodge/Ram 2500/3500 applications

ISX / QSX Series (12.9L & 15L): ISX15, QSX15, X15 Efficiency, X15 Performance (2005–current production)

ISL / QSL Series (8.9L): ISL9, QSL9, including transit bus and motorcoach applications

ISB / QSB / ISBe: Euro 4, Euro 5, and Euro 6 emissions-compliant variants with solenoid and piezo injectors

N14 / Celect / Celect Plus: N14 Celect, N14 Celect Plus (mechanical and electronic unit injectors)

M11 / L10: M11 (1994–1998), L10 (mechanical and electronic versions)

KTA19 / KTTA19 / QSK19: Large-bore industrial and marine engine platforms

C8.3 / C8.3 Celect: Mid-range mechanical and electronic injector applications

B3.9 / 4BT / 6BT: Mechanical unit injector platforms (pre-HPCR mechanical engines)

The modular design accommodates both solenoid-actuated common rail injectors and Electronic Unit Injectors (EUI) found in older Celect platforms, eliminating the need for multiple brand-specific service kits.

Correct deployment of this tooling system follows a sequenced methodology that minimizes risk to both the cylinder head and the replacement injector components. For injector sleeve replacement, begin by thoroughly cleaning the cylinder head bore to remove carbon deposits and old sealant residues. Using the drive-in adaptor (equivalent to 416-6156-51) with the slide hammer reversed to act as a driving tool, seat the new stainless steel sleeve into the bore until it bottoms against the internal shoulder. This step must be performed with the adaptor fully lubricated with clean engine oil to prevent galling of the sleeve interior surface. Subsequently, engage the roll-in mandrel (equivalent to 416-6156-53) in a drill motor at low speed (approximately 300 RPM), applying steady downward pressure while the mandrel self-feeds into the sleeve. This cold-forming operation expands the upper 5mm of the sleeve, creating a permanent mechanical seal against high cylinder compression and combustion gases. During injector extraction, the two-jaw puller is positioned around the injector's upper groove, and the slide hammer delivers controlled axial force to break the carbon bond at the nozzle tip, preventing lateral stress that can distort the injector body or damage the electrical connector pins.

The acquisition of specialized injector service tooling translates directly to measurable operational advantages for both independent repair shops and in-house fleet maintenance facilities. By enabling in-house sleeve replacement and seat cutting, this system eliminates the typical €600–€1,200 per-head outsourcing cost for machine shop reconditioning, recovering the tooling investment within the first three cylinder head overhauls. Furthermore, correct tool usage drastically reduces the incidence of injector body damage during extraction-a single mis-seated puller can deform a €900 injector beyond repair, with warranty exposure on remanufactured units exceeding €2,500 per engine. The system's capacity to service both older mechanical EUI engines and modern high-pressure common rail (HPCR) systems provides workshop flexibility, allowing a single capital investment to support the full range of Cummins-powered equipment entering the service bay. The reduced technician effort and cycle time also improve labor utilization, enabling higher throughput during peak overhaul seasons without compromising the precision required for successful fuel system rebuilds.

Q1: Does this kit include the specific adapters required for the ISX15 injector sleeve roll-in procedure, or do we need to purchase the Cummins 416-6156-53 separately?
A: The complete service kit includes both the sleeve drive-in adaptor and the roll-in mandrel, which are functionally identical to Cummins reference numbers 416-6156-51 and 416-6156-53. No additional adapters are required for ISX, ISB, or N14 sleeve replacement procedures.

Q2: When extracting heavily carbon-seized injectors from older N14 Celect engines, does the puller design risk damaging the injector's internal solenoid windings?
A: No. The two-jaw puller is engineered to engage exclusively with the external retaining groove below the solenoid housing, ensuring that extraction forces are transmitted through the injector's structural body rather than through the electrical components. This design explicitly protects the solenoid stack from axial or torsional stress.

Q3: We process approximately 8–10 cylinder head overhauls per week. What is the expected service life of the slide hammer and puller jaws under high-frequency commercial use?
A: Under continuous daily operation, the slide hammer assembly typically requires replacement of the impact bushing after approximately 3,000 extraction cycles, while the hardened puller jaws show wear after 1,500–2,000 cycles depending on the severity of carbon bonding. Replacement jaw sets and impact bushings are available as cost-effective consumable components.

Q4: Is this tooling compatible with the latest X15 Performance injectors, which have a different groove profile compared to earlier ISX15 designs?
A: Yes. The kit includes adjustable jaw inserts that can be repositioned to accommodate the revised groove geometry of X15 injectors. The modular design ensures forward compatibility across all ISX and X15 variants from 2005 through current production.

Q5: As a wholesale distributor, do you offer bulk packaging options and what is the typical lead time for replenishment orders of 10+ units?
A: We provide master carton packaging containing six complete kits per case, with private labeling options available for stocking distributors. For orders of 10 units or more, please contact our wholesale division directly for pallet pricing and expedited shipping arrangements.

Q6: What specific lubricant should be applied to the roll-in mandrel to prevent binding when expanding ISX15 sleeves, and what is the consequence of using incorrect compounds?
A: The roll-in mandrel must be continuously lubricated with clean engine oil (SAE 15W-40 or 10W-30) throughout the expansion process. Using dry lubricants, anti-seize compounds, or heavier greases such as EA Lube will alter the friction coefficient and can cause the mandrel to stall or produce uneven sleeve expansion, compromising the combustion seal.
