60MPa Manual Diesel Injector Tester — Mechanical Nozzle Pop Tester For Opening Pressure, Spray Pattern And Leakage Inspection

Before a diesel injector becomes a confirmed "bad injector," it should first be observed, pressured, listened to, and checked. The 60MPa Manual Diesel Injector Tester is designed for workshops that still need a practical, visible and hands-on way to inspect mechanical diesel nozzles before replacing parts blindly. Instead of relying only on fault symptoms such as smoke, knocking or hard starting, this tester allows the technician to see how the injector actually opens, sprays and seals under pressure.

This manual injector tester is mainly used for traditional diesel injectors and mechanical nozzle assemblies found in agricultural engines, construction machinery, generators, trucks, marine auxiliary engines, and older industrial diesel equipment. It is especially useful for repair shops handling mixed diesel service work, where both modern common rail parts and older mechanical injectors may arrive at the same bench.

The equipment is not a full electronic common rail test bench. It does not code injectors, measure ECU-controlled injection curves, or simulate 160–200 MPa common rail operating conditions. Its value is different: it provides quick visual diagnosis for mechanical injector opening pressure, sealing quality, spray cone behavior and nozzle response.

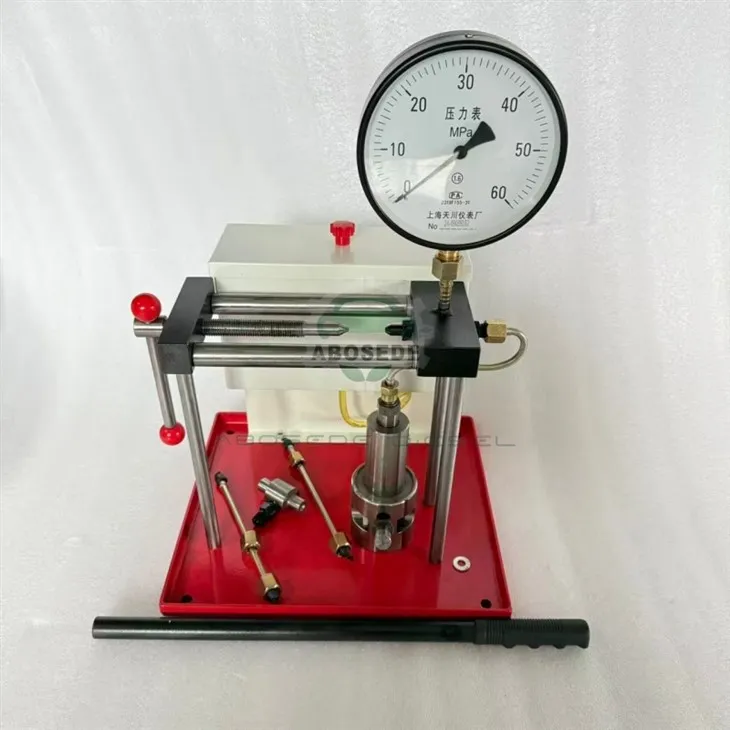

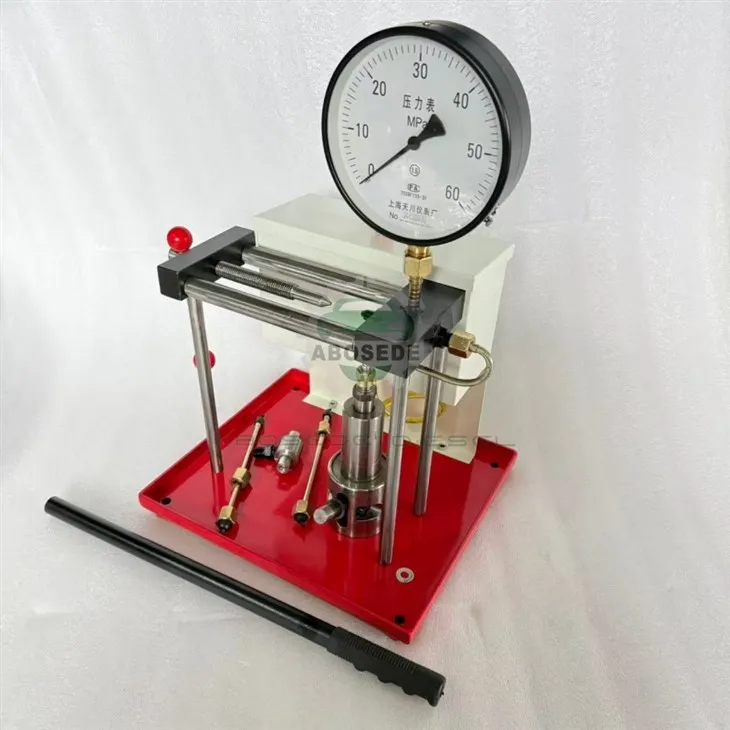

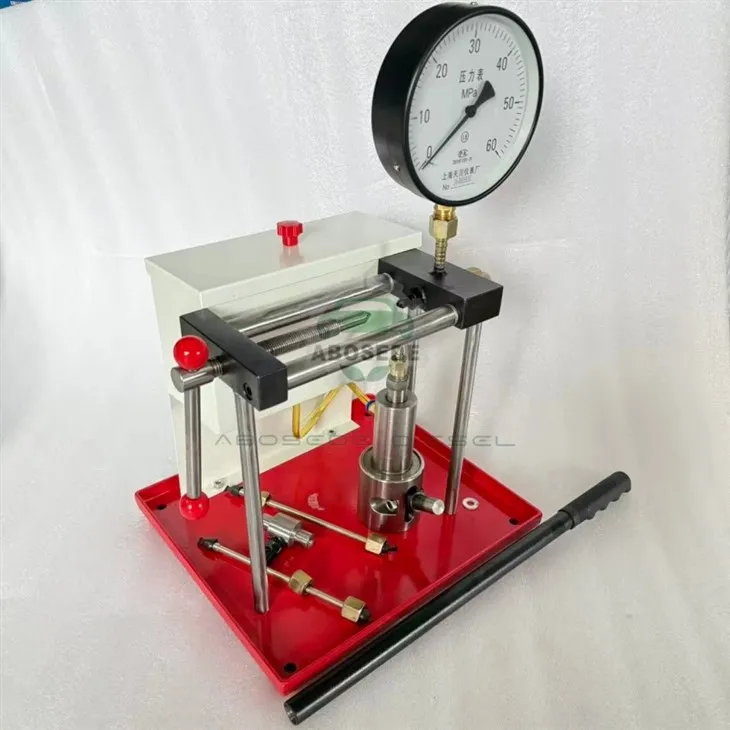

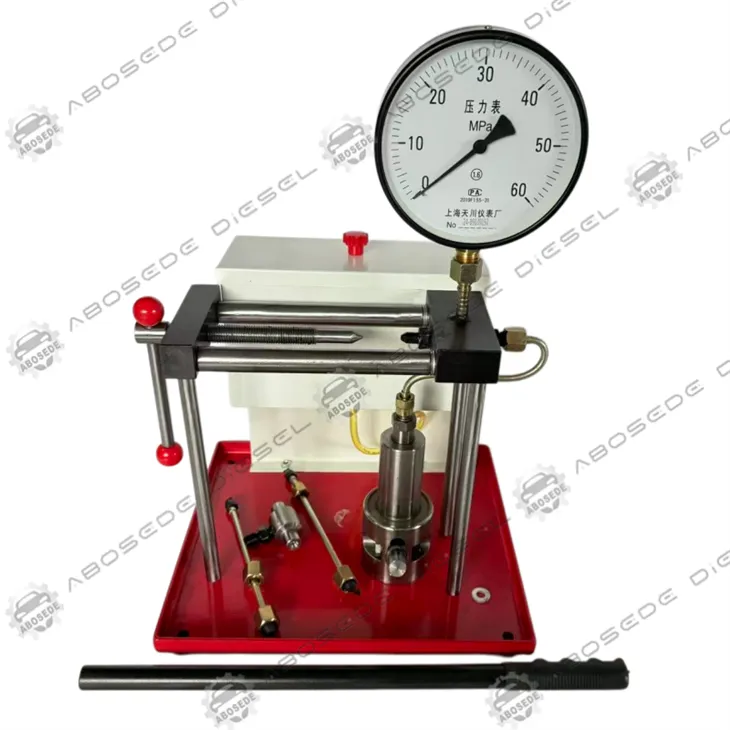

Product type: Manual diesel injector nozzle tester
Pressure range: 0–60 MPa / approx. 0–600 bar
Operation method: Hand lever pressure generation
Display: Analog pressure gauge
Testing medium: Clean diesel test oil or calibration oil
Main inspection items: Opening pressure, leakage, spray atomization, spray direction, needle chatter, sealing condition
Suitable parts: Mechanical diesel injectors, nozzle holder assemblies, traditional diesel nozzles
Not for: Full common rail injector coding, piezo injector testing, gasoline injector testing, ECU-controlled injection quantity mapping

The diesel repair market is not only about new common rail injectors. Many fleets, farms, generator users and industrial engine owners still operate mechanical diesel systems. Even when a workshop mainly sells common rail injectors, customers often bring old nozzles for quick checking, rebuilding or comparison.

This tester fills that gap. It helps technicians answer practical questions:

◇ Does the injector open at the correct pressure?
◇ Does the nozzle leak before opening?
◇ Is the spray fine or does it form a fuel stream?
◇ Is the spray direction even?
◇ Does the injector close cleanly after pressure drops?
◇ Is the problem caused by the nozzle, spring pressure or sealing surface?

For small and medium diesel repair shops, this makes the tool a low-cost diagnostic station before deeper repair or replacement decisions.

Step 1 - Fill the reservoir
Add clean diesel test oil or suitable calibration oil into the oil tank. Dirty fuel should not be used, because small particles may block the nozzle or damage the internal sealing surface.

Step 2 - Bleed air from the system
Operate the hand lever several times to remove air from the oil line. Air inside the system can make the pressure gauge unstable and may create misleading spray results.

Step 3 - Install the injector
Connect the mechanical injector to the high-pressure outlet using the correct adapter and tighten the fitting properly. Always point the nozzle toward a safe collecting area or protective chamber.

Step 4 - Check opening pressure
Press the handle slowly and observe the gauge. The pressure shown at the moment the injector begins to spray is the opening pressure. Compare this value with the engine or injector specification.

Step 5 - Observe spray pattern
Operate the lever in short strokes and watch the atomization. A healthy nozzle should produce a clear, fine and even spray. Poor atomization, uneven spray, side spray, fuel streams or dripping may indicate nozzle wear, blockage or needle sticking.

Step 6 - Perform leakage inspection
Raise the pressure close to the specified opening pressure but do not let the injector spray. Hold for several seconds and check whether fuel appears at the nozzle tip. Droplets before opening usually mean poor sealing.

Step 7 - Adjust and retest
If the opening pressure is too low or too high, the injector may require shim adjustment, spring inspection or nozzle replacement. After each adjustment, the injector should be tested again.

This tester is suitable for diesel workshops repairing old engines where mechanical injectors are still common. It can be used for tractor repair, excavator maintenance, generator service, truck injector rebuilding, marine diesel servicing and spare parts quality inspection before shipment.

It is also valuable for parts suppliers. Before sending a mechanical nozzle assembly to a customer, the supplier can perform a basic pressure and leakage check to reduce after-sales disputes.

High-pressure diesel spray can penetrate skin and cause serious injury. Never point the injector at hands, face, body or other people. Wear eye protection, release pressure before disassembly, and keep the test area clean. The operator should not exceed the pressure gauge range or use the tester for applications beyond its design.

Q1: Can this tester check common rail injectors?
It can be used only for basic mechanical-style inspection in limited cases, but it is not a full common rail test bench. It cannot perform coding, dynamic injection quantity testing or ECU simulation.

Q2: What pressure range does this tester support?
The gauge range is 0–60 MPa, which is suitable for many mechanical diesel nozzle opening pressure tests.

Q3: What oil should be used during testing?
Clean diesel test oil or professional calibration oil is recommended. Contaminated fuel may damage the injector or affect the test result.

Q4: What does dripping before spray mean?
It usually indicates poor nozzle sealing, worn needle valve, contamination, or damaged seating surface.

Q5: Can it adjust injector opening pressure?
The tester itself checks the pressure. Adjustment is usually made by changing shims, springs or internal parts, then retesting.

Q6: Who should use this product?
Diesel repair shops, agricultural machinery service centers, generator maintenance teams, marine diesel workshops, injector rebuilders and parts distributors.
