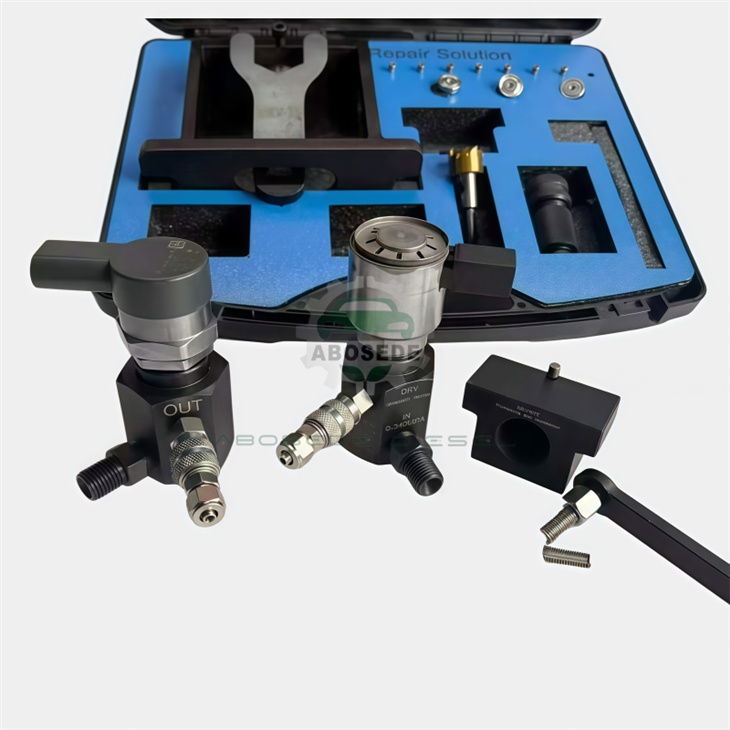

High-Performance DRV Repair Kit (Depressurization Valve) | Precision Rebuild Set For Bosch/Denso Common Rail Systems

In the high-stakes environment of modern diesel diagnostics, mechanics often chase ghosts. When a Common Rail system exhibits "Rail Pressure Too Low" faults or erratic idling, the blame is frequently placed on expensive injectors or the high-pressure pump. However, the culprit is often a tiny, overlooked component: the DRV (Depressurization Valve), also known as the Pressure Relief Valve or Over-Flow Valve.

This product detail page shifts the focus from "replacement" to "system restoration." The DRV is the safety gatekeeper of the rail. Its job is to vent excess pressure back to the tank if the rail exceeds safe limits (e.g., 2000+ bar). When the internal spring fatigues or the valve seat wears, the rail cannot hold peak pressure, leading to limp mode. Our DRV Repair Kit is not just a bag of parts; it is a calibrated solution designed to restore the hydraulic integrity of the fuel rail, ensuring that every drop of pressurized fuel goes into the combustion chamber, not back into the return line.



🎯 Selection Logic: Why Rebuild Instead of Replace?



For workshop owners and fleet managers, the decision to repair a DRV rather than replace the entire rail or valve assembly is driven by economics and engineering logic.

The "Seat" Factor: The most critical wear point in a DRV is the conical seating surface. Over time, high-velocity fuel erosion creates micro-channels that allow fuel to bypass. Our kit includes a precision-lapped valve cone that restores the original sealing geometry, eliminating pressure bleed-off.

Spring Hysteresis: The internal calibration spring is subject to metal fatigue due to millions of compression cycles. A worn spring opens too early, capping the maximum rail pressure and strangling engine power. This kit provides a replacement spring with OEM-spec stiffness curves.

Cost-Efficiency: Replacing the entire common rail manifold is prohibitively expensive. By utilizing this targeted repair kit, workshops can resolve complex pressure fault codes at a fraction of the cost of a full assembly swap, offering high value to the end customer.

💡 Diagnostic Tip: If your scan tool shows rail pressure fluctuating rapidly at idle, or if the vehicle enters limp mode only when the engine is hot, inspect the DRV first. It is often the path of least resistance for escaping pressure.





Precision engineering requires exact matches. Verify these specifications against your faulty unit.

表格

Feature	Specification	Operational Context
Component Type	DRV / Pressure Limiter	Normally Closed Valve
Function	Over-Pressure Protection	Vents rail pressure to return line
Material	Hardened Steel / Brass	Resistant to cavitation erosion
Calibration	OEM Standard Curve	Matches factory opening pressure
Compatibility	Bosch / Denso / Delphi	Fits standard Common Rail architectures
Kit Contents	Valve Body, Spring, Seat	Complete internal rebuild set





The DRV is a fundamental component in almost every high-pressure Common Rail architecture. This kit is designed to service a wide range of heavy-duty and passenger car applications.

Bosch Common Rail Systems: Widely used in European trucks (Volvo, Scania, MAN) and passenger cars. The DRV in these systems is critical for maintaining the tight pressure windows required for Euro 5/6 emissions compliance.

Denso Systems: Common in Japanese light commercial vehicles (Toyota, Isuzu) and construction equipment. These valves often suffer from sticking due to carbon buildup, which this kit resolves.

Delphi & Siemens: Found in various transit vans and SUVs. The repair kit restores the quick-response capability needed for rapid deceleration events.

Industrial Generators: Stationary engines rely on stable rail pressure to maintain frequency (Hz). A leaking DRV causes frequency hunting, which is solved by reinstalling a fresh valve seat.





Installing a DRV Repair Kit is a procedure that demands cleanliness and attention to detail.

Rail Flushing: Before installing the new DRV components, the common rail manifold must be flushed. Metal shavings from the old, worn valve can lodge in the new seat, causing immediate failure. Use ultrasonic cleaning if possible.

Torque Specifications: The DRV is typically threaded directly into the rail. Over-torquing can distort the valve body, preventing the needle from moving freely. Always use a torque wrench and follow the specific Nm rating for your engine model.

Leak Testing: After installation, perform a static pressure test (using a diagnostic scanner) before cranking the engine. Monitor the rail pressure decay rate. A healthy DRV will hold pressure significantly longer than a worn one.

Filter Check: Since DRV failure is often caused by particulate contamination, always replace the fuel filters alongside the valve repair to protect the new components.





Q1: What is the difference between a DRV and a PCV (Pressure Control Valve)?
While often used interchangeably, a PCV actively regulates pressure continuously, whereas a DRV (Depressurization Valve) is primarily a safety limiter that opens only during over-pressure events or to assist in rapid depressurization. This kit services the limiting function.

Q2: My truck throws a "Rail Pressure Plausibility" error. Will this fix it?
If the error occurs during hard acceleration (when pressure spikes), yes. A weak DRV spring may open prematurely, dumping fuel and causing the ECU to detect a pressure drop. This kit replaces the fatigued spring.

Q3: Can I install this kit without removing the rail from the engine?
On many engines, yes. The DRV is usually accessible from the top or side of the rail. However, you must ensure no debris falls into the rail bore when removing the old valve components.

Q4: Does this kit come with O-rings?
Yes, the kit includes all necessary sealing washers and O-rings required for the reassembly of the valve interface to ensure zero external leakage.

Q5: How do I know if my DRV is stuck open vs. stuck closed?
Stuck Open: Engine starts hard, runs rough, smokes heavily (rail can't build pressure).
Stuck Closed: Dangerous. The rail may exceed max pressure, potentially rupturing lines or damaging injectors. If you suspect this, replace immediately.

Q6: Is this compatible with Biodiesel (B20/B100)?
The metal components are fully compatible. However, ensure the seals included in the kit are made of Viton (fluoroelastomer), which resists the solvent properties of biodiesel.
