Bosch 0445110485 Injector: K9K 1.5 dCi Leak-Off & Cold-Start Fix
1. Product:0445110485
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
When a Renault or Dacia K9K 1.5 dCi arrives with a P0087 or P0093 pending code and cold-start crank time past four seconds, the Bosch 0445110485 is on the shortlist of suspects. This is not a generic common-rail component; it is the solenoid valve assembly calibrated for K9K 608, 609, and 612 engine families, where back-leak rates and pilot-injection stability decide whether the engine fires cleanly or stumbles through its first thirty seconds. The real workshop problem is not finding the part number-it is deciding whether the 0445110485 on the bench genuinely causes the cylinder-balance drift, or whether the rail pressure regulator masks a return-flow issue a new injector will not fix.
🔧 Specification Boundaries That Determine Whether a Used Unit Is Serviceable
The 0445110485 operates within a solenoid-controlled common-rail architecture where the control valve meters delivery to the nozzle, and back-leak quantity is the most reliable indicator of internal wear. A healthy unit on a CRI test bench at 1,350 bar should return under 25 ml/min from the leak-off port; past 45 ml/min, pilot injection quantity destabilises and the ECU compensates with post-injection strategies that raise DPF regeneration frequency without fixing the underlying nozzle needle wear. The sealing washer beneath the body is a one-time copper crush ring-reuse introduces combustion gas blow-by that carbonises the injector seat and creates a hot-start misfire indistinguishable from a failing solenoid. Solenoid resistance should read 0.3–0.6 Ω at 20°C; outside that window indicates coil degradation no ultrasonic cleaning will reverse.
🛣️ Vehicle Platforms Where the 0445110485 Appears-and Where It Does Not
| Platform | Engine Code | Model Years | Critical Fitment Note |
|---|---|---|---|
| Dacia Sandero II | K9K 612 | 2012–2020 | 7-digit injector coding required after fitting |
| Dacia Duster | K9K 612 | 2013–2018 | Same coding; ECU variant differs from Sandero |
| Renault Clio IV | K9K 608 / 609 / 612 | 2012–2019 | Grandtour uses identical unit; verify connector keyway |
| Renault Captur | K9K 608 / 609 | 2013–2019 | Stop-start models need ECU adaptation reset |
| Mercedes Citan | K9K 612 | 2012–2021 | Mercedes-branded ECU rejects Renault calibration data |
🔩 Installation Sequence That Prevents Repeat Comebacks
The most common error is not torque-it is coding sequence. On K9K 612 applications the IMA (injector minimum adaptation) code etched on the body must enter the ECU before first cranking. Start the engine with the old code active and the ECU writes a long-term trim on incorrect delivery assumptions; the new injector's pilot quantity then drifts within the first 200 km. Clean the injector bore with a nylon brush and brake cleaner, never a metal scraper-the copper seat in the head is only 0.8 mm thick, and scoring it creates a compression leak mimicking a failed head gasket. Tighten the hold-down claw to 6 Nm + 90° in one continuous motion; partial sequences let the body cock slightly, distorting the sealing washer and producing a diesel weep visible only at operating temperature.
🧩 Repair or Replace: The Decision Workshop Owners Actually Face
A 0445110485 with leak-off above 60 ml/min plus a cylinder contribution fault on the same cylinder is a replacement candidate-the control valve seat erosion behind it cannot be corrected by nozzle cleaning or valve replacement kits, because the armature guide bore has worn oval. But if leak-off is elevated while cylinder balance stays within ±1.5 mm³/stroke at idle, the fault is more likely rail pressure sensor drift or fuel filter restriction upstream. Replacing the injector there costs €180–€240 and 2–3 hours without clearing the P0087. Commercially, Bosch exchange units (reference 0986435240) arrive with a calibration certificate and 12-month warranty, while half-price aftermarket new units often lack the IMA code traceability the K9K ECU demands for Euro 5 compliance. For a Dokker or Clio IV facing another 80,000 km of delivery service, exchange is the lower-risk call; for a high-mileage personal vehicle with advancing body corrosion, a tested used unit from a low-mileage breaker is defensible.
❓ FAQ: Diagnostic Data Stream Scenarios for 0445110485 Workshops
Q1: Cylinder 2 contribution reads −4.2 mm³/stroke while others sit near zero; leak-off is 38 ml/min. Is the injector the problem?
A: Borderline, not condemnable alone. Compare requested vs actual rail pressure at idle-delta over 15 bar suggests the pressure regulator is compensating. Swap the injector to cylinder 3 and re-read; if the fault follows, replace it.
Q2: Cold starts fine, hot cranks five seconds; leak-off in spec. What did I miss?
A: Check fuel temperature sensor plausibility. If it reads 15°C when the rail is at 60°C, pilot quantity is too lean for hot restart.
Q3: Three used units with different donor IMA codes-can they share one engine?
A: Yes physically, but the K9K ECU stores a separate IMA per cylinder. Uncoded, it defaults to a nominal delivery map, causing idle roughness and elevated particulate output that fails an MOT smoke test.

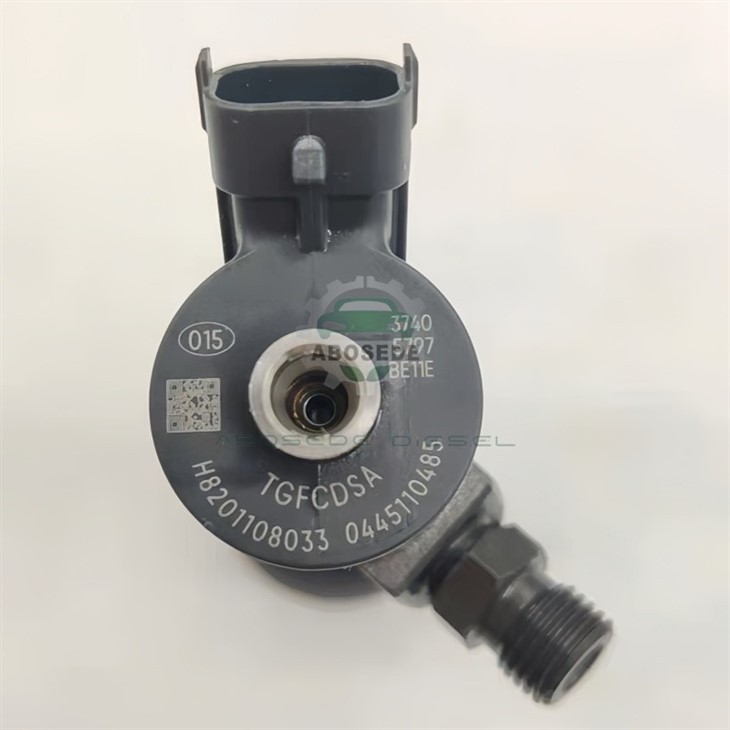

Q4: Body stamped 0445110485, box says 0986435240-same part?
A: 0986435240 is the Bosch exchange number for a remanufactured 0445110485. Verify the SecurePack hologram and KeySecure code-counterfeits replicate the casting number but fail the fire-test nozzle raster.
Q5: Intermittent P0201, injector ohms at 0.4 Ω, leak-off 22 ml/min. Next test?
A: Wiggle test the harness on live data. The K9K harness runs near the EGR pipe; heat embrittles the solenoid connector latch. If contribution drops on flex, replace the pigtail first.




Flexible Payment Methods for Your Convenience
To make your purchasing experience smooth and easy, we offer a variety of secure payment options:

Bank Transfer
Pay directly in 15 supported currencies.

Western Union
Quick and global money transfers.

PayPal
Safe and convenient online payment.

Alibaba
Enjoy extra protection with trusted Alibaba transactions.
We're here to make your order process worry-free - choose the payment method that works best for you!
Shipping Made Simple

Customer reviews

Hot Tags: Bosch 0445110485 Injector: K9K 1.5 dCi Leak-Off & Cold-Start Fix, China Bosch 0445110485 Injector: K9K 1.5 dCi Leak-Off & Cold-Start Fix manufacturers, suppliers, factory, bosch injector
You Might Also Like
-

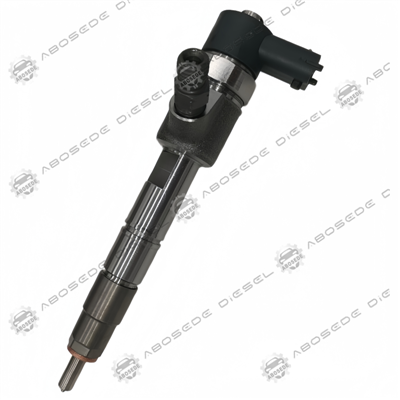

Bosch 0445110454 Common Rail Injector for JMC 4JB1 2...
-

0445110489 Common Rail Injector for Ford 1.5/1.6 TDCi
-

Bosch 0445120235 Common Rail Injector – Built For Ha...
-

Bosch 0445110788 — Common-Rail Fuel Injector (CRI1-18)
-

Injector 0445120054 New High-Quality For Bosch Repla...
-

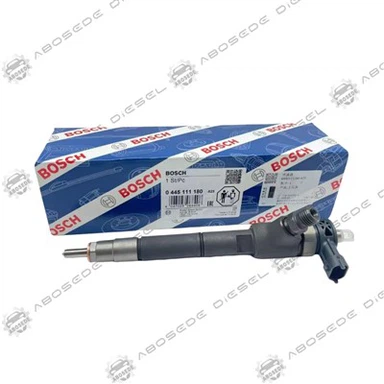

Bosch 0445111180 Common Rail Injector for PSA DW10 &...
