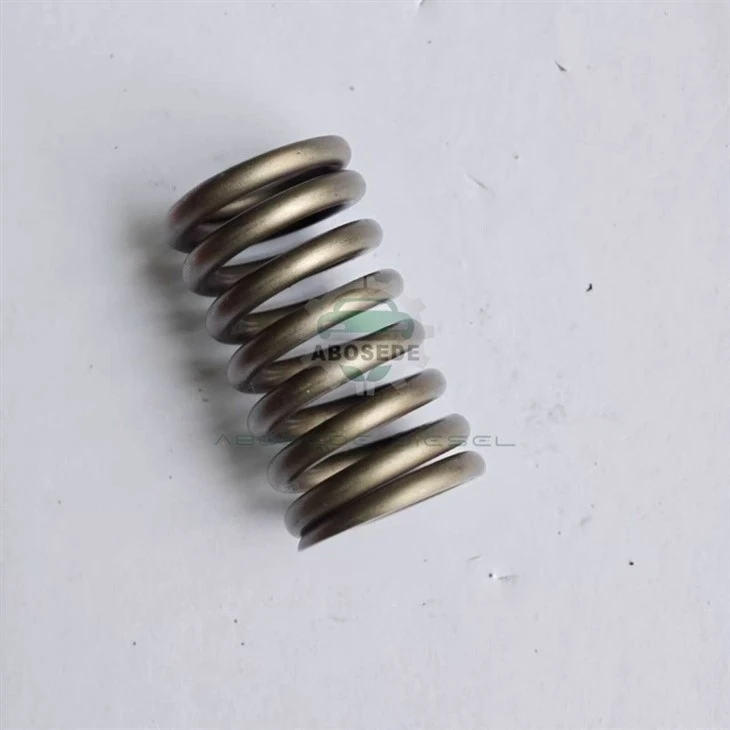

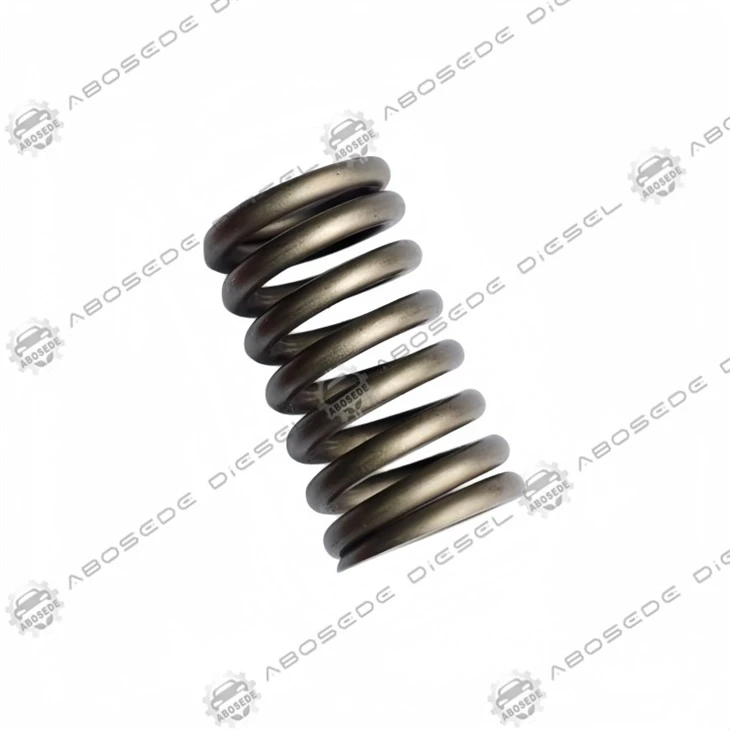

22100-0E020 Spring – The Calibration Element Inside The Toyota 1GD/2GD Pressure Limiting Valve

Most parts listings treat 22100-0E020 as a valve number and ignore the component that actually sets its behavior: the spring. In a Denso pressure limiting valve for Toyota 1GD-FTV and 2GD-FTV common rail engines, the spring is not a generic hardware item. It is the calibration element. Cracking pressure, reseat pressure, hysteresis width, and response speed all derive from spring rate, free length, wire diameter, and end-coil geometry. Replace the spring with one of the wrong rate, and the valve may still look and fit correctly while opening at the wrong point. This is why spring specification deserves the same scrutiny as seat geometry.

Cracking pressure is often described as "the pressure at which the valve opens." That is incomplete. The valve opens when hydraulic force on the seat area equals spring preload plus the force needed to lift the seat off its contact ring. Spring rate controls how much additional force builds per millimeter of lift. A spring with a low rate opens gradually and produces a soft, early vent. A spring with a high rate opens sharply and produces a crisp vent but a wider hysteresis band. Original 22100-0E020 springs are wound to a narrow rate window so the valve opens decisively without excessive travel. Aftermarket springs with wider rate tolerances produce valves that feel inconsistent across a production batch.

Spring rate scales strongly with wire diameter. A variation of a few hundredths of a millimeter in wire diameter changes rate measurably. In small valves, this variation is large enough to shift cracking pressure outside the acceptable band. Reputable spring suppliers control wire diameter, coil diameter, and active coil count together. Low-cost suppliers often control only free length, which is the easiest dimension to measure and the least informative. When evaluating a 22100-0E020 spring, ask for wire diameter, active coils, and rate rather than free length alone. Free length can be adjusted by stretching. Rate cannot.

The spring inside a pressure limiting valve is compressed for its entire service life. It never fully relaxes. Under constant load and elevated temperature, spring steel undergoes stress relaxation. The spring loses preload without changing shape visibly. This loss lowers cracking pressure. A valve that met specification when new can vent early after prolonged service, limiting maximum rail pressure and reducing torque at full load. Stress relaxation accelerates with temperature and with poor heat treatment. Springs that were not properly stress-relieved after coiling relax faster than correctly processed ones.

Pressure limiting valves experience pressure pulsation from every injection event. Even when the valve stays closed, the spring sees small cyclic loads. Over millions of cycles, surface fatigue can initiate cracks at the wire surface, usually on the inside of the coil where tensile stress is highest. Shot peening induces compressive residual stress at the surface and delays crack initiation. OEM 22100-0E020 springs are typically shot peened. Unpeened springs may function correctly when new but fail earlier in high-cycle service. Fatigue failure in a valve spring usually presents as a broken end coil or a shortened spring that no longer holds preload.

Q1: Can I reuse the original spring when rebuilding a 22100-0E020 valve?
Only if free length and installed force both measure within specification. Springs under constant load relax over time, so a spring that looks fine may already have lost preload. Measuring is the only reliable check.

Q2: Does a stronger spring raise or lower cracking pressure?
A stronger spring raises cracking pressure. It also widens hysteresis because more force is required to lift the seat and more pressure drop is needed before the spring reseats the valve.

Q3: Why does spring rate matter more than free length?
Free length can be altered by stretching and does not describe force behavior. Rate determines how force changes with lift and directly controls opening sharpness and hysteresis width.

Q4: What causes a valve spring to break in service?
Surface fatigue from cyclic pressure pulsation, usually starting at the inside of the coil. Shot peening delays this. Poor heat treatment and surface defects accelerate it.

Q5: Can a relaxed spring cause a low-power complaint?
Yes. A relaxed spring lowers cracking pressure, so the valve vents earlier and caps maximum rail pressure. Full-load injection quantity drops and torque falls without setting a clear fault code.

Q6: Is spring surge a real concern in small rail valves?
Yes. If rail pulsation excites the spring's natural frequency, coils oscillate out of phase and the seat load fluctuates. This can cause intermittent leakage or pressure noise that is hard to diagnose.
