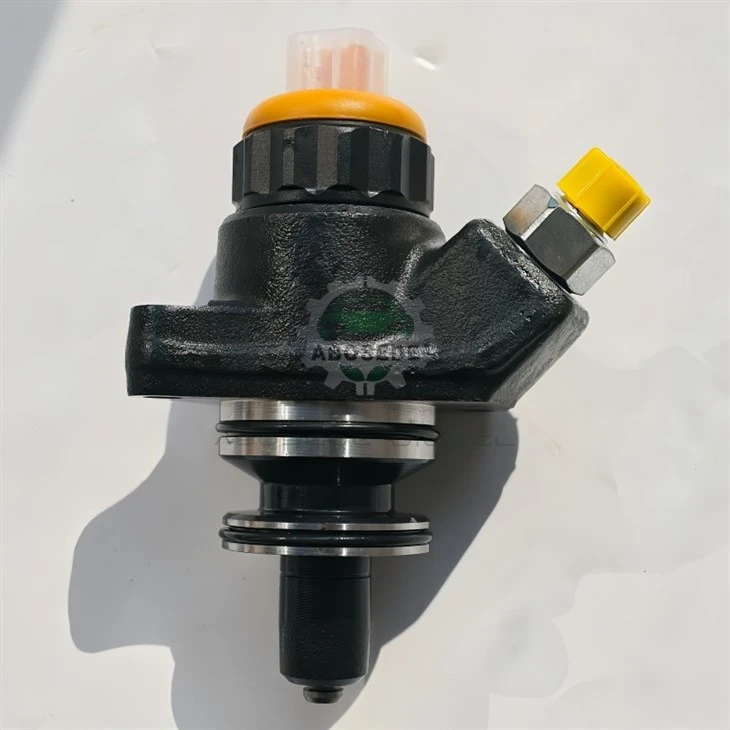

094150-0270 Denso HP0 High-Pressure Plunger Assembly

The 094150-0270 plunger assembly serves as the pressure-generating core for Denso HP0 common rail pumps, converting the camshaft's rotational motion into the hydraulic force required to pressurize diesel fuel for direct injection. As a precision-ground steel plunger and barrel set, it directly influences rail pressure stability, injection quantity consistency, and overall combustion efficiency in heavy-duty and industrial diesel platforms. When the plunger assembly wears, the entire fuel system loses its ability to maintain commanded pressure, triggering performance complaints that no amount of injector work can resolve.

The 094150-0270 plunger assembly fits a broader range of HP0 pump part numbers than most aftermarket listings acknowledge, including 094000-0305, 094000-0310, 094000-0400, 094000-0490, 094000-0500, and 094000-0530 . In practical terms, this means the same plunger set can be used across Isuzu, Hino, Mitsubishi Fuso, and Komatsu industrial engines. The Isuzu 6WF1, 6UZ1, and 6HK1 platforms appear repeatedly in fitment data, while Komatsu SA6D140E-3 and SAA6D125E-5 excavator and construction applications share the same pump architecture . Sinotruk WD615-equipped Howo trucks also represent a significant installation base in export markets. For a diesel parts distributor, this wide coverage reduces inventory complexity: one plunger assembly serves agricultural, construction, and on-highway segments, lowering stock-keeping overhead while maintaining application breadth.

Replacing the 094150-0270 demands more than mechanical disassembly. The HP0 pump is a precision hydraulic unit, and the surrounding high-pressure circuit carries fuel at pressures capable of penetrating skin; every step must follow strict cleanliness and torque discipline . Before removal, the area around the pump and high-pressure lines should be cleaned to prevent debris ingress. The pump shaft position must be recorded with a degree wheel before transferring the gear, because the HP0 pump timing is critical and the shaft must not rotate after removal . When installing the replacement plunger assembly, new O-ring seals and copper sealing washers are mandatory; reusing old seals invites leakage at the pump flange or fuel rail connections. High-pressure fuel tubes are single-use components and must be replaced rather than reinstalled. Torque values matter: pump mounting bolts typically tighten to 25 N·m (18 ft-lbs), while high-pressure union nuts require 11 N·m plus 75° angle tightening . A torque wrench is not optional.

When a common rail pump fails, the instinct is to replace the complete unit. But the 094150-0270 plunger assembly is often the only worn component driving the failure: hard starting, rail pressure deviation codes, and power derate. Replacing the full HP0 pump can cost $2,400 to $2,800 in parts alone from major retailers, plus core charges and programming time . A plunger-focused repair, when the pump housing and camshaft remain serviceable, cuts material cost dramatically while restoring original pressure-generation capability. For diesel injection repair shops, this creates a profitable service category: diagnose the pressure loss, verify that the pump body and metering unit are within specification, and replace only the plunger and barrel assembly. Properly executed, a rebuilt or plunger-replaced HP0 pump can deliver 150,000 to 300,000 miles of service life when fuel cleanliness is maintained . The plunger assembly is also the first component to suffer when water or particulate contamination bypasses the fuel filter, making it both the failure point and the diagnostic signal for upstream fuel quality issues .

Q1: Can I install the 094150-0270 plunger assembly into any HP0 pump housing regardless of the original 094000-series number?
A: The plunger fits any HP0 pump that accepts the short plunger configuration. Verify the pump's 094000-series number against the interchange list before ordering.

Q2: What is the return rate on this part, and what causes premature failure?
A: Field returns cluster around contaminated fuel. If the fuel filter and water separator are not renewed at installation, particulate passes the plunger clearance and scores the barrel within thousands of miles.

Q3: Does replacing just the plunger restore full rail pressure, or does the metering unit also need attention?
A: Pressure restoration depends on metering unit condition. If the suction control valve response is sluggish, plunger replacement alone will not solve pressure deviation.

Q4: How does 094150-0270 compare to 094150-0330, and can I use them interchangeably?
A: They are direct interchange numbers for the same application family. Use whichever number your pump documentation specifies without concern for functional difference.

Q5: What warranty support do you offer for wholesale accounts?
A: Standard coverage is 6 months against manufacturing defects. Wholesale buyers receive priority replacement processing; installation-related failures are assessed case by case.
