22100-0E020 Pump Plate – Mounting Datum, Bolt-Load Distribution & Alignment For Denso Common Rail Pumps

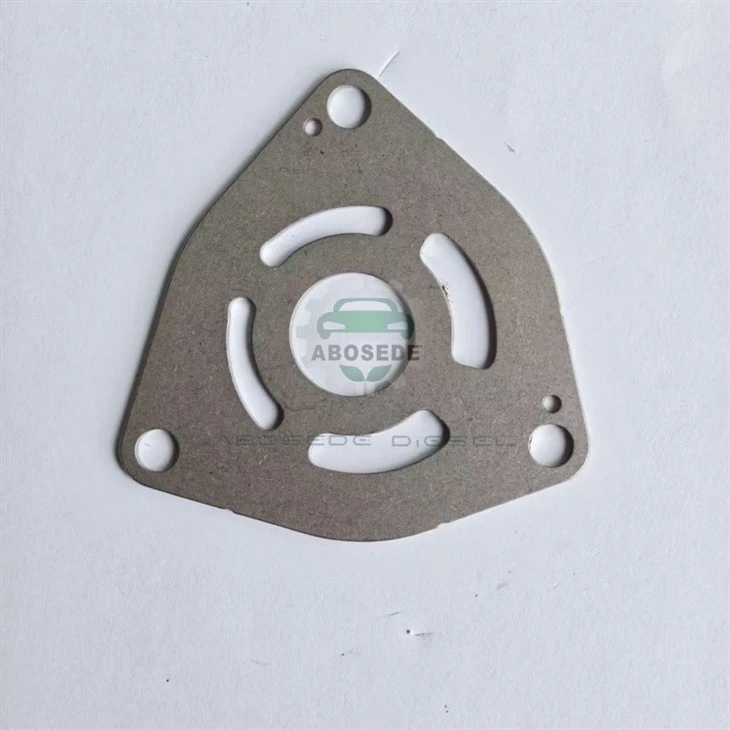

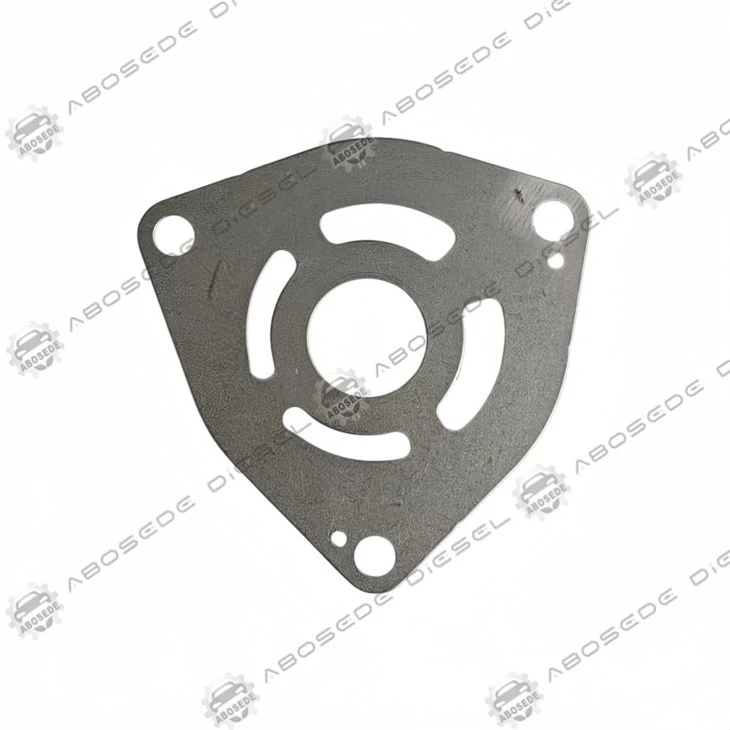

22100-0E020 is described in most catalogs as a pump plate, but in a Denso HP3/HP4 common rail pump it functions as the mounting datum. It is the interface between the pump housing and the engine or bracket. Its job is not to contain fuel. Its job is to hold the pump in a fixed position under vibration, thermal growth, and drive torque reaction. If the 22100-0E020 pump plate loses flatness, bolt-hole alignment, or thickness tolerance, the pump shaft can misalign with the drive gear. That misalignment shows up as bearing wear, seal leakage, and eventually rail pressure instability. The plate is simple in shape but critical in geometry.

The pump plate sets the axial position of the pump relative to the drive. A thickness error of 0.10 mm changes gear mesh and coupling preload. Too thin, and the coupling runs loose. Too thick, and the pump shaft is pushed into the drive bearing. Both conditions shorten pump life. On Toyota 1GD-FTV and 2GD-FTV applications, the 22100-0E020 plate is machined to a controlled thickness with tight parallelism between the front and rear faces. Parallelism matters more than absolute thickness because it controls tilt. A tilted plate causes the pump to sit at an angle. That angle loads the shaft seal unevenly and produces a leak that looks like a failed seal but is actually a plate problem.

The plate transfers clamp load from the bolts into the pump housing. Bolt holes must be positioned so that load is distributed evenly around the sealing and mounting surfaces. If one hole is off-center or the plate face is not flat, clamp load concentrates at one side. The opposite side loses preload. Under vibration, that side frets. Fretting removes material, reduces clamp load further, and creates a cycle that ends in loose mounting or cracked bolt bosses. A 22100-0E020 pump plate with poor hole position cannot be corrected by over-torque. Over-torque distorts the plate and makes the problem worse.

The plate is usually made from steel or high-strength aluminum, depending on the pump variant. Material choice affects vibration transmission. Steel plates are stiffer and resist fretting better. Aluminum plates are lighter but can deform if the bolt load is uneven. The surface finish on the mounting faces also matters. A rough finish reduces contact area and increases local stress. A finish that is too smooth can promote fretting because there is no texture to resist micro-motion. OEM 22100-0E020 plates use a controlled surface finish to balance grip and stress.

The pump, plate, and engine bracket expand at different rates when hot. If the plate material has a different coefficient of thermal expansion than the housing, the clamp load changes with temperature. A plate that is tight when cold can become loose when hot, or vice versa. This is why the 22100-0E020 plate must match the pump family, not just the engine model. Aftermarket plates made from generic steel may fit dimensionally but change the clearance stack-up at operating temperature. That change can cause shaft end-play variation and seal wear.

Q1: Is 22100-0E020 a pump plate or a pump cover?

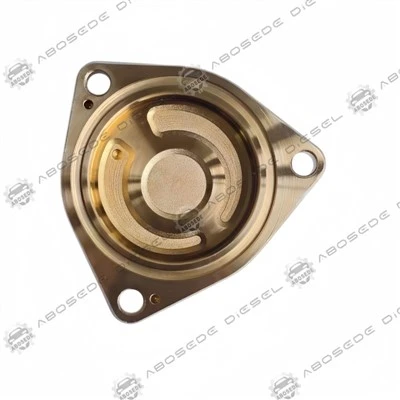

It is a mounting plate used in the Denso pump assembly. It should not be confused with the pump cover, which seals the low-pressure chamber. The plate controls mounting position and clamp load.

Q2: Can a bent 22100-0E020 plate cause a shaft seal leak?
Yes. A bent or tilted plate misaligns the pump shaft. The seal then wears unevenly and leaks. Replacing the seal without correcting the plate will not solve the problem.

Q3: How do I check plate flatness on the bench?
Use a surface plate and a feeler gauge or dial indicator. Check across the mounting faces and around each bolt hole. Any rocking or gap indicates distortion.

Q4: Are all Denso pump plates interchangeable?
No. Plate thickness, bolt-hole position, and passage openings vary between pump families. Always match the plate to the pump assembly number.

Q5: What causes bolt holes in 22100-0E020 to elongate?
Fretting from insufficient clamp load, over-torque, or a non-flat mounting surface. Elongated holes mean the plate has moved under load and should be replaced.

Q6: Does the pump plate affect rail pressure control?
Not directly, but misalignment can cause drive vibration and pump speed fluctuation. That fluctuation affects metering valve response and rail pressure stability under load.
