Denso HP3 Supply Pump Rear Housing – OEM Reference 294184-0050

That truck has been sitting in bay three for fourteen hours. Driver's losing dispatch money. Shop air is thick with frustration. You diagnosed the hard-start condition, traced it to fuel pressure bleed-off, and now you're staring at a supply pump that's weeping fuel into the crankcase. The rear cover seal gave out-again. Not because you did anything wrong last time, but because the replacement housing you installed eight months ago wasn't up to the thermal cycle demands of this Hino J08E. That's precisely why the 294184-0050 rear housing exists in this specification. It closes out the low-pressure gear pump section of the Denso HP3 rotary supply pump with the dimensional integrity that aftermarket substitutes routinely sacrifice. This cover governs the axial clearance for the internal vane pump and establishes the return circuit for fuel recirculation. Get this wrong, and you are not replacing a cover. You are booking a second bay day, reprocessing warranty paperwork, and explaining to a fleet operator why his unit is still down.

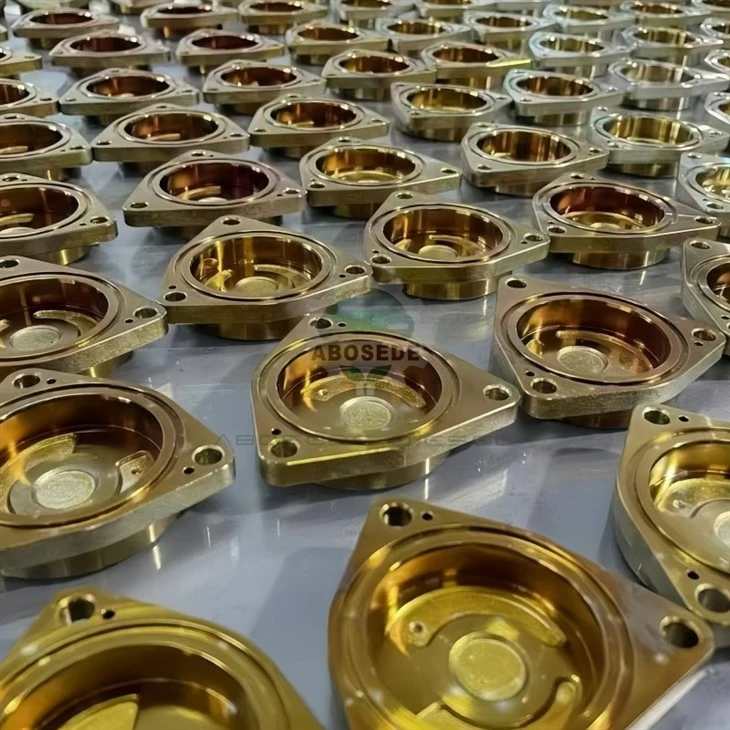

The 294184-0050 housing comes off the machining line with a mating face flatness held to -0.02/+0.02 mm. That number is not academic. That number determines whether your new Viton O-ring compresses evenly or extrudes into the gear chamber after ninety operating hours. The locating dowel bores are ground to an exacting concentricity relative to the pump driveshaft axis; any deviation forces the internal gear set to run out of true, accelerating spline wear and generating metal particulates that travel directly into the high-pressure plungers. Surface treatment includes a chromate conversion coating, which we mention not as a marketing point but because we have seen raw aluminum housings pit from acidic fuel condensation inside six months of urban delivery service. The internal recess features a polished contact track for the spring retainer-reducing friction hysteresis that otherwise manifests as inconsistent low-pressure feed to the SCV. When you bolt this unit on, you are not adding a part. You are subtracting variables from your diagnostic equation.

This rear housing anchors exclusively to the Denso HP3 pump platform. If you are working a Hino J05E or J08E, an Isuzu 6HK1 or 4JJ1, a Toyota 1VD-FTV in a Land Cruiser, or Komatsu equipment running the HP3 supply pump, this cover matches the factory bolt pattern and internal clearance spec. Do not confuse this with the pump head-that is the high-pressure outlet side. This pump cover addresses the low-pressure stage, the side that pulls fuel from the tank and presents it to the plunger assembly. We have watched shops order the wrong housing, force fit it, and then chase rail pressure codes for three days. The 294184-0050 eliminates that guesswork. It is the difference between a one-hour reassembly and a six-hour rework that consumes your senior tech's patience and your parts budget.

Installation discipline separates profitable repairs from warranty claims. Before the 294184-0050 pump cover approaches the pump body, both sealing faces need solvent cleaning with a lint-free wipe-no exceptions. The O-ring must receive a light diesel film to prevent rolling during seating. Verify the return spring sits correctly in its pocket before aligning the cover over the locating dowels. Then the fasteners: progressive star-pattern tightening, not a single-pass rotation. We have documented cases where uneven torque application distorted the aluminum housing by 0.08 mm across the diagonal, enough to allow low-pressure fuel bleed into the engine oil. That is a come-back that presents as rising oil level and eventual bearing failure-a cost that lands squarely on your shop's P&L. If the original bolts are torque-to-yield, discard and replace them. The same applies to the O-ring; never reuse it, even if it looks pliable. The housing itself is the durable asset; the sealing elements are consumables. Treat them accordingly, and this cover will outlast the pump's next scheduled overhaul.

Here is the calculation that keeps shop owners awake. A full HP3 exchange pump runs upwards of $1,200 core-inclusive. This Denso HP3 cover runs a fraction of that. But the real economy is not in the part price-it is in the avoided repeat labor. When the rear seal fails from cover distortion or surface pitting, fuel dilutes the engine oil. That compromises the camshaft and bearings. The driver returns with a knock. You tear down the pump again, find metal debris, and now you are replacing the entire supply unit instead of the cover. That sequence costs you three bay days, a customer relationship, and the margin on two other jobs that could have turned your books positive. This 294184-0050 component directly interrupts that downward spiral. It is not the flashiest part on your shelf, but it is the one that prevents your best technician from spending Saturday afternoon redoing work he already performed correctly. In the diesel common rail ecosystem, the low-pressure circuit is the forgotten frontier-and the frontier is where failures breed. Secure it with a housing that matches the original dimensional blueprint, and you convert a high-risk repair into a routine maintenance interval.

Q1: Will this cover fit a pump that had a non-OEM housing installed previously?
A1: Yes, provided the pump body itself remains the original HP3 casting. Remove the old cover carefully and inspect the dowel bores for elongation before installation.

Q2: What is the typical labor time for this replacement?
A2: Count on 1.5 to 2 hours for an experienced tech on a Hino or Isuzu, assuming no corroded fasteners. The pump can remain vehicle-mounted.

Q3: Can fuel aeration cause this cover to fail prematurely?
A3: Yes. Cavitation from aeration erodes the polished contact track. Address return line restriction first, or a new cover will degrade at the same accelerated rate.

Q4: How do I distinguish this rear cover from the HP3 front cover?
A4: The front cover mounts the SCV and contains inlet ports. This rear housing is externally blank except for bolt bosses and a small return fitting boss. It faces the flywheel side.

Q5: Does this cover work with biodiesel blends?
A5: Yes. The chromate coating and aluminum alloy resist corrosive esters in B20 and acidic byproducts from high-sulfur combustion.
