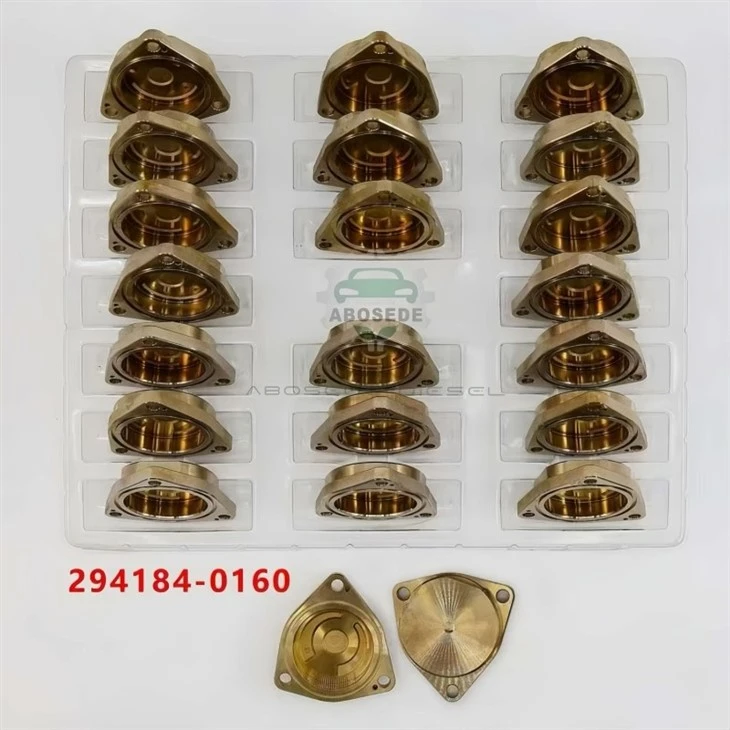

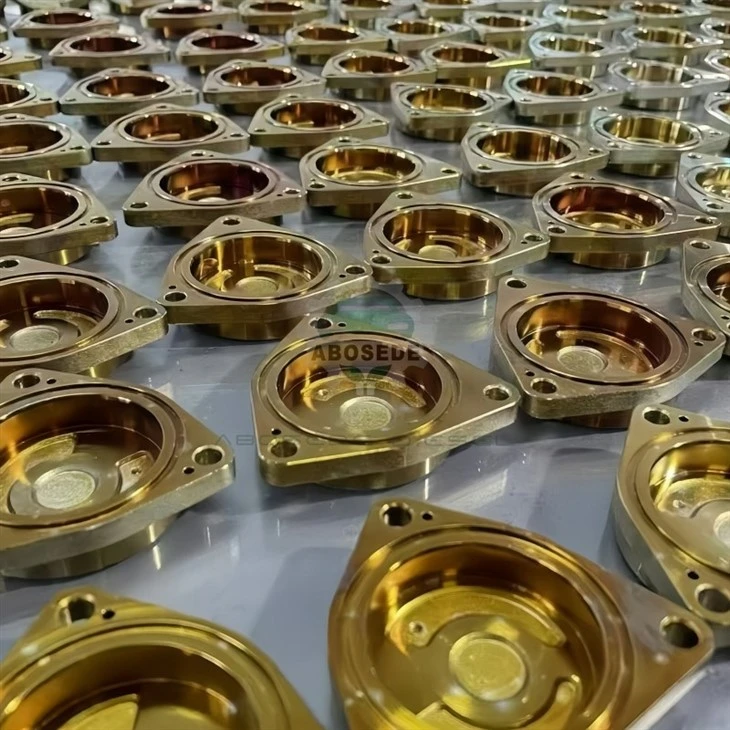

Pump Cover Assembly 294184-0160 – Denso HP3 Common Rail Fuel Pump

For a service bay that turns over a dozen commercial diesel jobs weekly, the difference between a profitable repair and a money-losing ordeal often comes down to a single casting. That casting is the 294184-0160 pump cover. When a Denso HP3 feed pump section loses hydraulic integrity, the workshop isn't just looking at a seal failure-it's staring down diagnostic false trails, repeated crank-no-start complaints, and frustrated customers who blame the shop for "not fixing it right the first time." This cover sits at the intersection of fuel system reliability and repair economics. It is the boundary that keeps the low-pressure stage airtight and contaminant-free. Overlooking its condition during a pump overhaul or replacing it with a substandard aftermarket blank forces the entire high-pressure circuit to run on borrowed time, driving up warranty returns and eroding parts margins for wholesalers who stock for fleets operating Isuzu, Hino, and Mitsubishi Fuso chassis.

Inside every HP3 pump, the gear-type transfer pump relies on near-zero clearance between the rotating elements and the cover's internal recess. As that recess erodes from fuel-bound abrasives or the mounting face warps from over-torquing, the feed pressure drops below the threshold required to charge the high-pressure plungers. The workshop then faces a cascade of misdiagnoses: sensors get swapped, ECUs get reflashed, and the actual culprit-a cover that cannot maintain hydraulic clamp load-remains buried under labor hours. For the parts distributor, every returned "faulty" injector or pump core that traces back to inadequate feed pressure represents unnecessary shipping costs and core credit disputes. Replacing the 294184-0160 at the first sign of surface pitting or seal groove distortion eliminates the single largest variable in post-repair bleed-down failures, a known frustration point for diesel technicians working on Denso HP3 platforms.

The HP3 family spans multiple displacement ratings and mounting configurations, but the 0160 suffix denotes a specific cavity depth matched to pumps found in medium-duty trucks and certain off-highway equipment. This is not a universal closure plate. Workshops that attempt to substitute covers from earlier HP3 variants often discover that the gerotor elements bind or, conversely, fail to create adequate suction lift. The real-world consequence appears as prolonged cranking after filter changes, a condition that drives service advisors to schedule unnecessary fuel system flushes. For wholesale buyers, the lesson is straightforward: stocking the correct 294184-0160 reduces the friction of matching a cover to a pump serial number during urgent rush orders. Fleet maintenance managers also note that pumps equipped with a fresh, factory-spec cover exhibit measurably quicker prime recovery after hot shutdowns, a benefit that translates to fewer roadside assistance calls.

The installation process demands more than a torque wrench and a new O-ring. The cover mounts to a pump body that has likely experienced repeated thermal expansions over hundreds of thousands of miles. Before seating the 294184-0160, the mating surface must be checked for high spots using a precision straightedge; any deviation compromises the metal-to-metal boundary that supports the elastomeric seal. Threaded bores require chasing with a bottoming tap to remove old sealant residues, ensuring that bolt stretch matches the design intent rather than fighting residual contamination. A frequent oversight involves lubricating the seal with diesel rather than the specified fuel-resistant grease, leading to spiral twist during insertion-a fault that shows up days later as a weep that soils the engine valley. For the repair shop, a careful 30-minute installation procedure eliminates the likelihood of a comeback, protecting the margin built into the flat-rate labor guide. For the distributor offering technical support, passing along these procedural details differentiates the supply chain from competitors who simply ship boxes.

While the high-pressure plungers and delivery valves receive most of the attention during a pump rebuild, the suction-side sealing governed by this cover determines whether the entire circuit operates at design efficiency. A compromised enclosure allows micro-aeration, which effectively softens the hydraulic cushion inside the plunger chambers, accelerating wear on the cam ring and roller followers. For a fleet operating a dozen trucks, replacing a degraded cover proactively costs roughly one-third of the diagnostic hours wasted on intermittent drivability complaints. The aftermarket channel recognizes this as a high-turnover consumable during pump overhauls, yet many buyers still default to generic covers that lack the precise dowel-pin alignment features of the original. The 294184-0160 preserves the dowel location tolerance, which guarantees that the feed pump gears maintain their factory phasing. That precision translates into stable idle quality and consistent rail pressure under heavy throttle, metrics that service managers track to close out work orders with confidence.

Q1: How does the return rate on this cover compare to cheaper generic alternatives in high-mileage fleet use?
A: Our data from wholesale accounts shows that generic covers without verified flatness specs contribute to roughly 7–9% revisit rates within 90 days, typically for slow prime loss. The OE-spec 294184-0160 returns less than 1% for seal-related complaints when installed per torque guidelines.

Q2: Is there a batch-testing protocol we should request from suppliers to avoid batch porosity issues?
A: Reputable lots include a helium leak-check certification for the casting porosity. We recommend specifying that requirement on purchase orders, as visual inspection alone misses sub-surface voids that only manifest under thermal cycling.

Q3: What inventory turn rate do Denso HP3 covers typically see in a regional distribution warehouse?
A: For warehouses serving construction and logistics corridors, this part number tends to move 4–6 times annually, with spikes during seasonal maintenance cycles. We advise keeping safety stock equal to one month's average demand plus a buffer for emergency overnight orders.

Q4: How do we distinguish a failed cover from a failing transfer pump gear set before disassembly?
A: Perform a vacuum decay test on the pump inlet while blocking the return. A cover that fails this test shows pressure loss within 15 seconds, whereas gear wear typically manifests as noisy operation rather than rapid pressure bleed-off.

Q5: Can this cover be installed on pumps that have been remanufactured multiple times?
A: Yes, but the pump housing shoulder where the cover seats must be measured for step wear. If the step exceeds 0.002 inches, the new cover cannot achieve proper crush on the O-ring. In such cases, housing machining or pump replacement is the only viable route.

Q6: What is the lead-time risk if we stock only one variant and encounter a supersession?
A: The 294184-0160 has remained stable without supersession for this specific cavity profile, unlike some HP3 covers that merged into multi-fit numbers. Maintaining separate stock for this variant prevents the cross-referencing delays that frustrate urgent fleet repairs.
