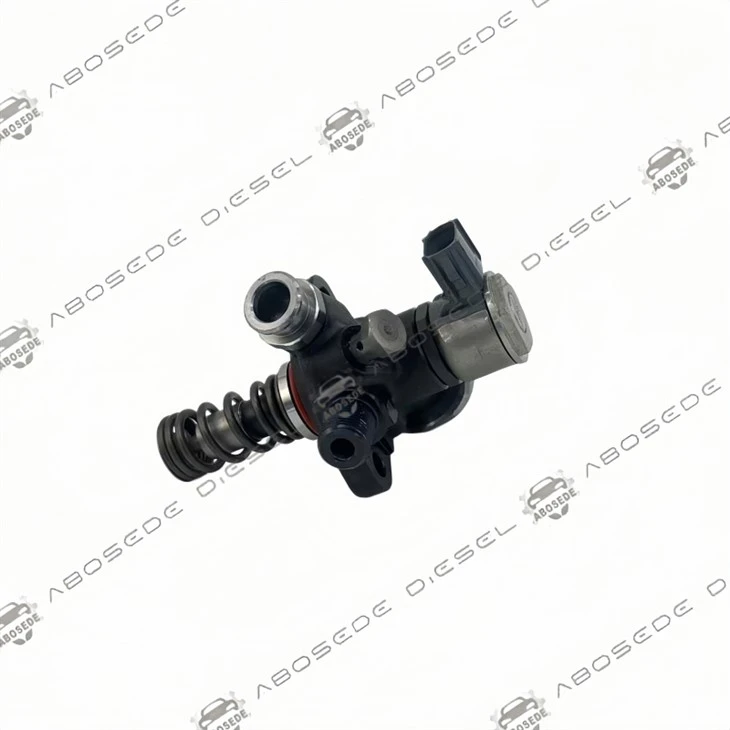

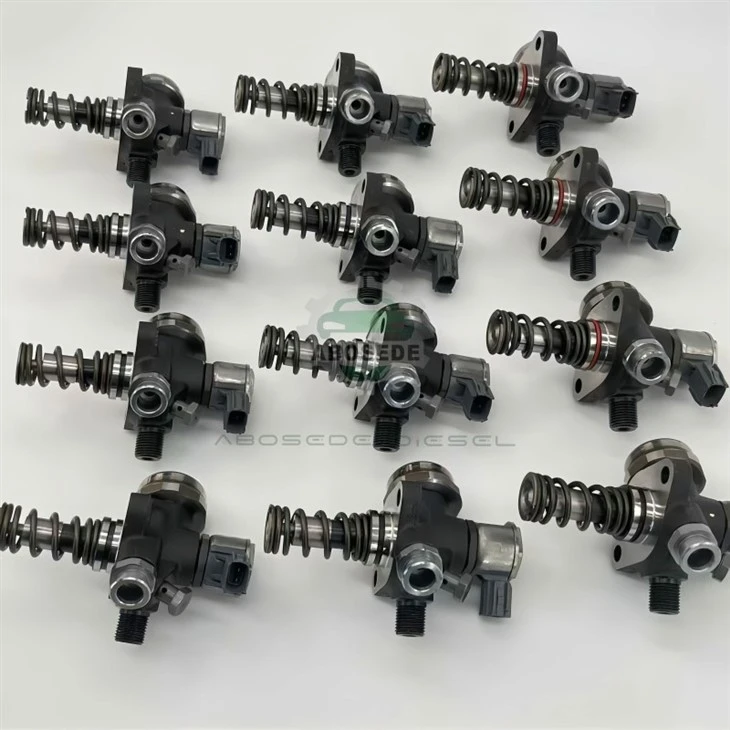

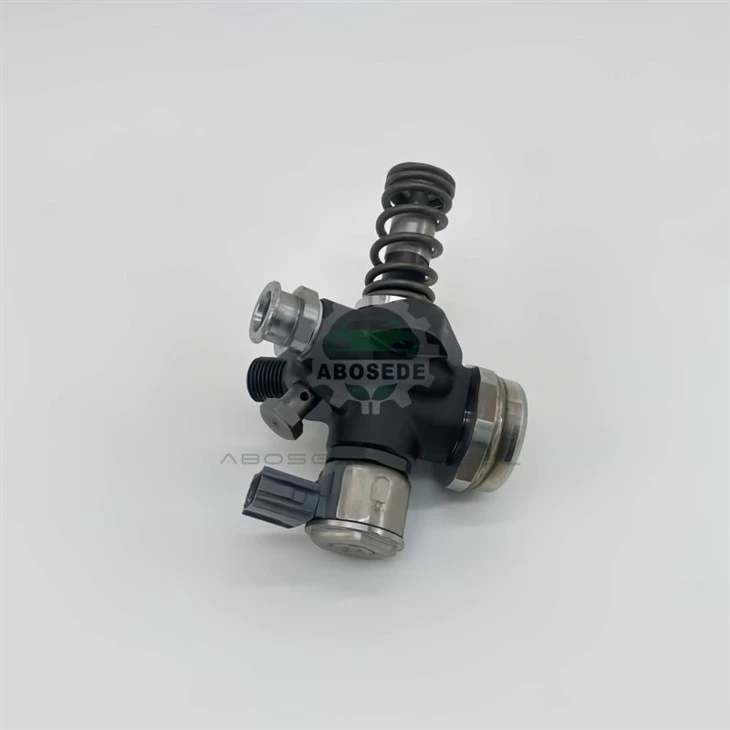

16700A020P / 299090-0040 HP5E Fuel Injection Plunger – Shop Inventory That Prevents Second Visits

That truck on your hoist with the rail pressure code? The owner already replaced the fuel metering valve last month. Now he is back, and he is not happy. Chances are the real culprit sits inside the pump body-the 16700A020P / 299090-0040 HP5E plunger. This is the component that translates cam rotation into compression work, and once its sealing margin degrades, your diagnostic screen becomes a guessing game of pressure deviation faults. For a repair shop, stocking this plunger is not about having a spare part. It is about closing jobs correctly the first time and protecting your labor margin from warranty comebacks.

The HP5E pump uses a radial plunger arrangement, and this particular unit carries two cross-referenced numbers: 16700A020P (OEM) and 299090-0040 (Bosch interchange). The working surface is ground to a specified outer diameter that matches the pump barrel with a clearance measured in single-digit microns. That clearance is the entire story. Too tight, and the plunger seizes when thermal expansion kicks in. Too loose, and high-pressure fuel escapes past the plunger head before it ever reaches the delivery valve. The stroke length determines how much fuel gets displaced per cam lobe revolution, which directly affects the rail pressure slope during cranking. Shops that rebuild HP5E pumps know these numbers by heart because even a 5‑micron deviation changes the injection timing compensation values that the ECU expects from the fuel quantity adjuster.

This plunger shows up in Denso common rail systems fitted to medium‑ and heavy‑duty Japanese trucks-Isuzu 6HK1 and 6WG1, Hino J05E and J08E, plus certain Mitsubishi Fuso models. The same HP5E architecture also appears in some European off‑highway machinery where Denso supplied the pump module. What that means for your parts counter: one plunger SKU covers multiple engine families, reducing the need to stock separate pump heads for every chassis variation. When a fleet operator rolls in with a downed unit, you are not digging through three different catalogs to match a plunger to a pump serial number. You pull the 299090-0040 from your shelf, confirm the cam ring condition, and get the repair moving while the customer still has coffee in hand.

Most premature plunger failures trace back to two workshop oversights: contaminated assembly environment and neglected tappet inspection. The plunger rides against a push‑pull coupling that transmits cam lobe motion. If that coupling shows wear ridges or uneven contact patterns, the new plunger experiences side‑loading during each compression stroke. That side‑load creates an elliptical wear pattern on the plunger surface within the first 500 operating hours, reopening the internal leakage path you just eliminated. Before seating the 16700A020P, run a bore gauge through the pump barrel to verify ovality stays within factory rebuild limits. Also, flush the high‑pressure galleries with filtered diesel until the drain fluid runs clear-abrasive particulates trapped in dead volumes act as lapping paste against fresh steel surfaces. These steps add twenty minutes to the job but cut your callback rate substantially.

The full HP5E pump assembly carries a price tag that makes fleet managers hesitate. Swapping just the HP5E plunger addresses the primary wear point while leaving the pump housing, cam ring, and bearings intact-provided those components pass inspection. This approach lowers the repair estimate enough that customers approve the work immediately rather than shopping around for cheaper alternatives. For your shop, that translates to better bay utilization and fewer stalled jobs waiting for customer authorization. Within the common rail fuel system, a fresh plunger restores the hydraulic efficiency that the suction control valve relies on to maintain target rail pressure. Injector response stabilizes, cranking duration shortens, and the engine regains its original torque curve. That is the outcome your customer actually pays for-not a parts receipt, but a truck that starts and pulls without drama.

Q1: How does the plunger surface finish impact our rebuild cycle time if we re‑use the existing barrel?
A: The barrel bore wears into an oval pattern over time. Even a perfect plunger surface cannot seal against an out‑of‑round bore. We recommend measuring barrel ovality before committing to a plunger‑only rebuild. If ovality exceeds factory spec, the new plunger will fail prematurely, and you will eat the labor on a second tear‑down.

Q2: We see fluctuating rail pressure after plunger replacement. Is the new part defective or is something else at play?
A: Fluctuation typically points to air ingestion on the suction side or a failing pressure control valve, not the plunger itself. The plunger either builds pressure or it does not-there is no intermediate state. Check the fuel pre‑supply pump and suction line for restrictions before blaming the new component.

Q3: For bulk stocking, does the 16700A020P share dimensions with the 294050‑0080 series plungers used in other Denso pumps?
A: No. The stroke length and plunger diameter differ between HP5E and HP3/HP4 pump families. Cross‑fitting a non‑matching plunger alters the fuel delivery map and will trigger rail pressure plausibility faults. Always verify pump model designation against the 299090-0040 reference.

Q4: How many operating hours can a shop realistically expect from this plunger under normal fleet duty cycles?
A: With clean fuel and functional water separators, the plunger typically exceeds 8,000 to 10,000 hours. The failure trigger is almost always fuel contamination-water pitting or abrasive wear from poor filtration-not material fatigue. Your customer's filter maintenance schedule determines plunger life more than the part itself.

Q5: Does installing this plunger require recalibration of the fuel injection pump timing on HP5E systems?
A: HP5E pumps use a fixed cam ring and ECU‑controlled injection timing via the spill valve strategy. Mechanical timing remains unchanged during plunger replacement. However, you should perform a rail pressure learning reset using diagnostic software to clear learned correction values from the worn plunger behavior.

Q6: What is your return policy on bulk orders if we find dimensional mismatch with our pump cores?
A: We accept returns on uninstalled, factory‑sealed units within 30 days of delivery. For bulk wholesale accounts, we provide sample matching services-send us your worn plunger or pump core, and we verify cross‑reference before you commit to a full case quantity.
