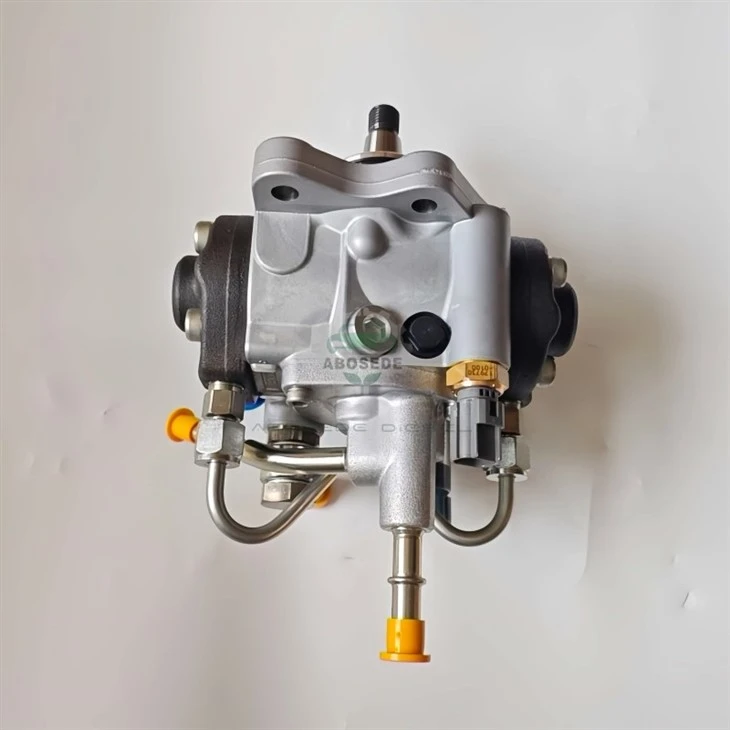

High-Pressure Fuel Pump 294000-2061 | Direct Replacement For Denso Common Rail Systems

This Fuel Injection Pump 294000-2061 delivers the hydraulic muscle required to sustain precise rail pressures within modern common rail diesel engines. Engineered as a direct factory-spec replacement, this unit restores the delicate balance between fuel delivery volume and electronic command, addressing drivability complaints ranging from sluggish throttle response to hard-start conditions in commercial truck fleets and stationary power packs.

The 294000-2061 pump body carries a compact envelope that fits within tight engine bay clearances, with a housing constructed from corrosion-resistant treated alloy to endure under-hood thermal cycling. Internal clearances between the pumping plunger and its cylinder wall are held to micron-level tolerances, enabling consistent volumetric efficiency even as fuel temperatures climb past 70°C. The integral feed pump section draws fuel from the tank and supplies it to the high-pressure chamber, while the metering unit-an electrically actuated solenoid-governs inlet flow in response to pulse-width modulated signals from the engine control unit. Mechanical stop pins and alignment dowels are precisely located on the mounting flange, ensuring that drive gear mesh remains within factory angular specifications to prevent premature bearing fatigue.

This 294000-2061 pump directly corresponds to powertrains found in medium-duty Isuzu forward-cab trucks, Hino 300-series workhorses, and various agricultural tractors equipped with Denso HP3 or HP4 fuel system architectures. It also replaces certain Mitsubishi Fuso engine variants where the original pump exhibits plunger scuffing due to fuel contamination. Workshop operators should note that although the physical interface remains consistent across several engine families, the internal pressure control logic is hard-calibrated for a specific displacement range. Cross-referencing the OEM 8-digit engineering code against the donor vehicle's data plate remains the definitive method to confirm correct hydraulic output characteristics before committing to installation.

Replacing this pump demands a methodical approach that begins with disconnecting the battery ground and relieving any residual pressure within the high-pressure fuel rail-a safety measure often underestimated. After unbolting the old unit, meticulously inspect the drive gear splines for fretting corrosion; any visible wear on the gear teeth warrants concurrent replacement to avoid transmitted vibration to the new pump's shaft bearing. During reassembly, orient the pump's timing mark to align with the engine's top-dead-center reference, then torque the retaining nuts in a staggered sequence to distribute clamping force evenly. Post-fitment, the entire low-pressure circuit must be charged using a vacuum filler or hand-primer until fuel streams free of air pockets from the return port. Failure to purge entrained air will produce aeration that mimics catastrophic pump seizure, leading to unnecessary diagnostic detours.

Deploying a fresh 294000-2061 pump during a comprehensive fuel system rebuild constitutes a defensive maintenance move that shields downstream components from collateral destruction. In a common rail layout, the pump sits upstream of the rail pressure sensor and the injector solenoid valves; when its internal sliding members degrade, they shed microscopic ferrous particles that travel directly into the injector nozzles, permanently altering spray patterns and increasing particulate emissions. By contrast, a proactive pump swap-especially when accompanied by new filter elements and a flush of the return lines-restores the hydraulic stiffness needed for precise injection-timing modulation. This directly translates to restored torque output at lugging speeds and a measurable reduction in black smoke during acceleration, outcomes that resonate with fleet owners tracking cost-per-mile metrics.

Q1: Does the 294000-2061 pump include the fuel temperature sensor, or must that be purchased separately?
A: The fuel temperature sensor is not integrated into this pump assembly. It remains a separate component mounted either on the fuel filter housing or along the return line in most chassis applications. You will need to reuse the existing sensor from your old pump or order a new one if the original shows erratic resistance readings during warm-up cycles.

Q2: What is the acceptable run-out tolerance for the drive shaft coupling when installing this pump?
A: The maximum permissible radial run-out at the coupling flange should not exceed 0.05 mm when measured with a dial gauge. Exceeding this limit induces cyclic stress on the pump shaft seal, leading to early lubricant weepage. If your engine's gear housing shows signs of bore wear, address that underlying condition before mounting the new pump.

Q3: Can biodiesel blends higher than B20 cause accelerated wear inside this high-pressure pumping element?
A: Yes, biodiesel's higher viscosity and reduced lubricity compared to petroleum diesel can increase plunger friction, especially in cold ambients. While the 294000-2061 seals resist B20 swelling, extended operation on B30 or higher may necessitate shortened oil-change intervals for the fuel itself. We recommend maintaining a minimum fuel lubricity rating of 460 microns (HFRR) to safeguard the pumping mechanism.

Q4: After installation, the engine starts fine but loses power climbing grades-could this be pump-related?
A: This symptom pattern typically points to insufficient delivery volume at high load, which may stem from air ingestion on the suction side or a partially blocked strainer inside the tank pickup. However, it can also occur if the replacement pump's flow control valve requires a teach-in procedure through the diagnostic tool to relearn its null position. Verify the actual rail pressure vs. commanded value using live data; a growing deviation under load confirms hydraulic insufficiency.

Q5: What is the expected service interval for this pump in a municipal waste collection truck with frequent idling?
A: Severe-duty cycles with extended idle periods accelerate wear due to reduced fuel flow for cooling. In such applications, expect a functional life of approximately 4,000 to 5,000 operating hours before observing pressure drift. Implementing a fuel sampling schedule to monitor particle counts can provide early warning and extend change-out planning.

Q6: If I order multiple units for my shop inventory, do they share the same calibration batch number for consistent output?
A: Each pump is individually flow-tested at the factory and stamped with a unique test code. While batch-to-batch variation is tightly controlled, we advise against mixing pumps from different production lots on the same engine family without verifying the flow deviation margin using a test bench, especially in tuned applications.
