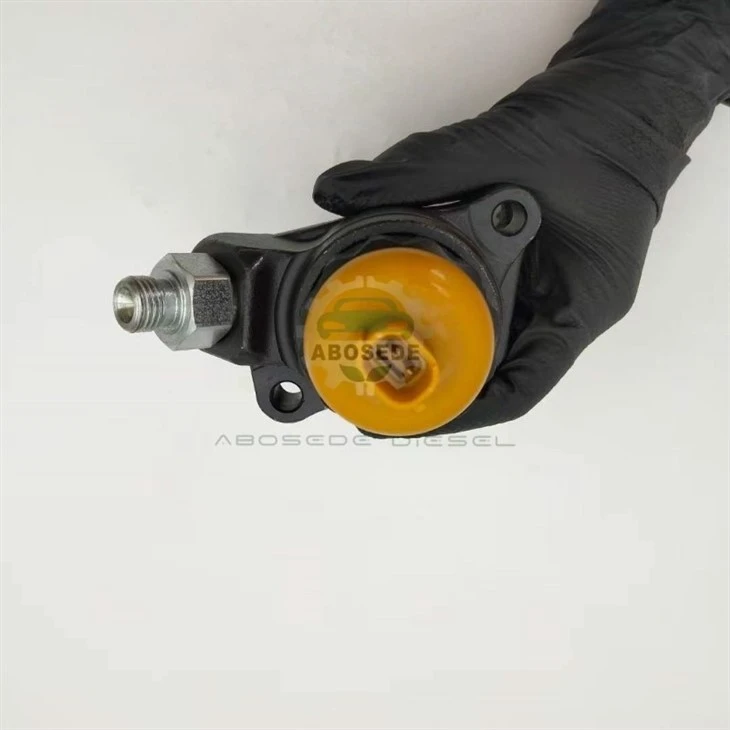

HP0 Plunger Assembly 094040-0360 – Yellow-Coded Single PCV Valve For Universal Denso Pump Heads

This component overview focuses on the HP0 Plunger Assembly, carrying the factory reference 094040-0360, which incorporates a single PCV valve layout and a yellow identification marking for simplified visual sorting during pump overhauls. Engineered as a direct replacement for the pressurisation pair inside Denso HP0-series high-pressure fuel pumps, this unit dictates the compression characteristics and fuel delivery timing essential for stable common rail operation. For workshops across African and Southeast Asian markets dealing with construction machinery, agricultural tractors, and heavy haulage trucks, this plunger offers a standardised rebuild path without the complexity of matching multiple pump variant codes.

The 094040-0360 plunger carries a universal application scope, meaning one part number serves a family of Denso pump bases rather than a single exclusive model. Directly compatible pump assemblies include 094000-0204, 094000-0360, 094000-0460, and 094000-0561 – codes frequently encountered on Japanese-origin engines powering Hitachi excavators, Komatsu loaders, Isuzu truck fleets, and Hino bus units operating across developing regions. The yellow band applied to the plunger skirt provides a rapid visual reference during bench work, helping technicians distinguish this single-PCV iteration from dual-valve versions that share similar external dimensions but differ in internal metering behaviour. Parts distributors stocking this single SKU can respond to urgent field repair requests without holding an extensive range of pump-specific kits, reducing both warehouse space and write-off risk from slow-moving lines.

Fuel quality across African and Southeast Asian markets frequently contains higher sulphur content and variable water levels compared to Euro-spec grades, placing additional stress on close-clearance pump components. This plunger receives a specialised surface hardening treatment applied to the bearing-grade steel substrate, increasing resistance against abrasive particles suspended in locally sourced diesel. The sliding mate – the barrel bore – maintains factory-defined ovality and roundness tolerances to preserve the hydraulic seal during the compression stroke. When the plunger rises under cam actuation, fuel trapped above it compresses to rail pressures exceeding 1,600 bar; any loss of clearance due to scoring or galling directly reduces volumetric efficiency, manifesting as extended crank times, unstable idle, and elevated return-line flow. Replacing a worn plunger with the 094040-0360 unit restores the original pump displacement, allowing the single PCV valve to modulate intake flow precisely according to ECU current commands.

Installing this plunger assembly requires methodical preparation and cleanliness – a factor often underestimated in remote workshop environments. The barrel must undergo careful borescope inspection to detect vertical scoring, pitting, or localised discolouration from overheating; any bore damage will rapidly destroy a new plunger regardless of its surface quality. During assembly, technicians should immerse both plunger and barrel in filtered automotive diesel to create a boundary film, then gently insert the plunger vertically – it should descend smoothly under its own mass, without any wobble or catch. Overtightening the pump head securing bolts frequently distorts the barrel housing, reducing the designed clearance and inducing premature seizure after thermal expansion. A torque wrench set to manufacturer-recommended values is mandatory here; tactile estimation alone leads to inconsistent results. Following reassembly, a test-stand validation measuring delivery volume across 200, 600, and 1200 pump revolutions confirms whether the PCV valve response aligns with Denso baseline curves, avoiding on-engine troubleshooting later.

Across mining sites, plantation operations, and construction projects, equipment downtime imposes heavy financial penalties – often exceeding the component cost within hours. Rebuilding an HP0 pump with this plunger consumes significantly less capital than sourcing a complete new pump assembly, particularly when import lead times for fully built units stretch beyond two or three weeks. The 094040-0360 plunger enables local workshops to perform same-day turnaround for inoperable machines, returning hydraulic efficiency to worn pumps without replacing perfectly serviceable housings or control solenoids. For wholesale suppliers catering to these markets, offering this universal plunger reduces the risk of dead stock while addressing a consistent demand stream – HP0 pumps fitted to mid-2000s Japanese construction equipment continue to dominate secondary markets across Africa and SE Asia, guaranteeing steady turnover for well-priced inventory.

Q1: Can this plunger work in pumps originally built with dual PCV valves if we disable one valve?
A: Not recommended. The ECU software and hydraulic passages differ between single and dual configurations. Disabling one valve does not replicate the correct intake timing; the pump will exhibit rail pressure oscillations and may trigger DTCs related to fuel metering.

Q2: What is the most reliable field check to determine plunger wear before dismantling?
A: Measure return fuel flow from the pump at hot idle. A reading exceeding 80–100 ml per 30 seconds, compared to a known-good baseline of roughly 30–40 ml, strongly suggests plunger-barrel clearance has exceeded serviceable limits.

Q3: How does poor fuel filtration affect this plunger's operational lifespan?
A: Directly and severely. Abrasive particles from contaminated diesel act as lapping compound between plunger and barrel, accelerating clearance growth. In regions where fuel quality is inconsistent, fitting an additional 2-micron pre-filter often doubles plunger service life.

Q4: Which pump base codes share the same plunger dimensions as 094040-0360?
A: Confirmed compatible bases include 094000-0204, 094000-0360, 094000-0460, and 094000-0561. Always cross-check the existing pump's data plate before ordering – some visually similar HP0 variants use different lift profiles.

Q5: Is it mandatory to replace the PCV valve simultaneously when fitting this plunger?
A: Not mandatory, but prudent. A sluggish or worn PCV valve will compromise the benefit of a new plunger by limiting control response. Test the existing valve solenoid resistance and plunger movement; replace if either falls outside Denso specifications.

Q6: What is the typical workshop labour time for a complete plunger swap on an HP0 pump?
A: For an experienced technician working on a bench with proper tooling, roughly 2.5 to 3.5 hours from pump removal to test-stand validation. In-field removal and refitting add additional vehicle access time depending on chassis layout.
