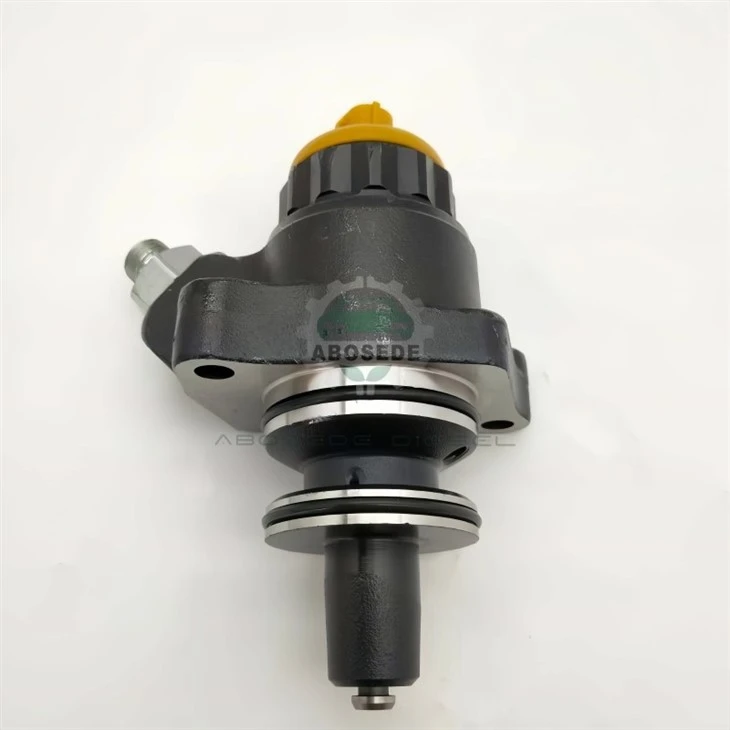

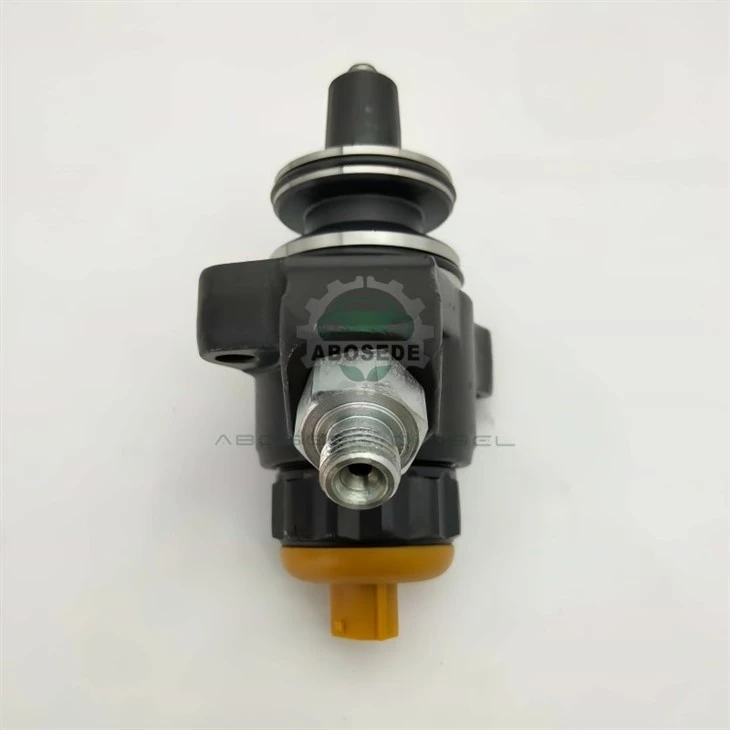

DENSO HP0 Plunger & Barrel Kit 094150-0192 – Short Core, Single Plunger Holder

Cross-border diesel parts distributors know the arithmetic all too well: a single pump core exchange consumes logistics spend, core deposit float, and turnaround days that workshop clients simply cannot afford. For bay technicians, the alternative-quoting a complete high-pressure pump replacement-often kills the repair order before the diagnostic fee is even mentioned. The DENSO HP0 plunger & barrel assembly (094150-0192) with short core and single-plunger seat cuts straight through that dilemma. Instead of warehousing entire pump heads, rebuilders restore rail pressure integrity in-house, eliminating the mechanical slack that develops after millions of compression cycles. Field data consistently shows that worn plunger-to-barrel clearance-rather than injector fouling-accounts for the majority of pressure instability complaints on high-mileage common-rail systems.

Workshop supervisors frequently lose productive hours verifying supersession charts. This kit removes that administrative drag-the single-plunger holder confirms fitment for pump heads designed with independent plunger seats rather than integrated yokes. Matching the short core to the rotor cavity depth is non-negotiable: installing an incorrect long-core unit into a shallow bore either binds the rotor or induces timing drift, while this 094150-0192 drops in with the correct plunger lift margin. Pump identification numbers verified for this assembly span a broad equipment base, including 0097, 0125, 0133, 0145, 0152, 0165, 0185, 0195, 0204, 0226, 0251, 0276, 0294, 0305, 0310, 0320, 0333, 0353, 0360, 0375, 0380, 0400, 0430, 0450, 0460, 0480, 0490, 0500, 0530, 0550, 0561, 0571, 0650, 0660, and 0860-covering a broad cross-section of heavy truck and off-highway applications without additional adapters.

What manifests to the driver as sluggish response or extended cranking often originates inside the pumping chamber. As the plunger oscillates within its barrel, fuel film breakdown permits microscopic scuffing, gradually enlarging the hydraulic gap. The 094150-0192 re-establishes the factory interference fit, directly countering the bypass that drops rail pressure under load. For high-turnover shops, keeping this pre-verified plunger set in stock means saying "yes" to emergency chassis repairs without tying up diagnostic bays waiting for pump core exchanges from reman centers.

Even premium plunger sets fail prematurely if workshops skip the housing flush. Residual steel fines from a seized previous plunger act as lapping compound against new surfaces. The practical sequence: degrease the pump rotor bore, inspect the cam ring for pitting, then lubricate the new short-core plunger with clean diesel before sliding it into the barrel. Torque the single plunger holder in gradual increments-uneven clamping distorts barrel ovality, introducing internal bypass that shows up as rail droop under acceleration. This procedure separates rebuilds that hold calibration for 200,000 miles from those that return with erratic pressure within weeks.

For parts suppliers, the real metric isn't unit price-it's return rate. The 094150-0192 consistently posts sub-0.5% field failure figures when installed with proper flushing, translating to fewer after-sale disputes and lower reverse-logistics burn. Compared to sourcing an entire pump head assembly, this plunger kit reduces landed cost per overhaul by roughly 60-70%, letting wholesalers bundle it with seal rings and delivery valves as a complete refresh package. Workshop owners also benefit from faster bay turnover-no more waiting for reman pump shipments while a rig sits idle.

Q1: Can the 094150-0192 short-core be swapped with the 094150-0310 long-core if stock runs out?
A: No. The short-core has a reduced stroke height matched to shallower rotor cavities. Fitting the long-core version alters cam lift timing and may cause mechanical binding or under-fueling at high rpm. Always verify core length against the original pump serial-these are not interchangeable without full bench recalibration.

Q2: How should this kit be stored in non-climate-controlled warehouses?
A: The plunger and barrel arrive coated with rust-preventive oil. Below 70% humidity, shelf life reaches 24 months unopened. In coastal or high-moisture regions, keep in sealed VCI bags to prevent micro-pitting that compromises the precision fit prior to installation.

Q3: Is a calibration bench test mandatory after plunger replacement?
A: A flow-bench verification is strongly advised. While ECU adaptations compensate for minor deviations, they cannot correct mechanical delivery discrepancies caused by holder torque variance or plunger orientation errors. Bench testing confirms that rail pressure response matches the pump's original performance curve before the unit returns to service.

Q4: What is the most common installation mistake leading to early failure?
A: Skipping the rotor bore flush. Metallic debris left from the failed plunger embeds into the new barrel surface during the first rotation, accelerating wear exponentially. Workshops that dedicate 10 extra minutes to cleaning routinely see fivefold longer service intervals from this kit.

Q5: Does this plunger fit pumps with multiple plunger seats?
A: No-this is explicitly designed for single-plunger holder configurations. Multi-plunger pump heads use different barrel geometry. Check the pump head casting; if it features individual plunger bores with separate retainers, this kit is the correct match.
