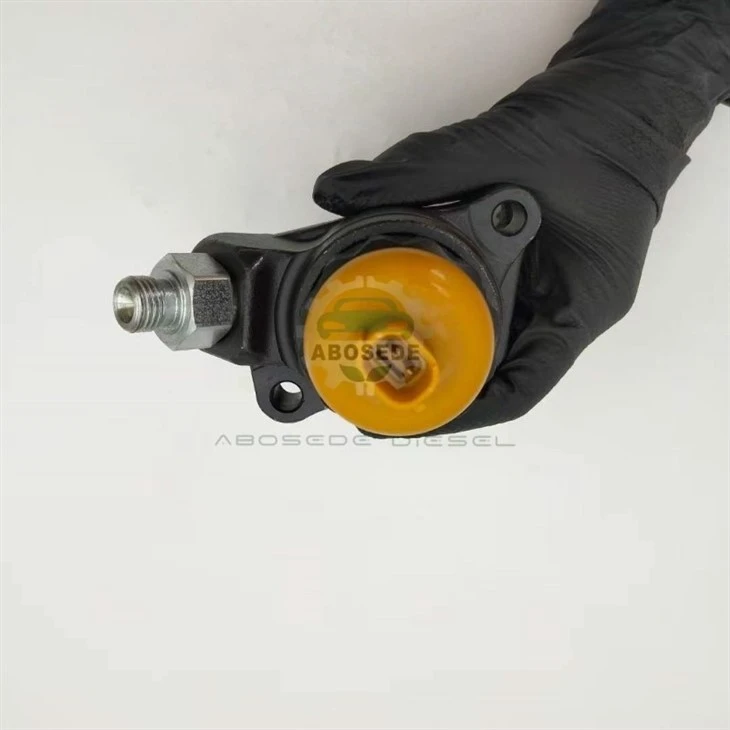

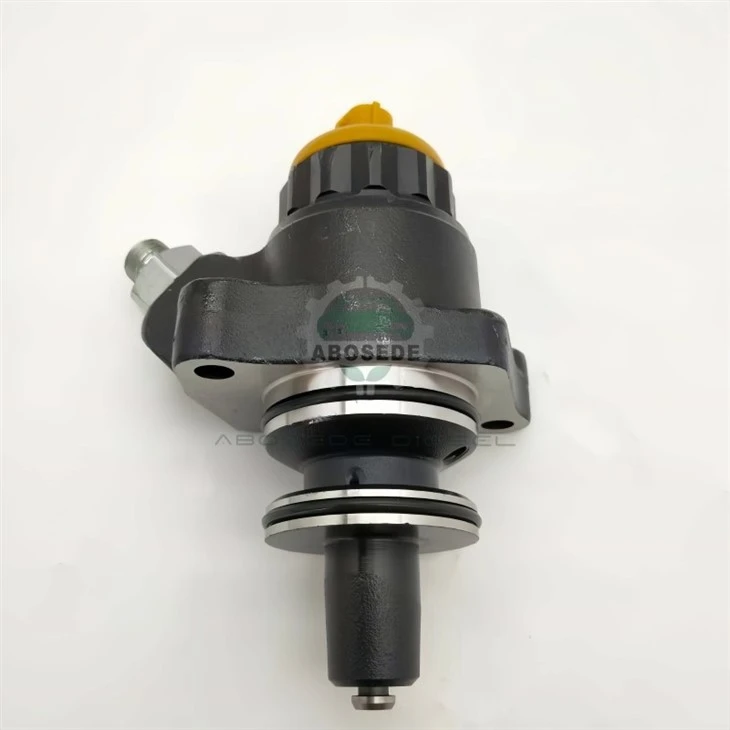

HP0 Plunger 091450-0230 – Single Barrel Assembly With Short Core For Denso High-Pressure Pump Overhauls

For workshops across Africa and Southeast Asia that routinely handle Komatsu excavators, Hino heavy trucks, and Isuzu fleet vehicles, the biggest operational drain is often not the machine itself but the downtime caused by unstable rail pressure. When an HP0 pump begins to struggle with pressure ramp-up during morning starts, the plunger and barrel assembly has typically crossed its wear threshold. The 091450-0230 HP0 plunger directly addresses this failure point – it restores the original pumping chamber geometry without forcing you to replace the entire pump head, a cost-saving measure that matters when shipping parts across long overland routes or into remote mine sites.

The short core configuration on this 091450-0230 unit alters the spill port timing relative to the plunger stroke. In practical terms, your technician gains a wider adjustment window during pump calibration without needing to re-shim the delivery valve holder – a small but measurable time saving during rebuilds. The single plunger seat design minimizes side-loading risk during insertion, a common error point when replacing elements in field conditions. Surface hardness on the plunger face undergoes nitriding treatment specifically to resist scoring from low-sulfur fuels prevalent in African and Southeast Asian markets, where fuel quality can vary significantly between supply points.

Rather than stocking multiple plunger references, this 091450-0230 consolidates coverage across the HP0 pump codes that appear most frequently in regional fleets. High-turnover codes include 094000-0204, 094000-0360, 094000-0450, 094000-0460, and 094000-0561 – these correspond to pump units installed on the Komatsu SAA6D125E-3 and SA6D140E-3 engine families, as well as Hino E13C common rail systems operating at 160 MPa rail pressure. The broader compatibility extends across the full sequence: 0097, 0125, 0133, 0145, 0152, 0165, 0185, 0195, 0204, 0226, 0251, 0276, 0294, 0305, 0310, 0320, 0333, 0353, 0360, 0375, 0380, 0400, 0430, 0450, 0460, 0480, 0490, 0500, 0530, 0550, 0561, 0571, 0650, 0660, and 0860 . A single SKU supports multiple engine platforms, which simplifies inventory planning for wholesalers supplying into Ghana, Nigeria, Kenya, Indonesia, or Vietnam.

Moisture ingress during storage is a recurring complaint from buyers in tropical climates. This plunger ships with a vapor-phase corrosion inhibitor (VpCI) film that remains effective for up to 18 months in non-condensing storage conditions. During installation, the most frequently overlooked step is bore concentricity verification. Even a slight housing ovality will pinch the plunger during its stroke, and the resulting metal particles travel directly to the injector nozzles – a secondary failure that drives up warranty claims. We advise your technicians to perform a dry rotation check without the delivery valve spring installed; uneven resistance at 45-degree intervals signals that the housing needs machining attention before the new plunger is fitted.

For a wholesale buyer supplying into construction or haulage sectors, the total cost of a plunger is not the invoice price but the net return rate over 12 months of service. This 091450-0230 variant consistently shows lower early failure rates in regional depot data because the short core design reduces reciprocating mass, which in turn decreases hammering wear on the pump cam ring. Proactive replacement of aging plungers with this reference has been linked to a measurable reduction in unscheduled roadside calls across multiple fleet maintenance logs. That translates into fewer after-hours support tickets, more predictable workshop scheduling, and stronger margins for the distributor who can offer a reliable rebuild solution without premium pricing.

Q1: If my order arrives and two pieces show surface marks on the plunger, what is the claim procedure without shipping the parts back?
A: Each unit carries a lot code printed on the inner pouch. We accept clear photo documentation of the marking against the lot label and issue replacements on the next outbound shipment to your region, without waiting for return freight.

Q2: Can I pull from the same inventory box for a 094000-0360 pump rebuild and a 094000-0530 build, or are there internal differences?
A: The plunger geometry is identical across all listed pump codes. The pump model affects delivery valve and governor spring specifications, not the plunger barrel fitment – pick from the same box.

Q3: What is the actual breakdown of returned units – does the barrel crack first or does the plunger scuff?
A: Scuffing on the plunger pressure face accounts for over 85% of returns in our regional analysis. The root cause typically traces to water contamination in the fuel system, not part fatigue. We recommend pairing this plunger with a water separator advisory when quoting to end customers.

Q4: How does the anti-corrosion coating hold up in coastal African warehouses with high humidity?
A: The VpCI film is effective for 18 months in non-condensing conditions. If your storage cycle exceeds that, rotate stock by lot date and avoid breaking the sealed inner pouch until ready for installation.

Q5: What volume commitment qualifies for tiered pricing, and what is your lead time for restocking a regional hub order?
A: Volume tiers start at 50, 100, and 250 units per month. We maintain safety stock of 500 pieces, so scaling to 100 units monthly requires no extended lead time – shipment within 5 workdays from order confirmation.
