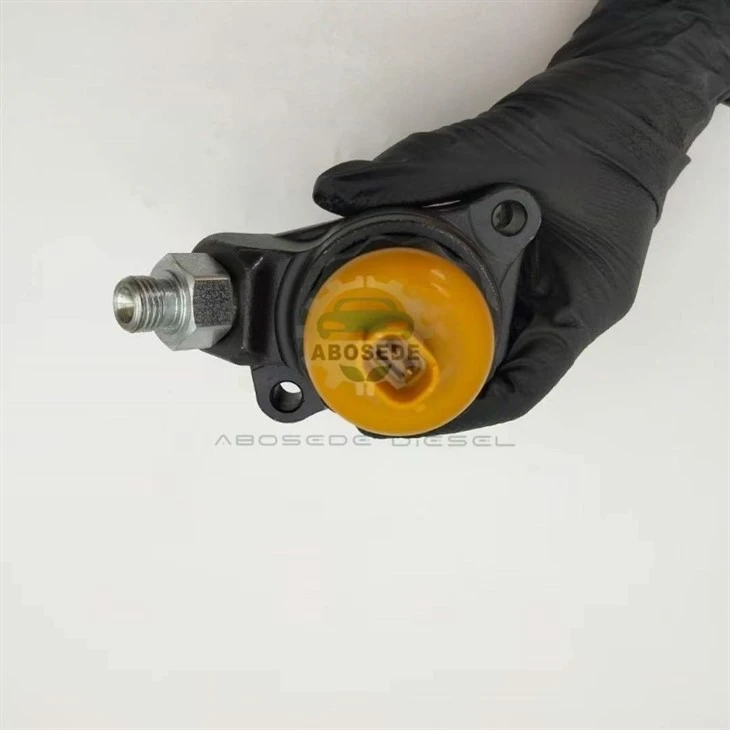

HP0 Plunger & PCV Valve Kit – 094040-0081 (Yellow Valve)

When your workshop deals with HP0 pumps day in, day out, you know the usual suspects-erratic rail pressure, hot start struggles, and that telltale drop in machine power under load. This kit, carrying OE reference 094040-0081, bundles the plunger barrel assembly with a single yellow-coded PCV solenoid into one replacement package. It is built for the Denso HP0 common rail platform, a system found across thousands of excavators, loaders, and off-highway trucks in operation today.

Inside the package: one precision-ground plunger matched to its barrel, plus the integrated PCV (pressure control valve) with yellow anodised body. The colour coding is not decorative-it distinguishes this particular solenoid variant by its electrical response curve and flow coefficient. Operating voltage spans 12V to 24V DC, covering both standard and heavy-duty electrical architectures common on Japanese and European chassis. All dynamic seals are pre-assembled using FKM (Viton) compound, rated for continuous exposure to diesel fuel at operating temperatures up to 120°C. The plunger stroke and barrel clearance follow Denso's original dimensional tables, so no on-site lapping or selective fitting is required.

This assembly carries a universal designation for the HP0 pump family, but "universal" in real workshop terms means it drops into any pump housing that originally accepted 094040-0081. Primary applications include the Komatsu PC400-7 and sister models in the -7 and -8 series, along with wheel loaders such as the WA470 and WA500. Beyond construction tracks, the same pump platform appears on agricultural combines, stationary generators, and marine auxiliary engines that rely on Denso HP0 injection. For shops servicing mixed-brand fleets-Komatsu, Hino, Isuzu, or even some earlier Volvo off-road units-this single reference number replaces multiple older valve part numbers, simplifying your shelf stocking without covering every permutation.

Wear does not announce itself gradually. One morning the machine starts, the next it cranks for twenty seconds before catching. The real culprit is often two-fold: plunger barrel clearance opens beyond 6 microns, allowing high-pressure fuel to bleed back into the feed circuit, while the PCV solenoid's internal armature develops stiction from varnish deposits. This kit addresses both failure points simultaneously. The new plunger restores the pumping chamber seal, and the fresh valve restores precise inlet metering. We have observed that replacing the pair together cuts diagnostic time in half compared to swapping one component and then chasing the other a week later. It also prevents secondary damage-lean rail conditions force injectors to over-stroke, which burns nozzle tips and turns a pump repair into an injector overhaul.

Here is what our field data from Southeast Asian workshops tells us: most premature failures trace back to three things-dirty fuel, dry assembly, and undertorqued PCV bolts. Before you fit this unit, flush the pump cavity with clean diesel and inspect the valve seat for microscopic pitting using a magnifying glass. Coat the plunger surface with fuel during insertion; never use engine oil or grease, as those additives alter the break-in friction profile. Torque the PCV retaining screws to the factory figure (typically 9–11 Nm, but verify against your pump casting). After installation, prime the low-pressure side manually until fuel flows clear from the return line, then crank in 10-second bursts with injectors disabled. If rail pressure does not climb to 20 MPa within three cranking cycles, re-check your PCV connector-corroded pins are a recurring headache in humid environments.

Q1: Does this yellow PCV valve work on HP0 pumps that originally had a grey or black valve?
A: No. The yellow variant (094040-0081) has a specific ampere-turn ratio. Swapping colours alters the PCM's current control map, resulting in incorrect fuel metering. Always confirm your original valve colour before ordering.

Q2: Can I install just the plunger and reuse my old PCV solenoid?
A: Technically possible, but we advise against it. A worn solenoid armature responds slower than new, which masks the plunger's restored performance. Workshops that replace both together report fewer than 2% return visits for pressure-related faults within six months.

Q3: What fuel cleanliness level do you recommend before fitting this assembly?
A: Use a 5-micron absolute filter on the feed line during installation. Particles larger than 10 microns trapped between the plunger and barrel will score the mating faces within the first running hour, regardless of the new component's quality.

Q4: Are these units individually bench-tested before packing, or batch-sampled?
A: Every assembly undergoes a dry leak check and solenoid actuation test on automated fixtures. Batch sampling covers dimensional conformance, but each valve receives an electrical response validation.

Q5: How does the price compare to sourcing genuine Denso from the local dealer?
A: Typically 35–45% below dealer list, depending on your shipping destination. The trade-off is you manage lead times-we ship ex-warehouse within 48 hours, whereas dealer orders may backorder for weeks during peak mining seasons.

Q6: What is the usual replacement interval under heavy excavation duty-2,000 or 4,000 hours?
A: Under severe dust and load conditions, most shops schedule HP0 pump inspection at 2,500 hours. If rail pressure deviation exceeds 5 MPa at rated speed, change this kit pre-emptively. Waiting until 4,000 hours often involves injector replacement as collateral damage.
