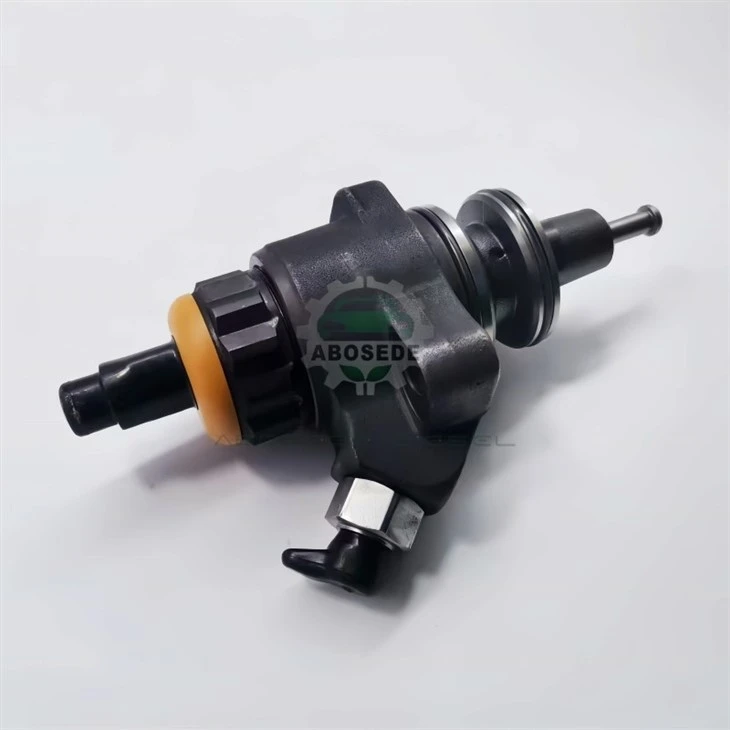

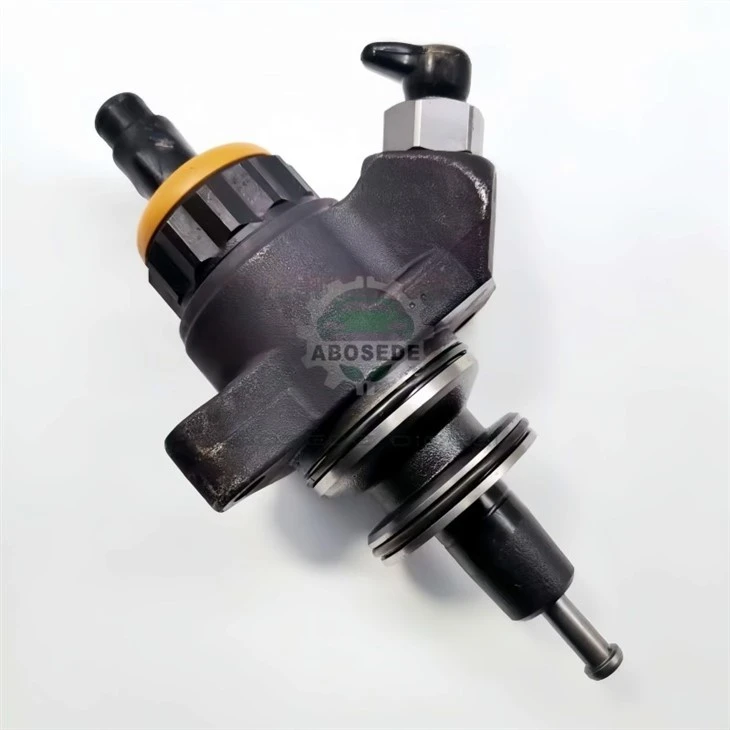

094150-0240 HP0 Single Plunger Assembly (Long Core) – Field Service Logic For Denso Pump Models 094000

When a Class 8 tractor loses rail pressure mid-route, the service bay that answers the call faces two immediate pressures: getting the unit rolling again, and doing so without eating into the entire repair margin through parts over-spend. The 094150-0240 long core plunger enters that equation as a targeted mechanical correction, not a speculative overhaul. This single plunger seat component directly replaces the worn pumping element inside Denso HP0 rotary pumps, allowing workshop owners to sidestep the logistics drag of core exchanges and reman lead times.

From a parts manager's perspective, carrying a full suite of complete pump assemblies for every variant is inventory suicide. The 094150-0240 collapses that footprint. It services a broad spectrum of HP0 pump heads-specifically 094000-0055, 0061, 0213, 0235, 0243, 0260, 0284, 0340, 0392, 0410, 0420, 0440, 0580, 0600, 0620, 0630, 0670, 0700, 0710, 0720, 0730, 0740, 0750, 0760, and 0770-with a single SKU. That coverage reduces the capital tied up in slow-moving stock and frees up shelf space for faster-turn consumables.

Pressure inconsistencies in the fuel rail rarely announce themselves with a clean fault code. What reaches the workshop is often a truck that cranks too long, stumbles under load, or throws recurrent rail pressure correlation faults after sensor swaps. The mechanical root, in many of these cases, lives inside the pumping chamber where the original plunger has lost its dimensional integrity. Fitting this long core assembly restores the hydraulic seal without replacing the entire pump head, which means the repair bill stays competitive and the customer approves the work without hesitation.

Surface degradation in high-pressure fuel components is not a matter of "if" but "when." The real cost to a repair business, however, is not the worn part itself-it is the comeback. A replacement plunger that exhibits premature micro-galling forces the workshop to absorb a second round of diagnosis and labour, often without billing. This unit is produced with a controlled metallurgical response that limits the propagation of surface defects when abrasive particulates pass through the clearance gap. In operational terms, it lowers the likelihood of bore distortion caused by incidental contaminants, so the fix holds and the fleet operator stays loyal.

Installation discipline remains the final variable. Before seating the 094150-0240, the pump housing must be flushed free of debris from the previous failure. The long core design demands careful axial alignment with the tappet to prevent edge-loading during the stroke cycle. Torque values on the pump head retaining bolts must follow the Denso sequence to avoid barrel distortion-a step that takes an extra three minutes but eliminates a 30‑minute rework. Post-fitment, a low-pressure prime is essential before cranking; dry rotation on a new plunger invites instant scoring, and no workshop needs that phone call.

For service managers evaluating parts spend per job, the arithmetic favours the element-level approach. No core deposit, no cross-shipping delay, and no risk of receiving a pump that fails bench testing on arrival. The 094150-0240 turns a potential two‑day job into a same‑afternoon completion, which directly improves bay utilisation during the busy autumn overhaul season.

Q1: For a shop ordering multiple units, is there batch-to-batch variation in the plunger-to-barrel clearance that we should account for during first installation?
A: Clearance values are held within a statistical tolerance band verified during final inspection; no adjustment procedure is required at the bench level. We recommend measuring runout on the tappet face prior to assembly to eliminate external variables.

Q2: How does this long core version behave in pumps that have previously experienced a catastrophic bearing failure and may have residual ferrous debris in the return circuit?
A: We strongly advise a full fuel circuit flush and a new filter set before fitting the 094150-0240. The plunger surface can withstand normal particulate exposure, but residual bearing material is an outlier that affects any replacement element equally.

Q3: What documentation do we receive with a wholesale order to support traceability for our fleet customer maintenance records?
A: Each outer carton includes a packing slip with the lot code; we can supply a batch-specific conformance certificate upon request, which you can file against individual vehicle work orders.

Q4: If a unit fails within the first 200 running hours, is the return process gated through the distributor or directly back to your inspection facility?
A: Returns are routed through your original point of purchase for initial verification. For direct wholesale accounts, we accept the unit at our inspection centre with a failure report attached-turnaround for credit is 5 working days upon receipt.

Q5: Does this plunger require a different break-in procedure compared to the OE-supplied component that came in the original pump build?
A: No special break-in is required. Normal engine operation during the first hour beds the surfaces; avoid prolonged idle, as that reduces lubrication film thickness at the plunger interface. A standard road test under moderate load is sufficient.
