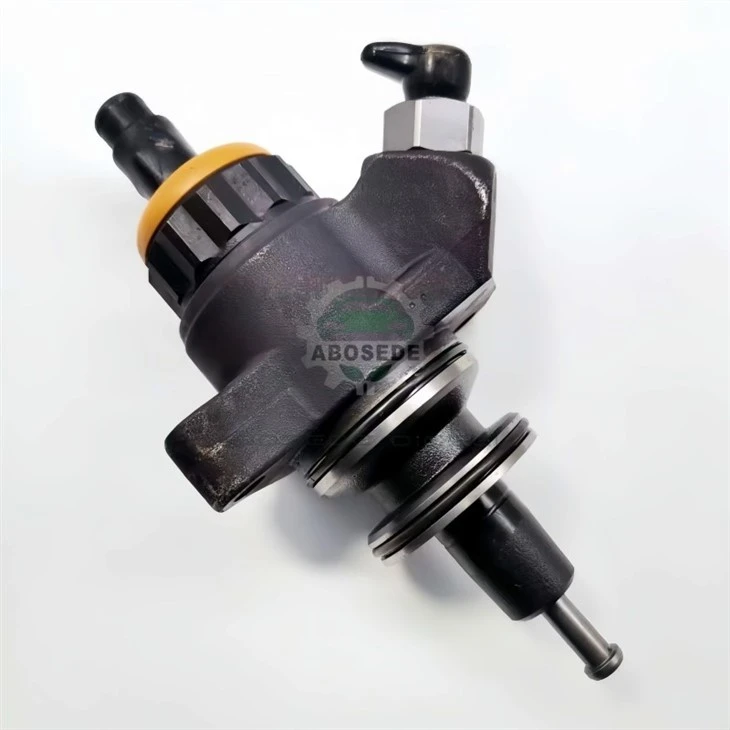

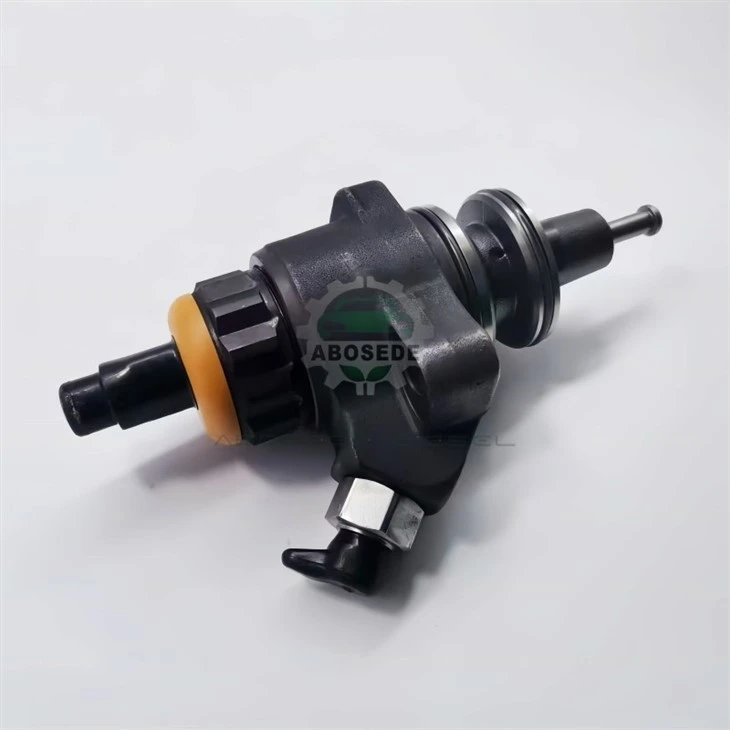

Denso HP0 Plunger Assembly 094150-0132 – Field-Ready Core For Mining & Earthmoving Pumps

Across West African gold fields and Southeast Asian palm oil plantations, the Denso HP0 pump pushes high-pressure fuel through common rails day after day, often with minimal maintenance intervals. When the pump loses its ability to sustain rail pressure during heavy lugging, the 094150-0132 plunger assembly is the component that shop foremen reach for. This unit brings a single plunger seat mated to a long core (长芯) stroke design-a configuration built specifically for HP0 housings that require deeper piston travel to feed higher-displacement off-road engines. Rather than replacing the entire pump head, this assembly restores volumetric efficiency by renewing the sealing interface where compression actually happens. For workshops operating in remote sites with limited parts support, stocking this reference means fewer abandoned jobs and faster turnaround on pump overhauls.

The 094150-0132 directly replaces plunger kits across the following Denso HP0 pump assemblies: 094000-0055, 094000-0061, 094000-0213, 094000-0235, 094000-0243, 094000-0260, 094000-0284, 094000-0340, 094000-0392, 094000-0410, 094000-0420, 094000-0440, 094000-0580, 094000-0600, 094000-0620, 094000-0630, 094000-0670, 094000-0700, 094000-0710, 094000-0720, 094000-0730, 094000-0740, 094000-0750, 094000-0760, and 094000-0770. This single SKU covers pump variants found on Japanese excavators, Chinese-assembled loaders, and European-spec haul trucks operating in tropical climates. The 0213 and 0235 bases frequently appear on 6-cylinder industrial engines, while the 0580 through 0770 range typically supports higher-pressure calibrations for tier 2 and tier 3 emission-compliant machines. Consolidating these 26 references into one plunger part number simplifies your wholesale ordering and reduces the chance of sending the wrong kit to a remote job site.

Installing a plunger with incorrect stroke length is the fastest way to turn a running pump into a scrap core. The long core design of the 094150-0132 ensures the compression face reaches the barrel's top land at the precise crank angle required for full rail build. In deeper HP0 housings, a short-core plunger leaves excessive dead volume above the piston, which absorbs compression energy and delays pressure rise-particularly noticeable during low-speed excavation work where immediate throttle response is critical. The single plunger seat eliminates the shimming variables found in multi-plunger configurations, so your techs spend less time measuring and more time buttoning up the pump. This geometry also reduces side-loading on the guide bore, a common failure point when pumps run with contaminated fuel containing siliceous dust from mining environments.

Replacing the 094150-0132 in an HP0 pump demands two non-negotiable steps before reassembly. First, inspect the single plunger seat recess for any embedded particles using a clean cotton rag and compressed air-even a single grain of sand trapped here will lift the plunger off its true axis, creating elliptical wear within 100 operating hours. Second, verify the long core orientation against the drive tappet; the plunger foot has a specific radius that must align with the cam follower, otherwise the pump emits a dull knock that novices often misdiagnose as injector failure. Torque the retaining plate in a cross pattern to avoid distorting the barrel sleeve. For workshops using recycled diesel from site storage tanks, we strongly recommend flushing the pump housing with fresh fuel before installation, since residual water droplets accelerate galvanic corrosion on the new plunger's working face.

The real cost of a plunger failure extends beyond the replacement part-it includes tow trucks, lost production hours, and the goodwill of machine operators who depend on reliable starts every morning. The 094150-0132 addresses the root cause of pressure bleed-off: the gradual opening of the plunger-to-barrel clearance caused by abrasive wear. By restoring the original interference fit, this assembly stabilizes injection timing across all cylinders, which directly reduces black smoke complaints during load cycles. For parts wholesalers supplying construction and agricultural sectors, this plunger represents a high-turnover line item that moves consistently, especially during rainy seasons when water-contaminated fuel accelerates pump degradation. Stocking the single plunger seat variant also reduces packaging and shipping weight compared to complete pump heads, lowering your logistics cost per unit to remote distribution points.

Q1: How do I confirm my customer's pump needs the long core version without dismantling it first?
A: Check the pump model number against the 26 references listed above. If the number falls within that range, the 094150-0132 is the correct match. For pumps not on that list, measure the barrel depth using a steel ruler-the long core requires a minimum bore depth of 42mm from the seat face to the top deck.

Q2: Can this plunger handle biodiesel blends or high-sulphur fuel common in our region?
A: Yes. The surface treatment on the 094150-0132 is formulated to resist sulphur-induced etching and has passed bench tests with B20 biodiesel. However, we advise against blends above B30, as elevated viscosity reduces lubrication film thickness and accelerates single plunger seat wear.

Q3: What's your defect rate on bulk orders of 20 pieces or more?
A: Our batch sampling shows less than 0.3% dimensional deviation across production lots. For wholesale buyers, we provide batch test reports with each shipment, including hardness and surface roughness readings for the long core shaft-transparency you can show to your workshop clients.

Q4: How should we store these plungers in a hot, humid warehouse without climate control?
A: Keep them in sealed polythene bags with the original anticorrosion paper intact. Avoid stacking heavy cartons on top, as the long core can warp under sustained pressure. Under these conditions, shelf life exceeds 18 months without performance degradation.

Q5: Is there a break-in procedure we should recommend to end-users after installation?
A: Advise operators to run the engine at idle for 10 minutes, then apply 50% load for another 20 minutes before full-throttle operation. This allows the single plunger seat to bed evenly against the barrel without thermal shock. No special oil additives are required.

Q6: Do you offer trade-in credit for old plunger cores returned in bulk?
A: Yes-for wholesale accounts returning 50 or more used plungers per quarter, we provide a core credit toward your next order. This reduces your disposal cost and ensures the scrap material enters a certified recycling stream.
