X15 Fuel Pump Repair Kit – Cummins XPI High‑Pressure Pump | Seals, Bearings & Wear Plates For Volumetric Restoration

A high‑pressure common rail pump does not fail overnight. It loses volumetric efficiency in increments-typically 2–4% per 100,000 miles-as seal interfaces wear, bearing clearances open, and wear plates develop micro‑grooves. The ECU compensates by increasing the fuel metering unit duty cycle, masking the degradation until the pump can no longer meet rail pressure demand under full load. At that point, the pump is replaced-often unnecessarily. This repair kit restores the internal clearances that define volumetric efficiency, returning the pump to its original pressure‑flow curve at a fraction of the cost of a new unit.

The kit is not a random assortment of O‑rings. Every seal, bearing, and wear plate is matched to the Cummins XPI pump's thermal expansion profile and fuel chemistry compatibility. Installing mismatched components-even if they fit physically-alters the pump's internal leakage rate and can accelerate wear on the plunger bores.

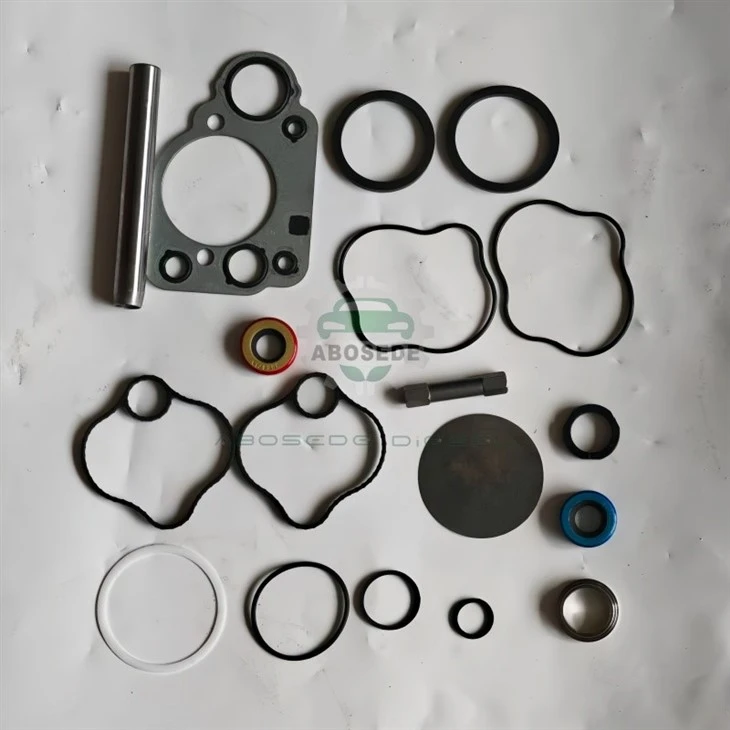

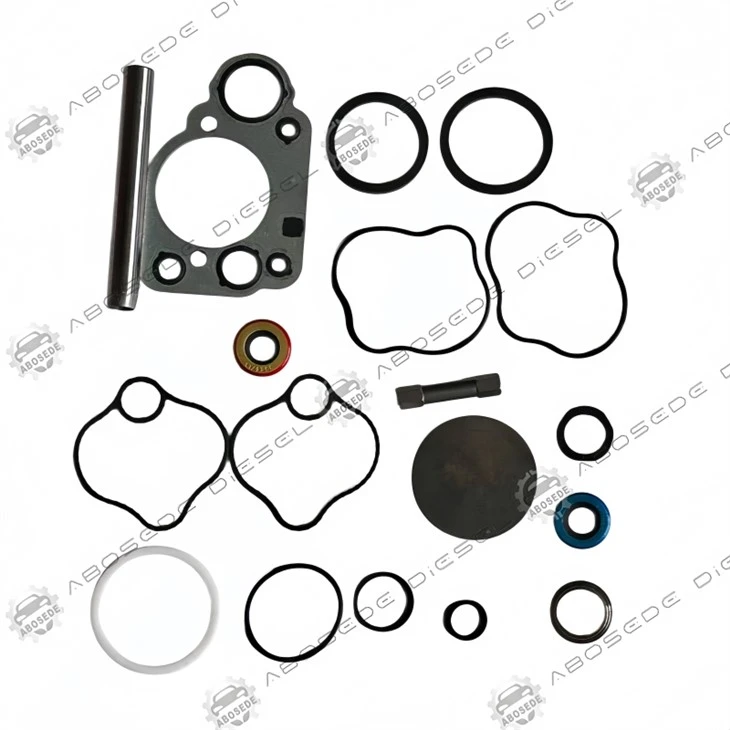

This kit is engineered for the Cummins XPI high‑pressure pump used on the X15 engine platform (2017–present), including both Efficiency and Performance Series ratings.

Direct Pump Compatibility:

Cummins XPI pump – part numbers 5491816, 5491817, 5491818

Remanufactured pump cores with original housings

X15 Efficiency Series (400–475 hp)

X15 Performance Series (500–565 hp)

Engine Applications:

Freightliner Cascadia (2017–2024)

Kenworth T680 / T880

Peterbilt 579 / 567

International LT / HX

Western Star 49X / 57X

Not compatible with X12 or ISX15 (pre‑2017) pumps-those use a different seal geometry and bearing preload specification.

Critical Dimensional Tolerances:

Wear plate flatness: ≤ 1.5 µm across entire face

Bearing radial clearance: 5–8 µm

Seal compression set: ≤ 15% after 1,000 hours at 120°C

Every high‑pressure pump operates on a controlled leakage principle. A microscopic film of diesel lubricates the plunger‑to‑bore interface, and a small amount of fuel leaks past the plunger into the return circuit. This leakage is not a defect-it is designed clearance. The problem begins when wear increases that clearance beyond specification. Leakage rises, volumetric efficiency drops, and the pump must work harder to maintain rail pressure.

This kit restores three critical interfaces:

Plunger‑to‑bore clearance – new O‑rings and lapped wear plate re‑establish the original 2–3 µm clearance.

Delivery valve seat integrity – the PTFE‑coated seal prevents residual pressure decay between injection events.

Drive shaft sealing – the dual‑lip seal stops diesel dilution of engine oil, a common failure on high‑mileage X15 pumps.

Visual Concept – The "Efficiency Triangle":
Imagine a triangle with three corners: Clearance, Leakage, and Pressure. The area inside represents volumetric efficiency. As clearance opens, leakage rises, and the pressure corner collapses inward. The repair kit resets the triangle to its original geometry.

This is not a field‑serviceable repair. The pump must be removed and disassembled on a clean bench with filtered air. Contamination of 5 µm or larger will destroy the new wear plate within hours.

Critical Steps:

Mark the pump housing halves before disassembly-the metering unit and hydraulic head are matched pairs.

Measure plunger protrusion before removal-record for comparison after rebuild.

Heat the bearing housing to 80°C before pressing in the new needle bearing-cold pressing cracks the cage.

Lubricate all seals with assembly grease-never install dry. Dry FKM seals tear on first pressurisation.

Torque the hydraulic head bolts in three stages: 15 Nm, 30 Nm, 45 Nm, following a star pattern.

Prime the pump with clean diesel before installation. Dry cranking destroys the new wear plate.

Post‑Installation Test:
Run the engine at idle for 5 minutes, then perform a rail pressure decay test-command 1,500 bar, engine off, observe pressure drop over 60 seconds. A healthy rebuilt pump should hold within 50 bar. Greater decay indicates a seal seating issue.

Q1: How do I decide between a repair kit and a complete new pump?
If the pump housing and plunger bores show no scoring or galling, the repair kit restores full function. If the bores have visible scratches or the plunger is discolored from overheating, a new pump is required. Measure bore diameter-if it exceeds the wear limit by more than 3 µm, do not rebuild.

Q2: Can I use this kit on a remanufactured pump that already has new seals?
Yes, but only if the pump has been in service and the seals are due for replacement. If the reman pump is new, do not open it-you will void the warranty and risk contamination.

Q3: What fuel additives are safe with the FKM seals in this kit?
Most diesel additives are compatible. Avoid additives containing high concentrations of aromatic solvents (>30%) or alcohol‑based de‑icers-these can swell FKM over time. If you use a lubricity additive, ensure it is hydrocarbon‑based.

Q4: The kit includes a wear plate. How do I know if mine needs replacement?
Measure wear plate thickness at three points. If variation exceeds 2 µm or surface roughness exceeds Ra 0.2 µm, replace it. A worn plate causes uneven plunger loading, leading to premature bore wear.

Q5: What torque sequence should I use for the hydraulic head?
Star pattern, three stages: 15 Nm, 30 Nm, 45 Nm. Wait 5 minutes between stages to allow gasket compression. Never tighten in a circular pattern-it warps the head and causes internal leakage.

Q6: How many hours of labour does this repair typically take?
A skilled technician with a clean bench can complete the rebuild in 4–5 hours. Add 2 hours for pump removal and reinstallation. The cost saving versus a new pump is typically 60–70%.
