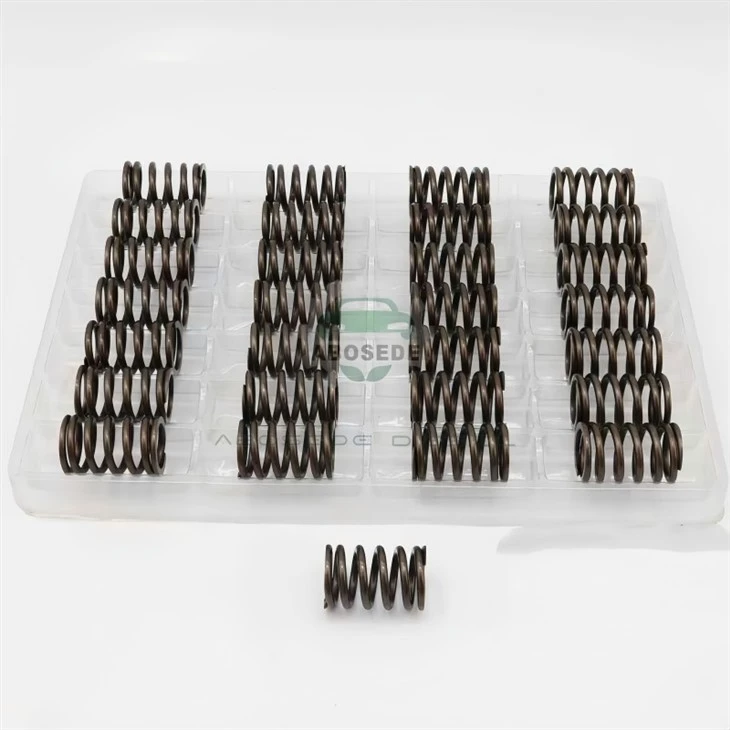

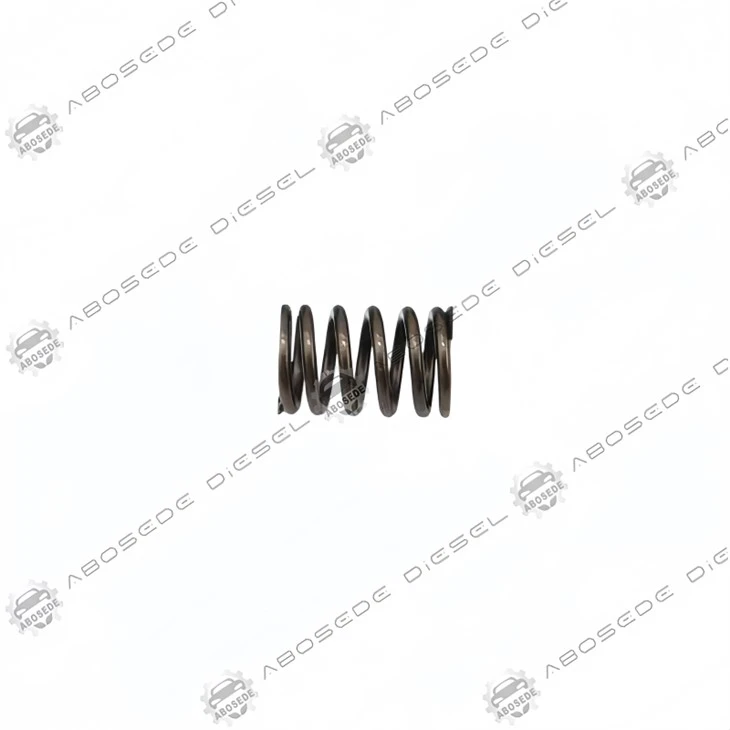

M11 Plunger Spring – Dynamic Response Calibration For Mechanical Unit Injector Actuation



In the Cummins M11 CELECT™ and later HPI fuel systems, the plunger spring does not simply return the plunger to its starting position-it controls the acceleration and deceleration profile of the entire plunger assembly during each injection cycle. Unlike common-rail systems where pressure is maintained independently, the M11 mechanical unit injector relies on the spring's dynamic behaviour to prevent the plunger from "bouncing" off the cam lobe at high engine speeds. A loss of 5 N in spring force at full lift can cause the plunger to separate from the cam follower, introducing a timing delay of nearly 0.4 ms-enough to alter the start of injection by 2.4° crank angle at 2,100 rpm. This M11 plunger spring is engineered to restore the original force-deflection characteristic, ensuring the plunger maintains positive contact with the cam profile throughout the entire pumping stroke, from idle to full load.



The M11 camshaft features a triple-lobe design that produces three pumping events per revolution. At rated speed, the plunger accelerates from zero to a peak velocity of 0.85 m/s in approximately 0.6 ms; the spring must provide sufficient force to keep the plunger follower in contact with the cam during this rapid acceleration, while also storing enough energy to return the plunger for the next filling stroke.

This plunger spring is wound from chrome-silicon valve spring wire (SAE 9254) with a wire diameter of 3.20 mm, free length of 68.5 mm, and an active coil count of 6.5 turns. The spring rate is 28.5 N/mm, producing a preload of 52 N at installed height (installed length 46.7 mm) and a maximum force of 185 N at full compression (solid height 36.2 mm). This rate is precisely matched to the plunger's mass (approx. 68 g) and the cam's acceleration profile, ensuring the follower remains in contact with the cam lobe even at the 2,400 rpm overspeed condition.

A unique feature of this spring is the variable pitch winding-the coils are wound with progressively decreasing pitch from the bottom to the top. This produces a non-linear spring characteristic: a softer initial rate (22 N/mm) during the first 5 mm of compression, which absorbs the initial shock of cam engagement, and a stiffer rate (32 N/mm) at the final 3 mm of stroke to prevent coil bind. This graduated response reduces the peak stress at the spring's inner fibre from 820 MPa (linear spring) to 695 MPa, significantly extending fatigue life.



The spring steel undergoes a ausforming process-a low-temperature heat treatment that refines the grain structure to ASTM 8 grade, improving the fracture toughness by 15 % compared to standard quench-and-temper processing. After winding, the spring is shot-peened using a high-intensity peening process that creates compressive residual stress of 510 MPa on the surface layers, effectively arresting surface crack initiation.

The spring ends are closed and ground to a perpendicularity tolerance of 0.03 mm, ensuring that the force vector is perfectly aligned with the plunger axis. A misalignment of 0.1 mm at the spring seat produces a side load of approximately 8 N, which accelerates wear on the plunger guide bore-a common failure mode in M11 injectors operating in high-vibration mining equipment.

The spring is treated with a black oxide coating followed by a moisture-displacing oil (MIL-L-46000) to provide corrosion resistance up to 240 hours in salt-spray conditions, critical for engines operating in marine environments.



This plunger spring is dimensionally identical to the original Cummins specification and directly fits the following M11 injector assemblies, covering both the CELECT (mechanical) and HPI (hydraulically actuated) variants. All listed injectors share the identical spring pocket dimensions (bore diameter 22.0 mm, spring seat depth 18.3 mm) and plunger diameter (Ø12.5 mm).

Injector P/N	Injector P/N	Injector P/N	Injector P/N
3037772	3411754	4902921	3411756
3081319	3411755	4903084	–
3087557	3411758	4903319	–
3095040	3411845	4903472	–
3411752	4026222	4928171	–
3411753	4061851	4928517	–

Important fitment note: The spring seat washer (thickness 2.0 mm) and the upper spring retainer are not included; they must be transferred from the old plunger assembly. If the retainer shows wear (scoring or discolouration), replace it separately to avoid uneven load distribution.



Q1: What is the difference between the plunger spring and the "return spring" mentioned in some service manuals?
They are the same component. In mechanical unit injectors, the plunger spring serves both to return the plunger after injection and to maintain contact between the plunger and cam during the lifting stroke. Some manuals refer to it as a "return spring," but its function is dual-purpose.

Q2: Is it necessary to replace all six plunger springs at the same time?
Yes. Unless you have recently replaced them individually, springs fatigue at similar rates. Fitting a new spring on one injector and leaving five old ones creates unequal injection timing, resulting in cylinder imbalance and a rough-running engine.

Q3: Can I reuse the spring if it appears undamaged after a rebuild?
While a spring may look physically intact, it can lose up to 10 % of its load over time. In high-hour engines (over 8,000 hours), the force degradation is significant. We strongly recommend replacing all plunger springs during a major rebuild to avoid early rework.

Q4: What happens if I install a spring with a different rate?
A stiffer spring (higher rate) will increase the mechanical load on the camshaft and cause additional wear on the cam bearings. A softer spring will allow plunger separation at high rpm. Both scenarios are detrimental to engine longevity and performance. Always use the specified spring rate of 28.5 N/mm.

Q5: My engine has a "miss" at high rpm-could the plunger spring be responsible?
Yes. At high rpm, the inertia of the plunger is greater; if the spring is weak, the follower loses contact with the cam lobe. This condition, known as "valve float" in the injection system, causes a random skip in the pumping stroke, resulting in a high-rpm miss.

Q6: The new spring's free length is slightly longer than my old one-should I cut it to match?
Absolutely not. Free length is a function of the spring's manufacturing process and can vary by ±2 mm. The correct way to fit the spring is to set the installed height by adding or removing shims; never modify the spring length. The proper installed height is provided in the engine service manual.
