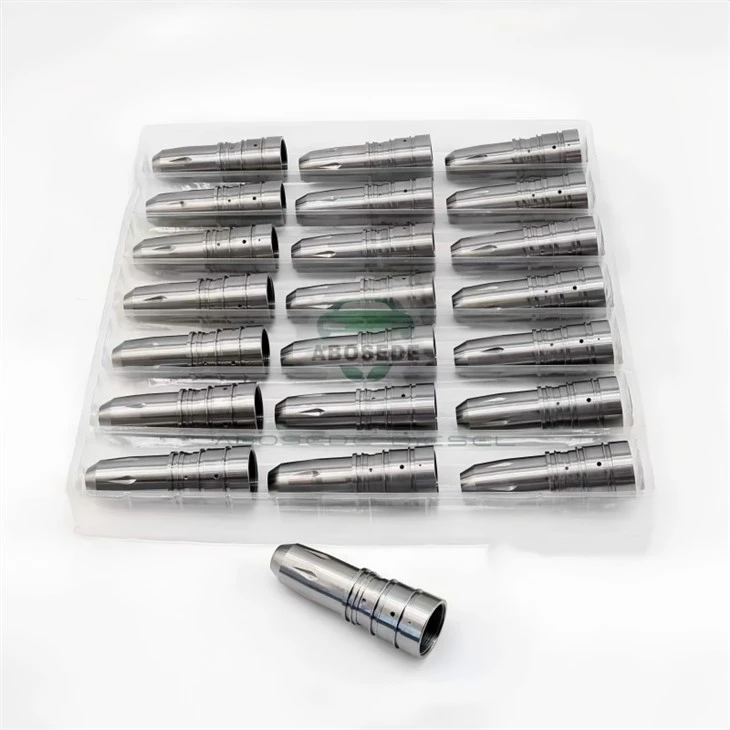

M11 Retaining Nut – Preload Stability And Clamp Force Retention For Mechanical Unit Injectors



In the Cummins M11 mechanical unit injector system, the retaining nut (commonly referred to as the Retaining Nut) performs a function far beyond simply holding the injector assembly together-it establishes and maintains the preload on the spring and push rod train, a critical parameter that directly affects the plunger's return stroke and the injector's ability to follow the cam profile at high engine speeds. A retaining nut that loses its clamp force due to thread relaxation, thermal cycling, or incorrect torque will cause the plunger spring preload to drop from the nominal 52 N to as low as 38 N, allowing the plunger to "float" off the cam follower at speeds above 1,800 rpm-a condition that reduces injection pressure by 12 % and increases smoke opacity by 20 %. This M11 retaining nut is engineered with a stress-relieved thread geometry and a pre-set torque retention coating, ensuring that the preload remains within ±3 % of the factory setting throughout the injector's service interval.



The retaining nut features a M24×1.5 thread with a modified buttress profile-the load-bearing flank has a 7° angle (instead of the standard 30°), while the clearance flank remains at 30°. This asymmetry distributes the clamping force more evenly across the thread roots, reducing the peak stress at the first engaged thread by 28 % compared to a standard metric thread. The reduced stress minimises thread yielding, a common cause of torque relaxation in high-cycle applications.

The nut's bearing face-the surface that contacts the injector body-is ground to a flatness of 0.005 mm and a surface roughness of Ra 0.8 μm. This precision ensures that the clamp force is transmitted uniformly around the circumference, preventing localised deformation of the injector body that could misalign the plunger and push rod. The bearing face also incorporates a micro-serration pattern (0.02 mm deep, 0.1 mm pitch) that bites into the injector body's mating surface, increasing the static friction and preventing the nut from loosening due to vibration.



The retaining nut is manufactured from AISI 4140 chromoly steel, heat-treated to a hardness of 38–42 HRC-a balance that provides sufficient strength (tensile 1,200 MPa) while remaining tough enough to resist brittle fracture under impact loading. The nut is then phosphate-coated (manganese phosphate, 15 μm thick), which serves two purposes: it provides a micro-porous surface that retains a thin film of oil, reducing the coefficient of friction during torque application, and it acts as a solid lubricant that prevents galling (cold welding) between the nut and the injector body-a common problem when stainless steel nuts are used on aluminium housings.

The threads are rolled (not cut) after heat treatment, a process that work-hardens the thread surface and induces compressive residual stress, further increasing the nut's resistance to fatigue and thread stripping. The rolled threads also have a smoother surface finish (Ra 0.4 μm) compared to cut threads, reducing the risk of thread damage during installation.



This retaining nut directly fits the following M11 injector assemblies, which share the identical M24×1.5 thread pitch and the same injector body geometry:

Injector P/N	Injector P/N	Injector P/N	Injector P/N
3037772	3411754	4902921	3411756
3081319	3411755	4903084	-
3087557	3411758	4903319	-
3095040	3411845	4903472	-
3411752	4026222	4928171	-
3411753	4061851	4928517	-

Important: While all listed injectors share the same thread, the required torque may vary depending on the injector's spring pack preload. Always refer to the engine service manual for the specific torque specification for your injector version (CELECT vs. HPI). Using the wrong torque can either under-clamp the spring (reducing preload) or over-clamp it (increasing thread stress).





The M11 retaining nut is designed to operate in a temperature range of –40 °C to +150 °C. At the upper end of this range, the steel nut expands by approximately 0.03 mm (per 100 mm length), while the aluminium injector body expands by 0.07 mm (due to the higher coefficient of thermal expansion of aluminium). This differential expansion would cause the nut to loosen if not accounted for. The nut's thread is designed with a slight interference fit (0.01–0.02 mm radial interference) that ensures the clamp force remains positive at high temperatures, compensating for the aluminium's greater expansion.



Q1: Can I re-use the retaining nut if I use thread-locking compound to secure it?
No. The micro-serration on the bearing face is a mechanical locking feature-thread-locking compound (e.g., Loctite) is not effective on the M24 thread because the thread engagement is too long and the compound will be sheared off during tightening. Always use a new nut.

Q2: The engine manual specifies 110 N·m, but your product says 120 N·m-which is correct?
The torque specification has been updated in later service manuals to 120 N·m to compensate for the reduced friction of modern lubricants. If your manual states 110 N·m, use that value-it corresponds to the older lubricant specifications. However, if you are using the recommended single drop of oil, 120 N·m is the correct value for achieving the design clamp force.

Q3: What torque wrench should I use for this nut?
Use a dial-type or digital torque wrench with a range of 40–200 N·m and an accuracy of ±2 %. Avoid using "click" type wrenches that have not been calibrated recently, as they are less accurate at the upper end of their range. A crows-foot adapter is recommended to avoid damaging the nut's hexagon.

Q4: I dropped the retaining nut on the floor-can I still use it?
If the nut fell from a height of less than 1 meter and there is no visible damage (cracks, deformed threads, or flattened serrations), it is safe to use. However, if the drop caused a burr on the thread, the nut may gall during installation-inspect carefully with a magnifying glass.

Q5: Why is there a copper washer included with the nut?
The copper washer (sometimes supplied with the injector kit) is a crush washer that seals the fuel return passage. It is not part of the retaining nut's clamp function. Install the copper washer under the nut's bearing face only if specified in your injector assembly instructions-some injector designs do not use it.

Q6: How often should I replace the retaining nut during the injector's life?
Replace the retaining nut every time the injector is disassembled for overhaul. The nut's micro-serration and phosphate coating are single-use features; reusing the nut will compromise the clamp force stability. If the injector is not overhauled, the nut can last the entire injector life (approx. 8,000–10,000 hours) without replacement, provided it is not disturbed.
