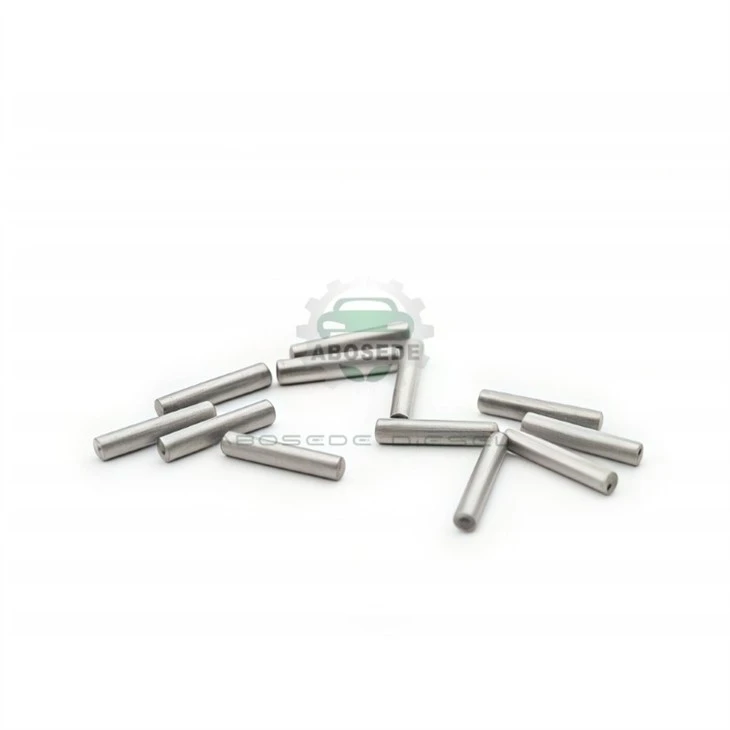

Cummins XPI Series Type I Locating Pin – OEM Precision Alignment Dowel

The Cummins XPI Series Type I Locating Pin (OEM 3377209) is a precision-ground mechanical dowel engineered to establish exact axial alignment between the high-pressure fuel injector and the cylinder head bore within the XPI common rail system. Operating under rail pressures exceeding 2,000 bar, this alignment pin eliminates radial play and angular deviation, ensuring the injector's high-pressure inlet and return passages achieve a leak-free hydraulic seal. For diesel repair facilities and component remanufacturing shops, replacing a worn or deformed locating pin during any injector overhaul is mandatory-misalignment at this junction directly compromises injection timing accuracy, increases return fuel flow, and accelerates internal component wear across ISX and QSX engine platforms.

The 3377209 locating pin is manufactured from case-hardened alloy steel to withstand cyclic shear stresses and high-frequency vibration in heavy-duty diesel environments. This OEM locating pin features a precision-ground cylindrical body with an interference fit tolerance calibrated to the XPI injector bore housing. Its overall length is matched to the valve group stack-up height, ensuring correct injector positioning when the hold-down clamp is torqued to specification without inducing pre-load stress on internal control valve components. The surface finish resists galling and corrosion, maintaining locating integrity over extended service intervals. Workshop technicians must verify pin straightness and measure diameter with a digital micrometer prior to assembly-scoring or wear mandates immediate replacement to prevent injector "walking," which leads to asymmetric fuel delivery and elevated return flow rates.

This XPI locating pin is specifically designed for the Cummins ISX15 (14.9L) and QSX15 (15L) engine families, covering on-highway, vocational, and industrial applications utilizing the XPI fuel system. The 3377209 locating pin serves as a direct replacement service component for injector core part numbers 2872544, 4307475, 4327072, and 5579409. Repair shops servicing Freightliner, Kenworth, and Peterbilt trucks will recognize this dowel pin as a mandatory replacement item whenever an injector is extracted. For wholesale distributors, maintaining stock of this Cummins alignment pin is critical-it remains a frequently requested service part across heavy-duty fleets operating under Tier 4 Final and Euro VI emissions standards where injection precision is paramount.

Correct installation of the XPI Type I locating pin demands a contamination-free environment. The injector bore and receiving hole must be meticulously cleaned using a bore brush and compressed air to remove carbon deposits and abrasives. The OEM locating pin must be inserted using a non-marring driver to prevent edge deformation at the insertion tip. Verifying the pin's protrusion height above the injector seating face is critical-this height directly governs the clamping force applied by the hold-down yoke. If the 3377209 pin is incompletely seated or shows tip wear, the hold-down bolt torque (typically 50–70 N·m depending on engine variant) will fail to generate correct compression on the injector body seal, inducing combustion gas blow-by. For remanufacturing labs performing Stage 3 calibration, the integrity of this alignment dowel is validated during visual inspection, ensuring subsequent solenoid and nozzle spring assembly proceeds with correct geometric alignment.

Neglecting to replace the Cummins XPI locating pin during injector service introduces a critical variable into the common rail hydraulic circuit. With XPI injection events controlled to microsecond precision, any lateral injector movement or incorrect seating causes inconsistencies across pilot injection and main injection events-manifesting as unstable idle, increased combustion noise, and measurable fuel economy loss. For heavy-duty repair shops, the 3377209 locating pin represents a low-cost, high-impact component that safeguards the investment in new or remanufactured injectors. By ensuring the mechanical interface remains static, the XPI locating pin protects internal valve group and nozzle needle clearances, preventing premature wear and mitigating high-pressure fuel leaks into the engine oil sump. For parts buyers, stocking this OEM alignment pin directly addresses fleet operators' core pain point: reducing unplanned downtime linked to injector seal failures and erratic fuel system behavior.

Q1: Why is the 3377209 locating pin a mandatory replacement during every injector swap?
A: The pin serves as the mechanical datum for injector positioning. Removing the old injector often stresses or distorts the pin. Reusing it risks incorrect seating, leading to combustion gas leakage and improper fuel return valve alignment. A new pin guarantees correct clamp load and sealing integrity.

Q2: Does this locating pin fit ISX12 engines, or is it strictly for ISX15?
A: This 3377209 locating pin is dimensionally matched to ISX15 and QSX15 blocks with XPI fuel systems. Bore depths and alignment specifications differ for ISX12, so always verify compatibility using your engine serial number (ESN) prior to purchase.

Q3: How can I confirm the locating pin is fully seated during installation?
A: The pin should drop into the bore with a distinct tactile stop. Use a depth micrometer to measure protrusion above the cylinder head deck. If the measurement matches OEM specifications (typically 2–3mm depending on head casting), the pin is correctly seated.

Q4: Is this a genuine OEM Cummins component or an aftermarket equivalent?
A: Our 3377209 pin inventory consists exclusively of genuine OEM components sourced through authorized channels, ensuring heat treatment and surface hardness meet factory specifications for long-term reliability in high-vibration environments.

Q5: What tool is recommended for removing a seized locating pin without bore damage?
A: Use a specialized internal puller or slide hammer attachment designed for dowel pins. Avoid vise grips or pry bars, which damage the pin surface and gall the bore, requiring expensive head repairs. Apply penetrating oil and allow soaking time before extraction.
