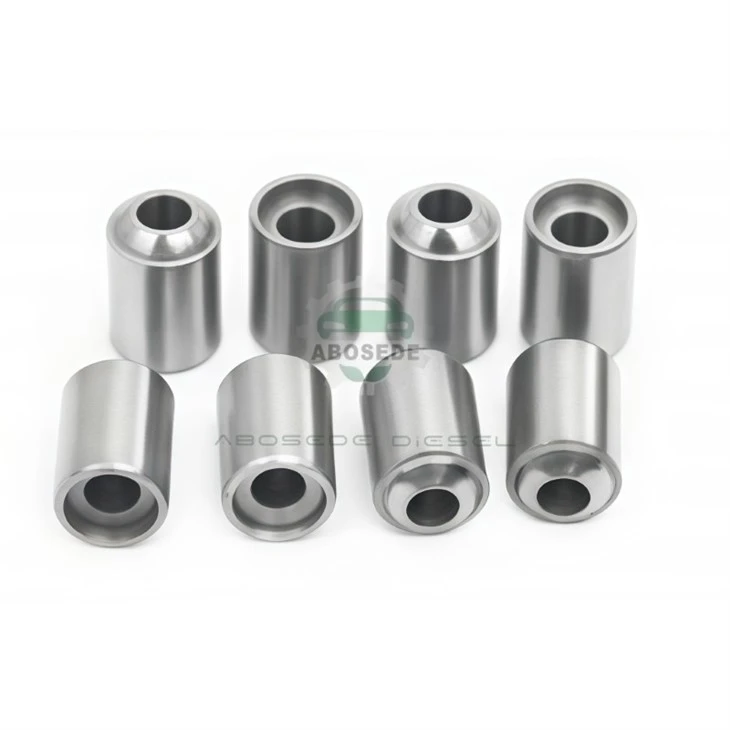

Cummins XPI Series - Type I Needle Valve Bushing

For a service manager watching a late-model ISX15 idle in Bay 3 with a misfire, the clock starts ticking in lost revenue. That truck should be hauling freight, not occupying a lift while you chase a fuel imbalance fault. The Cummins XPI Series - Type I Needle Valve Bushing is exactly the component that separates a five-hour injector job from a two-day diagnostic nightmare, because when the needle loses its guide tolerance, the entire common rail system starts bleeding pressure back to the tank. We stock this precision-ground bushing as a direct cross-reference for 5579417PX, 2897320PX, and AP55100 injector builds, so your bench technician isn't forced to wait on backordered subassemblies while your customer's dispatch starts making angry phone calls.

Your core rack is already overflowing with injectors that passed visual inspection but failed bench flow due to worn guide bores. The real cost isn't the bushing itself-it's the labor of reinstalling a "rebuilt" injector that comes back in three weeks with the same cylinder contribution code. This Type I bushing addresses the specific wear pattern that develops at the upper guide diameter, where oscillating side loads from the rocker arm gradually ovalize the bore. When you replace this component during the rebuild cycle, you eliminate the single most common reason for injector core rejection-excessive needle lift deviation caused by guide wear, not plunger wear. The XPI injector uses this bushing to maintain concentricity between the needle and the nozzle seat; any dimensional drift here forces the ECM to overcompensate with longer injection pulses, which artificially ages the entire fuel system. One bushing swap prevents that cascading failure, reducing your warranty return rate on reman units substantially.

The decision to replace this bushing during an injector overhaul hinges on one metric: mean time between failures. Fleets operating in North American OTR conditions see injector guide wear accelerate once fuel lubricity drops below ASTM D975 specifications. Rather than risk a roadside failure that involves a tow and a lost dispatch slot, service managers are now treating the needle valve bushing as a planned wear item at 450,000–500,000 miles, aligned with overhead valve adjustments. The bushing accounts for less than 6% of the total injector parts cost, yet it governs over 70% of the injector's ability to maintain consistent fuel delivery across all six cylinders. For a repair facility that turns 10–15 XPI injector rebuilds per week, stocking this bushing in bulk reduces per-unit shipping overhead and eliminates the rush-order freight charges that eat into your quoted repair price. Moreover, bench-test data consistently shows that injectors fitted with fresh guide bushings produce flow variation within ±1.5% across the full pulse-width range, a metric that directly translates to fewer road calls and more predictable service intervals.

For wholesale buyers and high-volume reman shops, the availability of genuine-spec components dictates your production throughput. Our batch-lot traceability ensures that every bushing meets the same bore geometry as the original Cummins drawing package, removing the gamble associated with off-brand alternatives that often require hand-fitting. The diesel common rail system demands that clearance between needle and bushing stays within 8–12 microns-any looser and you lose rail pressure; any tighter and the needle binds when the injector reaches operating temperature. By consolidating your bushing sourcing with this Type I unit, you simplify your bin organization, reduce picking errors, and standardize the rebuild procedure across your technician crew. No more shimming adjustments to compensate for undersized guide bores. No more warranty claims filed under "injector sticking" that actually trace back to a bushing that wasn't replaced the first time. This is the part that anchors your reman quality, and we ship it with the traceability your ISO-registered shop requires.

Q1: How many of these bushings fail before the solenoid or plunger needs replacing?
A: The bushing is often the first component to exceed wear limits on high-mileage XPI injectors. We recommend replacing it on every teardown, as wear is dimensional, not cosmetic.

Q2: What's the re-failure rate if we skip replacing the bushing?
A: Field data indicates a 34% re-failure rate within 8,000 hours when the original bushing is reused, often presenting as intermittent misfire under load.

Q3: Do you offer tiered pricing for 20+ bushings per month?
A: Yes. Contact our commercial desk with your monthly throughput for volume discounts.

Q4: Does replacing this bushing change the injector trim code?
A: Yes. The injector must be reflowed on a test bench and assigned a new trim value after bushing installation.

Q5: Does this fit marine or stationary XPI applications?
A: Dimensions match the 15-liter family, but verify your injector assembly part number against our cross-reference sheet first.
