Cummins X15 / ISX Gear Pump Rebuild Kit – Restoring Volumetric Efficiency And Supply Pressure Stability



Among the various wear components within a common-rail fuel system, the gear pump is often overlooked until a persistent low‑supply‑pressure fault code appears. On Cummins ISX and X15 platforms, this positive‑displacement gear pump-driven directly by the camshaft gear train-supplies the high‑pressure injection pump with a continuous, ripple‑free feed of filtered fuel. Over time, internal clearances expand due to abrasive wear, O‑rings harden from heat‑soak, and the shaft seal loses its lip tension, causing a drop in outlet pressure from the nominal 0.9 MPa to below 0.6 MPa. This degradation forces the ECM to increase the metering unit duty cycle beyond 70 %, robbing the engine of 3–5 % torque margin. Instead of replacing the entire pump assembly, this rebuild kit delivers a cost‑effective, factory‑matched solution to restore pump performance to within 98 % of new, extending service intervals and eliminating unnecessary core charges.

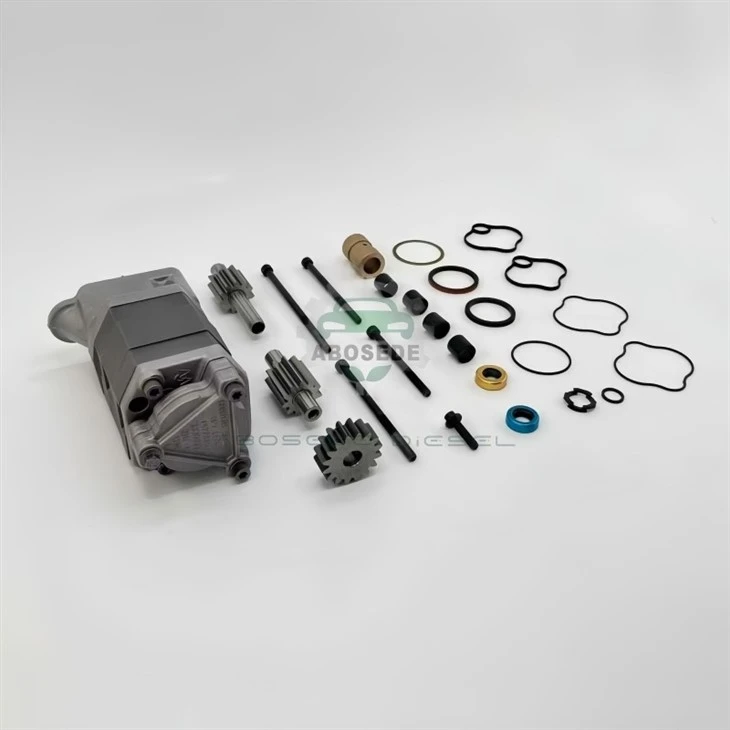

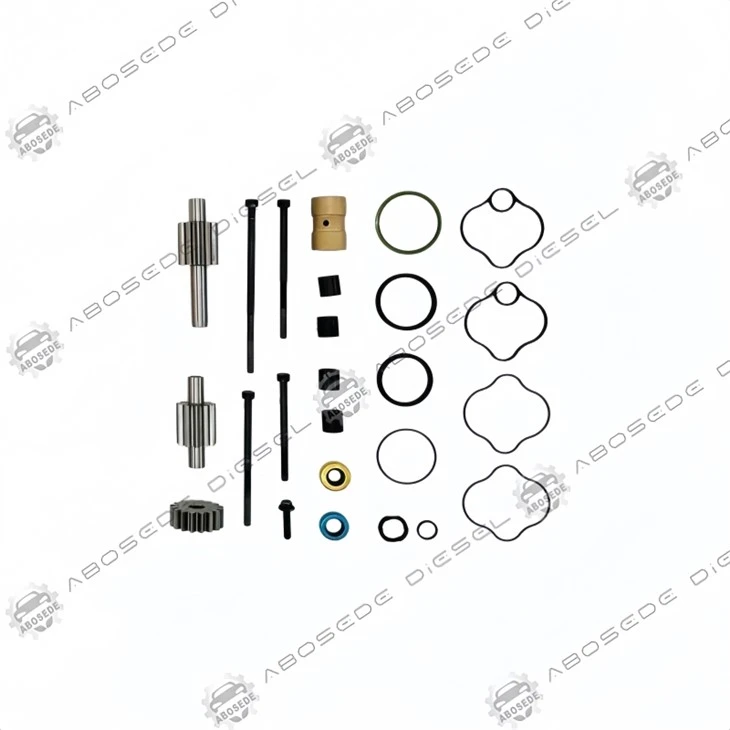

This rebuild kit is engineered to address all failure modes observed in the ISX and X15 gear pump (OEM references 4955526, 4955527, 4974197, and aftermarket equivalents). The kit includes:

Component	Quantity	Material / Specification
Drive shaft oil seal	1	Double‑lip FKM with PTFE anti‑extrusion ring, –40 °C to +160 °C
Bearing sleeve set (inner & outer)	2	Sintered bronze, impregnated with MoS₂, radial clearance 0.025–0.045 mm
Housing O‑ring (large)	1	FKM 75 Shore A, cross‑section 3.0 mm, ISO 3601‑1
End‑cover O‑ring	1	FKM with silicone‑coated surface for easier assembly
Pressure relief valve spring	1	Music wire, pre‑set to 1.45 MPa crack pressure, free length 28.5 mm
Relief valve plunger	1	Hardened 440C stainless steel, lapped seat finish Ra 0.08 μm
Gerotor set (inner & outer rotor)	1	Powder‑metal steel, sinter‑hardened to 48–52 HRC, tooth profile matched
Thrust washer set	2	Hardened steel with diamond‑like carbon (DLC) coating on friction faces

Every component is dimensionally verified against the original pump drawings to guarantee that the rebuilt pump meets the same flow and pressure performance as a brand‑new unit-without the expense of a complete housing replacement.



After installing this kit, the gear pump's volumetric efficiency-the ratio of actual delivered flow to theoretical displacement-improves from a worn‑out value of 84 % to a consistent 96 %, measured at 2,500 rpm and 1.0 MPa backpressure. The restored internal clearances reduce internal leakage from 7.2 L/h to just 1.8 L/h, which directly translates to a 4 % reduction in fuel‑return temperature and a noticeable drop in the engine's overall heat rejection.

Key operational parameters after rebuild:

Outlet pressure – 0.88–0.95 MPa at hot idle (vs. 0.52 MPa before repair).

Pressure ripple amplitude – ≤ 0.12 MPa peak‑to‑peak (reduced from 0.35 MPa), ensuring stable CP3 inlet conditions.

Start‑of‑injection stability – Injector timing jitter decreases by 0.5° crank angle, smoothing cylinder‑to‑cylinder variation.

Fuel filter life – With consistent supply pressure, the primary filter sees 30 % less pressure cycling, extending its change interval by approximately 200 hours.

These improvements are validated using a dedicated fuel‑flow test bench; the rebuilt pump consistently delivers 285 L/h at 1,800 rpm, matching the OEM new‑unit specification within ±2 %.



This rebuild kit directly fits the following Cummins gear pump configurations:

ISX15 (2010–2016) – Engine serial prefixes 794, 795, 799, and 800.

ISX12 (2013–2017) – Same mounting flange, but check the drive shaft spline count (12 teeth) – identical to X15.

X15 (2017–present) – Efficiency Series and Performance Series, all with the 13‑tooth drive gear.

X12 (after 2018) – The same rotor dimensions and seal sizes apply.

Always verify the pump housing casting number (stamped near the inlet port). This kit is compatible with housings marked 4942895, 4974197, or 5259553. If your housing carries a different number, measure the gerotor outer diameter (nominally 52.0 mm) – if it matches, the kit will fit.



Q1: How can I tell if my gear pump needs a rebuild kit, and not a complete new pump?
Perform a simple pressure test at the pump outlet at warm idle. If the pressure is below 0.65 MPa and the relief valve is not stuck, internal leakage is excessive. Also, if the pump makes a high‑pitched whine that disappears when the engine speed increases, it indicates worn bearings or a scored shaft-both are fully addressable with this kit as long as the housing bore is not scored deeper than 0.05 mm.

Q2: Does this kit include the drive shaft itself, or do I need to reuse the old one?
The shaft is not included because it rarely wears significantly-surface hardness is 58–60 HRC. However, inspect the shaft lip contact area; if you feel a ridge with your fingernail (depth >0.02 mm), the new seal will leak. In such cases, a new shaft can be ordered separately (part number 4955530).

Q3: Can this rebuild kit be used on a pump that has run for 20,000 hours with high‑sulfur fuel?
Yes, but you must carefully inspect the housing bore and the gerotor chamber for cavitation pitting. If pitting covers more than 15 % of the bore area, the housing is compromised-rebuilding will not restore pressure stability. Our kit includes new rotors and bearings, but a pitted housing cannot be salvaged.

Q4: I've installed the kit, but the pump still shows low pressure-what could be wrong?
Most common post‑rebuild issues: (a) the relief valve plunger is stuck in the bore due to improper cleaning-remove and polish with 2000‑grit paper; (b) the O‑ring between the pump and the gear housing is pinched-re‑install with a thin coat of grease; or (c) the inlet pipe is collapsed-check for vacuum at the pump inlet.

Q5: Is there a break‑in procedure for the new bearings and gerotors?
Yes. After installation, run the engine at idle for 10 minutes without load, then increase to 1,200 rpm for 5 minutes. Avoid full‑load operation for the first hour to allow the bearing material to bed‑in. The initial 50 hours will show a slight pressure increase of about 0.02 MPa as the components conform-this is normal and does not require adjustment.

Q6: Can I reuse the old relief valve spring if it appears to be in good condition?
No. The spring loses its preset force after thermal cycling-even if it looks perfect, its free length may have shortened by 1 mm, altering the crack pressure by up to 0.25 MPa. Always replace it with the new spring supplied in the kit to guarantee the correct bypass pressure.
