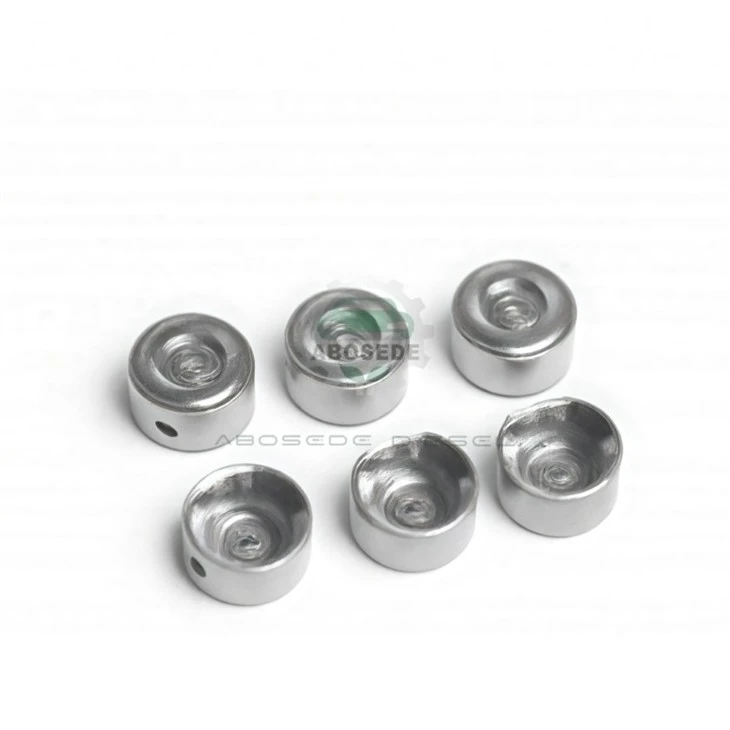

Cummins XPI Series Type I – Needle Valve Seat

This needle valve seat functions as the high‑pressure hydraulic barrier within Cummins XPI fuel injectors, directly managing pilot flow discipline and injection start precision. Designed for the Type‑I injector architecture, this seat mates with the control valve to form a zero‑leak sealing couple capable of withstanding rail pressures beyond 2,500 bar. For diesel service workshops and aftermarket parts suppliers, replacing this worn interface ranks among the most effective interventions to eliminate erratic injection events, stabilise fuel return rates, and restore factory‑level engine responsiveness across high‑horsepower commercial platforms.

Manufactured from vacuum‑degassed high‑carbon chromium steel, the seat body undergoes multiphase heat treatment to achieve a through‑hardness gradient of 62–64 HRC at the sealing lip, with a tempered core that resists shock loading. The active sealing face is ground to a Ra 0.08 µm surface finish and lapped to a compound angle of 59°30′ to ensure conformal contact with the control valve sphere. Critical dimensional checks include the pilot diameter (held to ±2.5 microns), the standoff height, and the back‑face parallelism-all verified against OEM print 4307475 and its supersession equivalents. This rigorous geometric control prevents hydraulic cross‑leakage that would otherwise compromise injection quantity linearity across the entire fuel map.

This sealing component directly supports injector builds for Cummins ISX15, QSX15, and X15 performance series, along with Scania DC16 engines that employ the shared XPI high‑pressure common‑rail system. It is a mandatory replacement item during full overhauls of injectors carrying the following factory designations: 4307475, 5491515, 5491531, 5461710, 4384786, and 5572006. Fleet maintenance managers dealing with line‑haul tractors, construction excavators, or agricultural harvesters fitted with these fuel delivery units will recognise the seat as a primary wear contributor to rising return‑flow volumes-often the first measurable symptom of degrading injection accuracy before any driveability complaint emerges.

Proper seating of this component demands absolute cleanliness at every handling stage. Any microscopic particle trapped between the seat back and the injector nozzle body becomes an abrasive indenter under operating pressure, rapidly scoring the newly lapped surface. Before insertion, the injector bore must be cleaned with dedicated guide brushes and flushed with low‑viscosity flushing oil to remove carbon residues. The seat should be installed using a calibrated torque driver applied to the hold‑down nut, following the step‑tightening sequence specified for XPI Type‑I stacks-usually an initial torque of 8 N·m followed by a 45° angle‑tightening increment. It is equally critical to verify the control valve lift height after seating, because any deviation in the standoff dimension alters the effective stroke and directly shifts the start‑of‑delivery timing. Workshops that routinely pair this seat with a matching control plunger and needle set consistently report lower comebacks and more predictable calibration outcomes on their test benches.

Q1: How to distinguish Type-I seat from later variants without a catalogue?
A: Type-I features a symmetrical back-face relief and a 5.98 mm pilot diameter. Later types often add asymmetric oil grooves or coated lips. A 0.05 mm mismatch prevents proper valve lift calibration.

Q2: Can I reuse the old control valve with a new seat?
A: Strongly discouraged. The sphere and seat develop complementary wear patterns. A fresh seat against a worn sphere creates line-contact stress, causing leakage within 500 hours. Always renew them as a matched set.

Q3: What test-bench changes confirm a successful seat replacement?
A: Expect injection quantity scatter across cylinders to drop 40–60 %, return flow at idle to fall below 35 mL/min, and pilot injection duration stability to improve noticeably, yielding smoother cold starts.

Q4: How does fuel quality impact this seat's service life?
A: Lubricity-enhancing additives can extend life, but aggressive detergents or water-emulsifying agents accelerate corrosion. For B20 biodiesel blends, increase return-flow monitoring frequency.

Q5: What replacement interval applies for on-highway versus off-road use?
A: Line-haul trucks typically see 8,000–10,000 hours before leakage exceeds limits. Off-road equipment in dusty conditions may need inspection by 5,000 hours, guided by measured return-flow degradation rather than fixed schedules.
