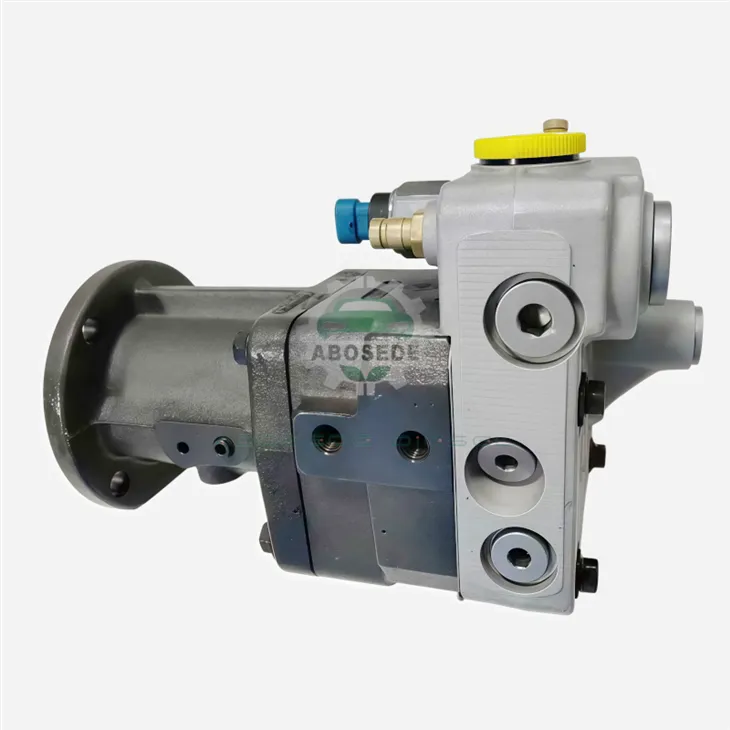

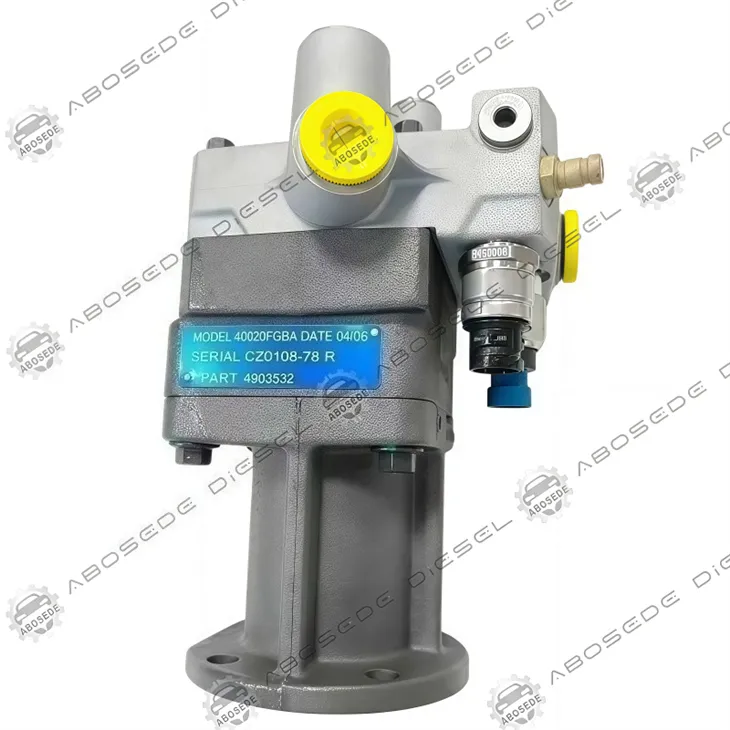

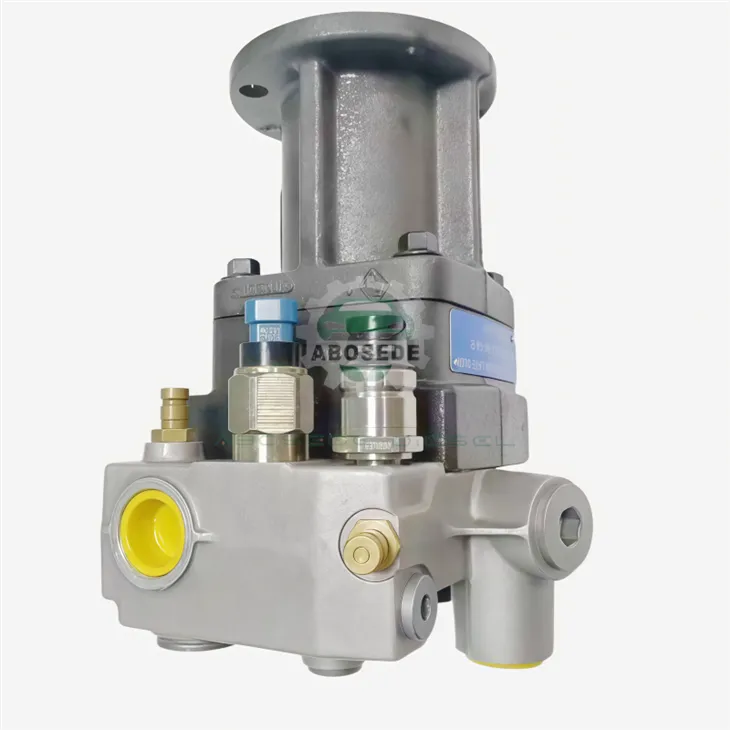

Cummins 4903532 High-Capacity Fuel Pump | QSK60 Heavy-Duty Injection Core

In mega-horsepower industrial platforms like the Cummins QSK60, high-pressure common rail (HPCR) infrastructure demands absolute consistency from its upstream fuel supply. The Cummins 4903532 fuel pump represents a major advancement in raw volumetric reliability, shifting the design focus from standard fluid delivery to active mitigation of fuel rail droop.

When high-displacement engines undergo sudden, massive torque hits in mining or prime power generation applications, lesser supply units experience localized pressure variations, leading to a cascade of electronic calibration corrections. The 4903532 relies on an exceptionally stiff internal pumping envelope to preserve optimal input velocity, supplying a reliable flow of dense fuel directly to the high-pressure accumulator circuit, even under severe thermal stress.



🔍 Selection Logic: Diagnosing Hidden Fuel System Inefficiencies



Sourcing heavy-duty fuel management components via standard year-and-model matching can create unexpected system mismatches, particularly across varying emissions tiers (Tier 2 vs. Tier 4 Interim conversions). Procurement teams and master mechanics should apply this technical checklist to confirm fitment and avoid core rejection:

Direct Legacy Interchange: Formally supersedes and replaces original equipment manufacturer (OEM) part numbers 2897671, 3417296, 4001694, 4009883, 4062059, 4088186, and 4307244.

Drive Flange Verification: Requires inspection of the drive gear tooth profile. This assembly is designed to align precisely with the heavy-duty engine timing gear train to eliminate micro-backlash and tracking faults.

Return Valve Spec Flow Rate: Built specifically to match systems utilizing high-flow electronic fuel control actuators (FCAs), preventing fuel over-heating loops common with lower-tier alternative pumps.





The mechanical design of the Cummins 4903532 focuses on enduring extreme internal shearing forces without introducing fuel aeration.

Anti-Aeration Gear Geometry: The internal pumping elements feature an optimized tooth curvature that suppresses localized fuel boiling and vapor pocket formation (cavitation) during high-vacuum draw states.

Premium Cast-Alloy Casing: The high-density outer housing resists casing deflection under extreme internal pressures, ensuring internal clearance tolerances remain within micro-inch specifications across the entire operating temperature range.

Pressure-Balanced Bearing Journals: The unit utilizes the moving fuel as a continuous lubricating medium, maintaining a uniform hydrodynamic wedge that balances out heavy radial forces from the engine drive gears.





For corporate purchasing managers and fleet rebuilders updating their digital asset management logs, the verified operational metrics of this component include:

Metric Category	Field Rating / Operational Value
Primary OEM Part Number	Cummins 4903532
Cross-Reference Interchanges	2897671 / 4009883 / 4307244 / 4088186
Applicable Platforms	Cummins QSK45, QSK60 High-Horsepower Series
Fuel System Compatibility	Modern High-Pressure Common Rail (HPCR) / PT Hybrid
Net Component Mass	50.0 lbs (22.68 kg)
Maximum Fluid Delivery Temperature	70°C (158°F) Continuous Input
Internal Sealing Infrastructure	Industrial Dual-Lip Viton Elastomers





The 4903532 fuel pump is deployed globally across high-stress infrastructure where single-hour equipment downtimes can lead to major operational losses.

Ultra-Class Open-Pit Haul Trucks: Providing critical fuel delivery for 2,500+ horsepower mining haulers tackling steep haul road gradients.

Base-Load Critical Power Gensets: Assisting emergency data center backup systems that must take on full block loads within 10 seconds of a grid failure.

Deep-Sea Marine Auxiliary Drives: Driving reliable auxiliary power setups and bow thruster engines on transoceanic commercial vessels.





Q1: How does an internal bypass leak in the 4903532 pump affect downstream injector health?

An internal bypass leak reduces the volume of fuel traveling to the high-pressure rail. This forces the fuel control actuator to overcompensate. The resulting pressure instability causes erratic injection cycles, which can lead to incomplete combustion, localized soot accumulation, and premature injector nozzle tip wear.

Q2: Why is the 50-pound net mass of this pump a critical design element for high-horsepower platforms?

The 50-lb mass reflects a heavy cast-alloy structure designed to handle intense hydraulic forces. This robust housing eliminates casing flex, preventing internal gear binding and maintaining stable fuel delivery when the engine is operating at maximum capacity.

Q3: What specific diagnostic trouble codes (DTCs) often point directly to an issue with this primary fuel pump?

In modern Cummins systems, a failing pump typically triggers codes indicating a slow response from the fuel rail pressure control loop or a general inability to achieve target rail pressure under high loads, such as Fault Code 2249 or its generic equivalents.

Q4: Can this pump support high-percentage biodiesel blends (such as B20)?

Yes, provided the fuel meets standard ASTM D6751 specifications. The high-fluorine Viton elastomers inside the 4903532 are engineered to resist chemical swelling and softening when exposed to organic biodiesel compounds, though fuel filter change intervals must be shortened to account for increased particulate trapping.

Q5: How does gear train backlash in the front engine cover affect the longevity of this component?

Excessive timing gear backlash creates harsh, high-frequency impact loads along the pump shaft. Over time, these vibrations lead to fatigue failure of the front drive bearings and cause premature fuel leakage past the primary shaft seals.
