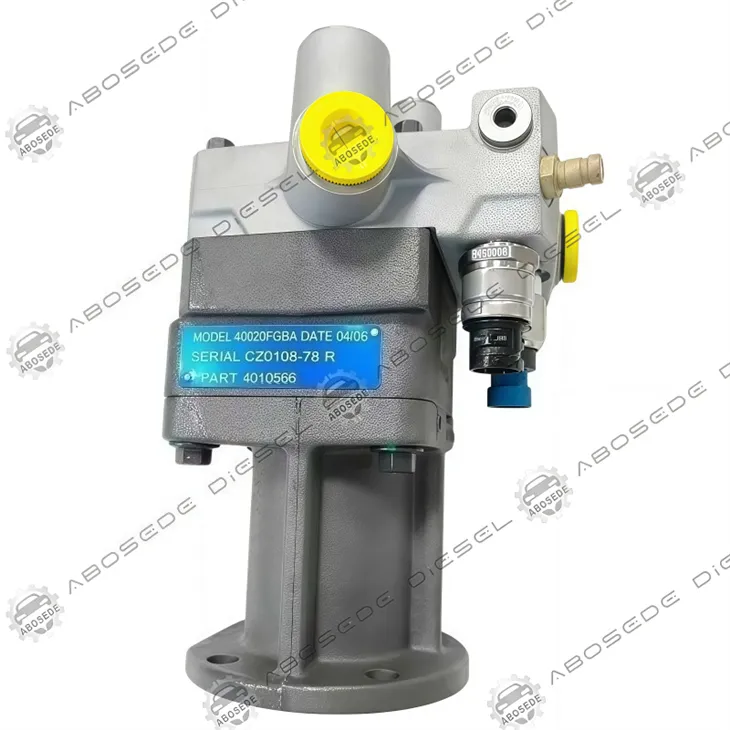

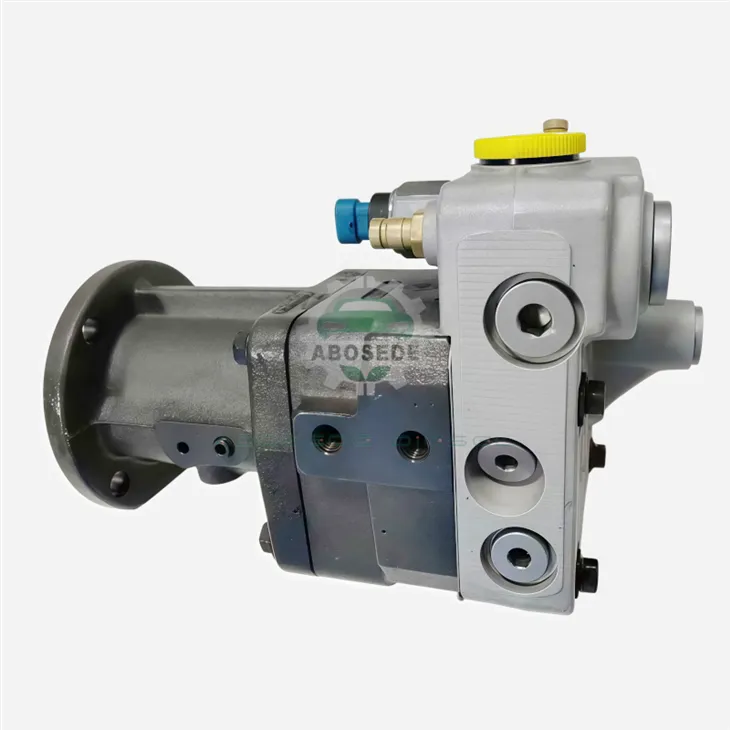

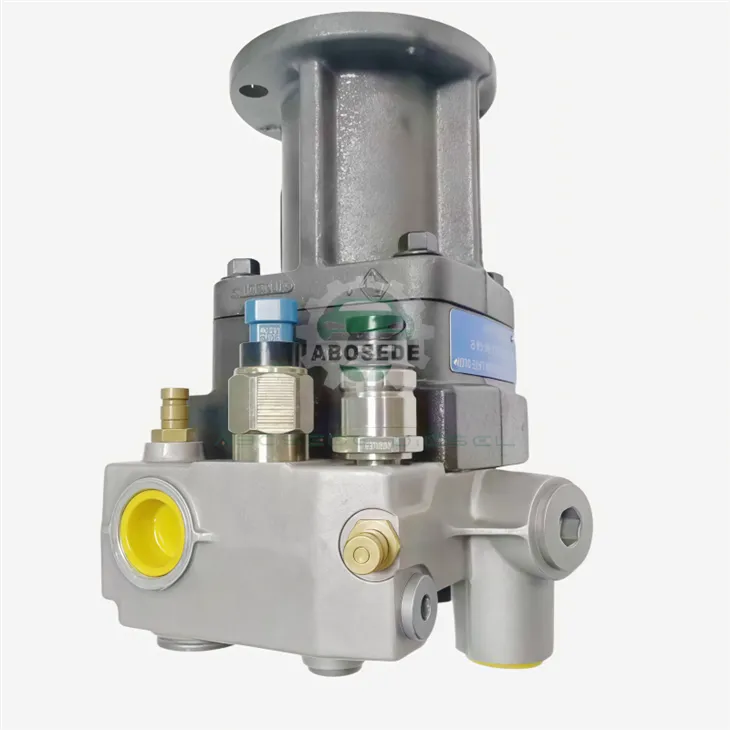

Cummins 4010566 Hydraulic Pump For Q23 Q60 Engines | OEM Auxiliary Fluid Pump

When a heavy-duty diesel engine operates under extreme industrial loads, its High-Pressure Common Rail (HPCR) injection system demands absolute thermal and rotational stability. The Cummins 4010566 is a heavy-duty auxiliary hydraulic pump designed for Cummins Q23 and Q60 engine platforms. Rather than operating as an isolated unit, this pump serves as a critical component in the engine's fluid-driven architecture.

By stabilizing auxiliary hydraulic pressure, it reduces parasitical mechanical vibration transferred through the gear train to the HPCR fuel pump. This ensures precise rail pressure control, prevents microscopic fuel delivery fluctuations, and enhances overall combustion efficiency in demanding industrial applications.



🎯 Cross-System Application & Compatibility



This hydraulic pump is engineered specifically to interface with high-capacity Cummins industrial power units. It provides the necessary fluid power for auxiliary cooling fans, power steering systems, and integrated hydraulic attachments without causing drops in engine RPM or fuel pressure irregularities.

Engine Platforms: Cummins Q23 and Cummins Q60 heavy-duty diesel series.

Target Sectors: Off-highway mining trucks, large-scale power generation modules, marine auxiliary propulsion systems, and heavy construction equipment.

System Synergy: Optimized to work alongside high-pressure common rail injection setups, ensuring that hydraulic energy demand does not compromise fuel injection rail pressures.





Parameter / Specification	Operational Baseline Metrics
Part Number	Cummins 4010566
Compatible Series	Q23 / Q60 Industrial Power Platforms
Component Category	Heavy-Duty Auxiliary Hydraulic Pump
Housing Material	High-Tensile Nodular Cast Iron (Vibration-Dampening)
Internal Seals	Fluorocarbon (Viton) for High Thermal Resistance
Integration Type	Engine Gear-Driven / Direct Spline Coupling





The Cummins 4010566 utilizes a precision gear-displacement structure encased in a heavy-duty nodular cast iron housing. This robust construction prevents case distortion under high internal pressures. The internal gear profiles are micro-machined to minimize fluid pulsation, which directly contributes to the protection of downstream components.

From a system logic perspective, a pulsing auxiliary hydraulic pump introduces harmonic waves into the engine block. These waves can interfere with the ultra-precise metering valves (IMV/MPROP) found on HPCR pumps. By delivering smooth, linear hydraulic flow, the 4010566 acts as a mechanical dampener, stabilizing the engine's rotational balance and allowing the common rail system to maintain steady fuel pressure at the injectors.





Auxiliary hydraulic health directly affects the longevity of your high-pressure fuel infrastructure. To maximize the service life of the Cummins 4010566 and protect the surrounding engine systems, implement the following protocols:

Fluid Cleanliness: Maintain strict ISO 4406 fluid cleanliness standards (recommended 18/16/13 or better). Hydraulic contaminants accelerate gear wear, causing metal debris to enter the oil stream and risk damage to the main engine bearings.

Seal Inspection: Monitor the mounting flange and shaft seals for microscopic leaks. A degraded shaft seal can allow hydraulic oil to mix with engine oil, reducing oil viscosity and impacting the performance of the HPCR pump drive gear.

Cavitation Prevention: Ensure the hydraulic suction lines remain unrestrictive. Cavitation causes severe internal pitting and generates high-frequency vibrations that can degrade the electronic sensors monitoring the common rail system.





Q1: How does a failure in the Cummins 4010566 hydraulic pump affect the HPCR fuel system?

A1: While they handle different fluids, a failing hydraulic pump often generates severe mechanical vibration and gear backlash. Because the auxiliary pump and the HPCR fuel pump share the same engine gear train, these vibrations can transfer to the fuel pump's metering valve, causing unstable rail pressure readings and erratic injection cycles.

Q2: Can hydraulic oil cross-contamination affect Cummins Q23/Q60 electronic fuel injectors?

A2: Yes, indirectly. If the shaft seal of the Cummins 4010566 breaks down, hydraulic fluid can leak into the front gear housing and contaminate the engine crankcase oil. In engines that utilize oil-actuated systems or rely heavily on stable engine oil viscosity to cool the fuel injectors, contaminated oil can lead to poor thermal dissipation and premature injector tip wear.

Q3: What causes pressure drops in the auxiliary hydraulic loop during peak common rail loads?

A3: This is typically due to internal volumetric slippage inside a worn hydraulic pump housing. As the engine reaches maximum torque and the HPCR system demands high fuel pressure, any internal leakage within the 4010566 will worsen under the higher thermal conditions, causing a drop in auxiliary hydraulic pressure.

Q4: Why is a gear-driven hydraulic pump preferred over belt-driven alternatives on Q60 engines?

A4: Belt-driven pumps are prone to slipping under heavy industrial loads and cannot handle the high pressure output required by Q60 auxiliary systems. Direct gear-driven coupling ensures synchronized fluid power and eliminates the side-loading forces associated with belts, which protects the front engine gear train from misalignments that could disrupt the fuel pump drive.

Q5: What are the primary signs that the hydraulic pump needs replacement before it damages downstream components?

A5: Key warning signs include an unusual high-pitched whining noise (indicating cavitation or gear wear), increased hydraulic oil temperatures, slower response times in auxiliary hydraulic functions, and visible metallic glitter in the hydraulic fluid filters during routine maintenance.
