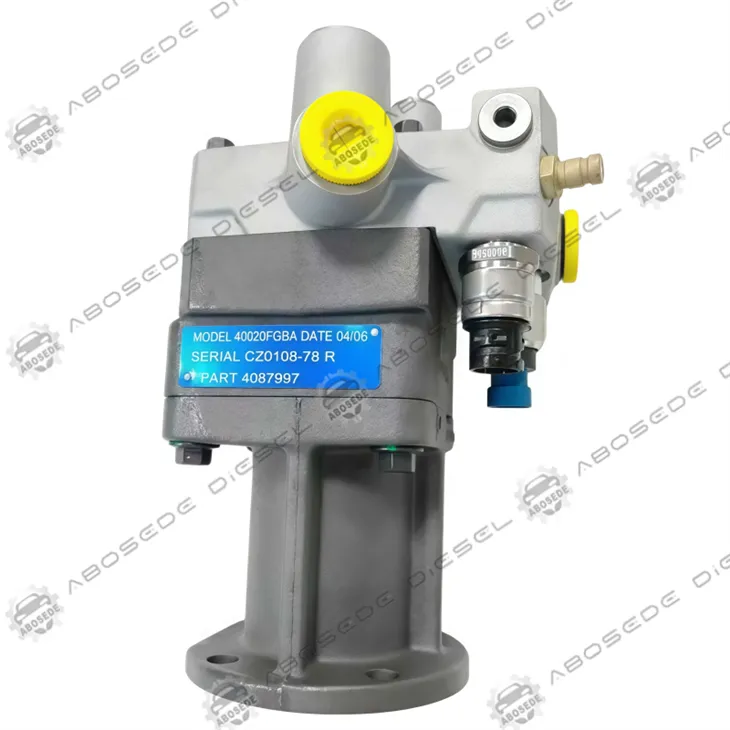

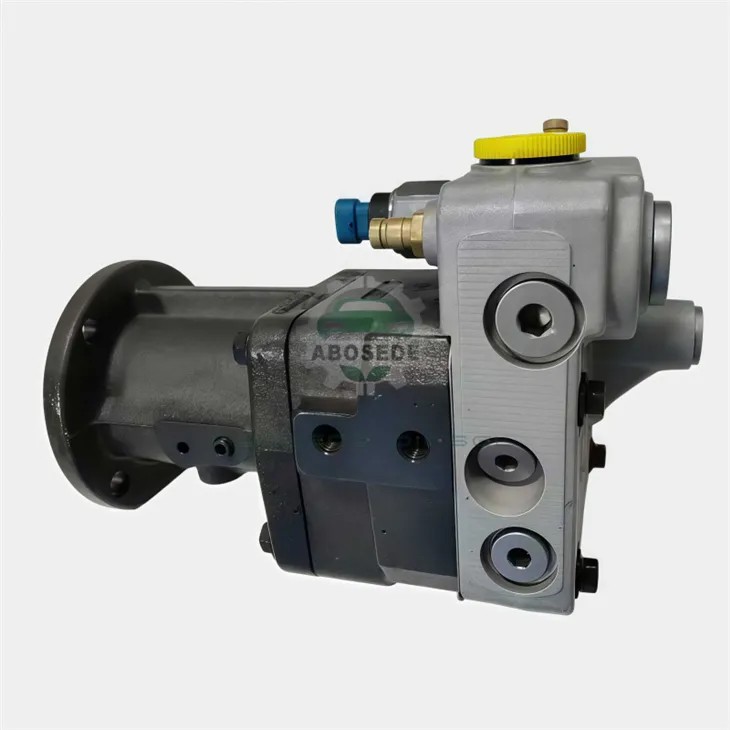

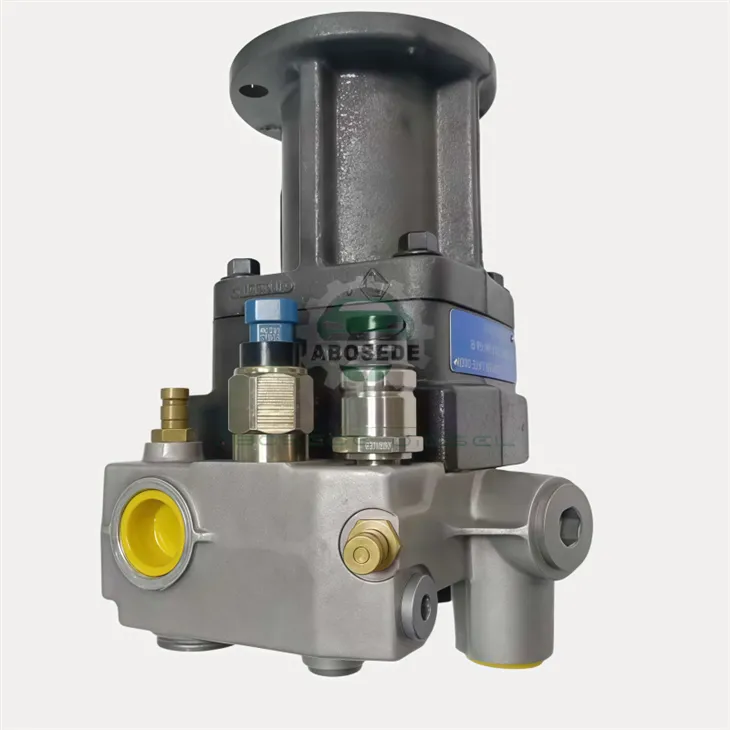

Cummins® 4087997 High-Volume Fuel Transfer Pump | Heavy-Duty Flow Stabilizer For QSK19, QSK23 & QSK60 HHP Engines

When operating ultra-large displacement Cummins® platforms like the QSK19, QSK23, and QSK60, system vulnerability rarely starts at the injector tip-it begins with supply-side starvation. The Cummins 4087997 fuel transfer pump acts as the primary hydraulic anchor for these High-Horsepower (HHP) engines. In mega-watt power generation, heavy mining haulage, and marine propulsion, maintaining a rock-solid, pulsation-free supply pressure to the high-pressure common rail (HPCR) or modular common rail system (MCRS) is non-negotiable.

This heavy-duty gear pump is specifically engineered to eliminate the micro-cavitation and pressure drops that trigger erratic rail sensor readings, injector scuffing, and costly unscheduled downtime. By shifting the perspective from a simple "replacement part" to an active safeguarding mechanism for your high-pressure fuel architecture, the 4087997 ensures your engine maintains peak thermodynamic efficiency under continuous max-load operations.



🔍 Selection Logic: Matching Flow Profiles to Multi-Subsystem Configurations



Selecting the correct supply pump for HHP Cummins installations requires analyzing application-specific duty cycles rather than just checking a parts manual cross-reference. The 4087997 is designed with a specialized volumetric efficiency profile that self-regulates across shifting viscosity gradients (caused by fuel temperature fluctuations).

When diagnosing low-rail pressure codes (such as Cummins Fault Code 2215 or 2216), technicians must evaluate whether the primary supply pump can overcome the restrictive fluid friction of dual-stage water separators and long-run chassis plumbing. The 4087997 features heavy-duty gear geometry that provides a distinct advantage in high-vacuum environments, making it the definitive upgrade for systems experiencing premature secondary filter clogging or high-altitude flow attenuation.



Metric Parameter	Engineering Value / Specification
Base Part Number	4087997
Engine Compatibility	Cummins QSK19, QSK23, QSK60 (HHP Configurations)
Fuel System Interface	Modular Common Rail System (MCRS) / High-Pressure Supply Line
Housing Material	High-Density Nodular Cast Iron (Anti-Fracture Grade)
Internal Gear Profile	Precision-Ground Spur Gear (Reduced Pulsation Geometry)
Operating Pressure Range	Optimized for low-pressure feed stabilization (System dependent)
Sealing Architecture	Viton Fluoropolymer High-Temperature Lip Seals





The 4087997 pump is built for mission-critical installations where engine failure is not an option. Its primary operational environments include:

Continuous Power Generation: Driving Cummins QSK60-G units providing prime and standby power for Tier-4 data centers and critical hospital grids.

Open-Pit Mining Equipment: Feeding high-tonnage haul trucks and hydraulic excavators working under extreme ambient dust and steep, high-load hill climbs.

Marine Propulsion & Auxiliary: Supplying commercial tugs, offshore supply vessels, and massive marine gensets requiring uninterrupted fuel delivery in rough sea states.

Resource Extraction: Powering high-pressure fracturing pumps and remote drilling rigs in oil and gas fields under severe thermal cycling.





To guarantee the longevity of both the 4087997 supply pump and the down-stream high-pressure components, maintenance teams should implement a proactive pressure-monitoring strategy.

Critical Diagnostic Point: Always measure inlet restriction (vacuum side) and outlet delivery pressure simultaneously. A sharp rise in inlet vacuum indicates a restricted primary filter or tank pickup line, which forces the 4087997 into cavitation, rapidly eroding the gear teeth and inducing metal shard contamination into the high-pressure system.

During scheduled 250-hour inspections, visually check the pump's mounting flange and weep hole for signs of fuel weeping. If ULSD with low lubricity (poor wear-scar ratings) is standard in your operational region, integrating a high-quality fuel conditioner is highly recommended to protect the internal journal bearings from accelerated galling.





Q1: How does a drop in performance of the 4087997 transfer pump directly affect the high-pressure common rail components?

A: If the 4087997 fails to maintain adequate feed pressure, the high-pressure fuel pump (MCRS pump) suffers from partial starvation. This causes vapor pockets (cavitation) to form within the high-pressure pumping elements. When these vapor bubbles are subjected to pressure scaling up to 2,000+ bar, they collapse violently, causing micro-pitting on the plungers, destroying the high-pressure pump, and sending fine metallic debris directly into the rail and electronic injectors.

Q2: Can the 4087997 pump handle alternative or renewable fuels like HVO (Hydrotreated Vegetable Oil) or B20 biodiesel?

A: Yes, thanks to its heavy-duty nodular cast iron housing and premium Viton sealing components, the 4087997 is fully compatible with EN15940 HVO fuels and properly blended ASTM D6751 B20 biodiesel. However, because biodiesel features a higher hygroscopic nature (absorbs more water), water separation maintenance intervals must be strictly enforced to prevent corrosion within the gear sets.

Q3: What are the primary warning signs that the fuel transfer pump is reaching its wear limit before a total system shutdown occurs?

A: Early indicators include extended crank times during cold starts, intermittent engine sagging under peak torque loads, and active Cummins fault codes relating to rail pressure instability. Physical inspection may reveal minor fuel leaking from the gear housing weep hole or an audible, high-pitched whining noise indicating fluid cavitation or bearing degradation.

Q4: Why is the gear profile design of the 4087997 so critical for high-horsepower Cummins platforms?

A: Large engines like the QSK60 demand massive volume displacement. The precision spur gear profile of the 4087997 minimizes hydraulic pressure ripples. If a low-quality aftermarket pump produces significant pressure pulsations, it can disrupt the fuel metering valves (IMV/MPROP) downstream, leading to erratic fuel pressure regulation and shortened injector lifespan.

Q5: Is it necessary to pre-lube the 4087997 pump during a fresh installation after an engine overhaul?

A: Absolutely. Dry startups are highly damaging to gear-driven pumps. Before connecting the final supply lines, the pump interior should be primed with clean, filtered calibration fluid or diesel fuel. This provides immediate hydrodynamic lubrication for the internal journal bearings and Viton lip seals during the initial seconds of cranking before the main fuel loop primes.
