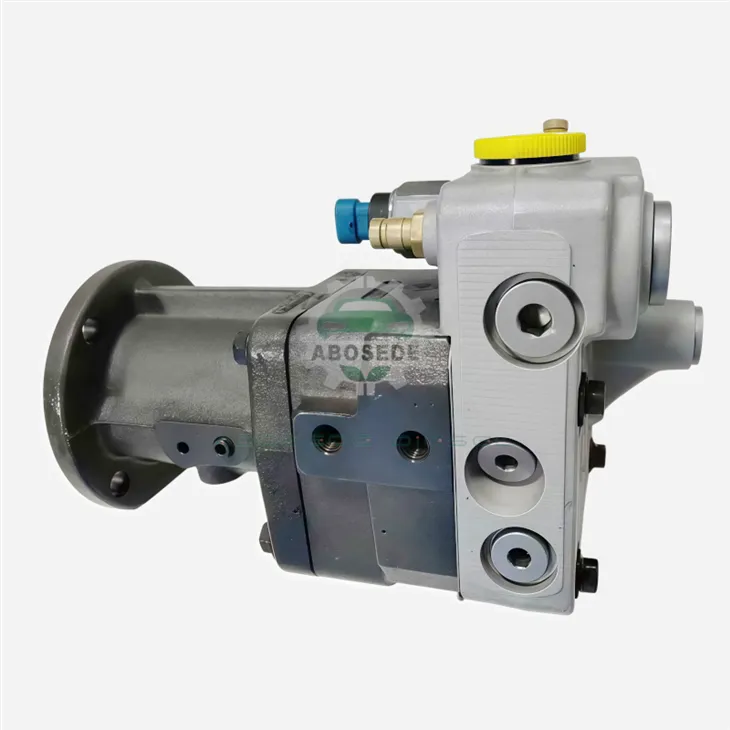

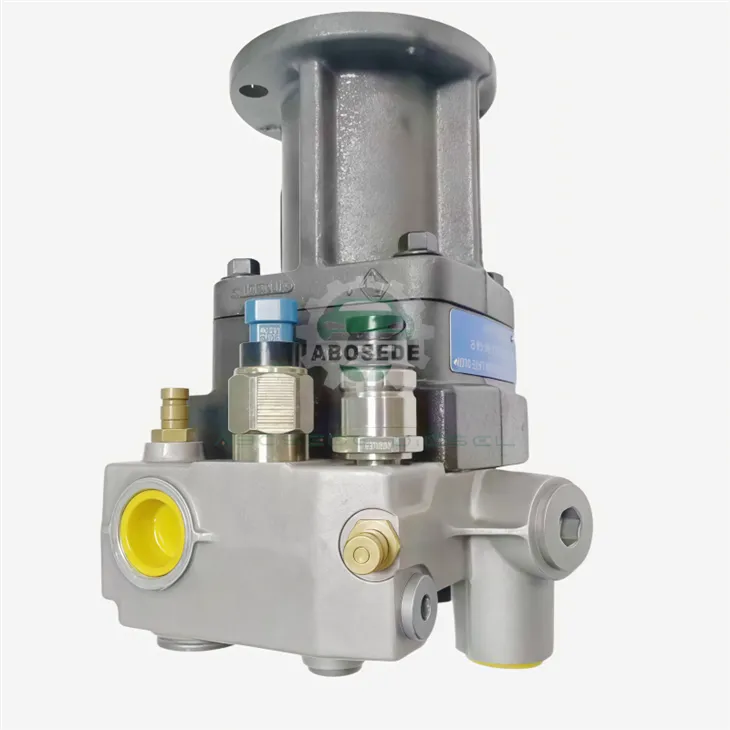

Cummins 4903531 High-Pressure Fuel Injection Pump | QSK23 Common Rail System Core

In high-horsepower industrial operations, any unexpected drop in fuel rail pressure leads to combustion instability, severe power derates, and costly fleet downtime. The Cummins 4903531 high-pressure fuel injection pump is engineered to eliminate these vulnerabilities on Cummins QSK23 diesel platforms.

Rather than serving as a basic fluid transfer unit, this heavy-duty injection assembly acts as the heart of the engine's fuel management framework. It provides the mechanical energy needed to sustain stable hydraulic pressure within the common rail envelope, even during brutal transient load changes. For technical procurement managers, engine rebuilders, and remote fleet operations throughout North America and Europe, the 4903531 offers a definitive answer to fuel delivery drift and high-stress mechanical wear.



📐 Selection Logic: Core-Exchange Metrics & Fitment Verification



When upgrading or replacing high-capacity fueling assemblies, relying solely on basic model lookups can cause compatibility issues with localized electronic control module (ECM) calibration codes. The selection framework for the 4903531 focuses on verifiable system telemetry:

Part Number Cross-Reference: Directly replaces original equipment manufacturer (OEM) and factory remanufactured numbers 2897672, 40020FGCA, 4009881, 4010566, 4076753, 4087997, and 4307242.

Actuation Matching: Engineered specifically for the gear-driven timing trains found on Tier 2 and Tier 3 QSK23 configurations. This ensures zero mechanical phase lagging when synchronized with the main crankshaft timing gear.

Calibration Code Harmony: Internally optimized to communicate seamlessly with multi-stage pilot injection routines. This helps prevent fuel metering control faults (FPS/FCA drift) that often occur with lesser aftermarket alternatives.





The 4903531 operates on a precise mechanical-to-hydraulic energy conversion curve. It takes fuel from the primary lift pump and compresses it to the extreme thresholds required for clean atomization.

By maintaining an unwavering supply of highly pressurized fuel to the shared rail accumulator, this pump enables the engine's electronics to execute up to five precise micro-injection events per combustion cycle. This structural stability drastically reduces parasitic crankshaft vibrations and protects individual common rail injectors from destructive internal pressure waves.





To ensure perfect compatibility with existing maintenance profiles and industrial procurement standards, the core engineering metrics of this unit are outlined below:

Engineering Parameter	Certified OEM Specification
Primary Product Number	Cummins 4903531
Alternative Factory SKUs	2897672 / 4307242 / 40020FGCA
Application Envelope	Cummins QSK23 Industrial & Power Gen
Fuel System Architecture	High-Pressure Common Rail (HPCR)
Dry Component Weight	43.0 lbs (19.5 kg)
Drive Interface	Heavy-Duty Splined Shaft / Integrated Timing Gear
Sealing System	High-Fluorine Elastomeric Viton Cores





To maximize the service life of this high-pressure pump and safeguard the downstream injection network, service teams should follow these technical procedures:

Strict Contamination Control: Modern common rail tolerances leave zero room for debris. Always pre-flush fuel system lines and enforce a strict ISO 4406 fuel cleanliness rating of 15/13/10 prior to final pump connection.

Mandatory Wet Priming: Never turn the engine over while the pump is dry. Running the internal pumping elements without fuel lubrication for even a few seconds will cause immediate metal scoring and ruin the unit.

Gear Train Backlash Verification: When installing the pump, check the timing gear backlash according to the factory manual. Improper gear meshing creates radial forces that quickly destroy the front shaft bearings and cause fuel leaks.





Q1: Why does a failure in the 4903531 pump often throw codes that look like an injector failure?

When the pump struggles to maintain pressure, the rail pressure sensor registers a drop below target values. Because the ECM cannot easily tell the difference between a weak pump and an over-bypassing injector, it often triggers general fuel rail pressure deviation codes. Testing the pump's output pressure directly under load will help pinpoint the true root cause.

Q2: How does fuel quality and lubricity alter the lifecycle of this injection assembly?

High-pressure common rail pumps rely entirely on the fuel itself for internal cooling and lubrication. Using ultra-low sulfur diesel (ULSD) without proper lubricity additives, or allowing water contamination into the fuel, destroys the protective fluid layer between the internal plungers and bores. This quickly leads to adhesive wear and component failure.

Q3: What makes this pump more reliable than standard aftermarket options during rapid load changes?

The internal pumping plungers in the genuine 4903531 are treated with a specialized wear-resistant coating. This coating prevents scuffing and minimizes volumetric efficiency losses when the engine suddenly changes from an idle to a full-load state, keeping fuel delivery perfectly stable.

Q4: Can I replace just the fuel control actuator on the pump, or must the entire unit be replaced if pressure drifts?

If diagnostics prove the internal plungers and mechanical gear drives are still maintaining full volumetric efficiency, a drifting pressure issue may be solved by replacing just the fuel control actuator. However, if bright metallic flakes are found inside the actuator screen, the pump's internal components have begun to break down, and the entire unit must be replaced.

Q5: What is the significance of the 43-pound weight listed in the specifications?

The 43-lb weight reflects the pump's heavy-duty design. It features a thick, high-strength cast-iron housing designed to handle the extreme internal pressures of modern common rail systems without stretching or distorting over thousands of operating hours.
