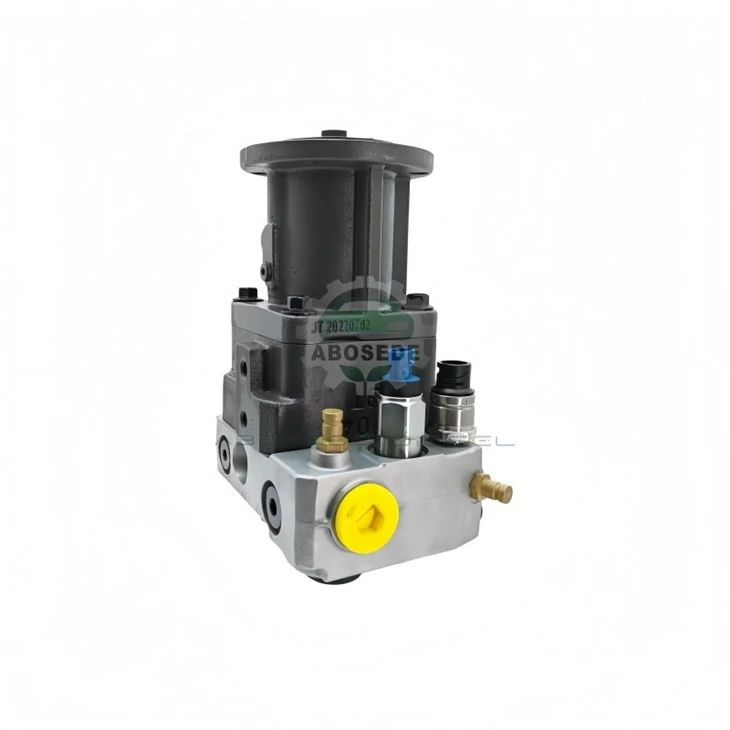

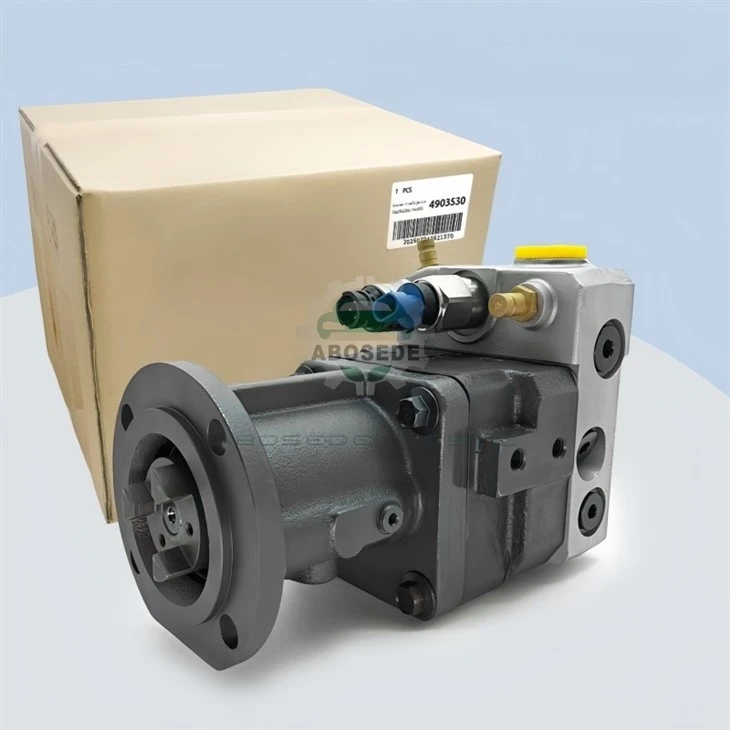

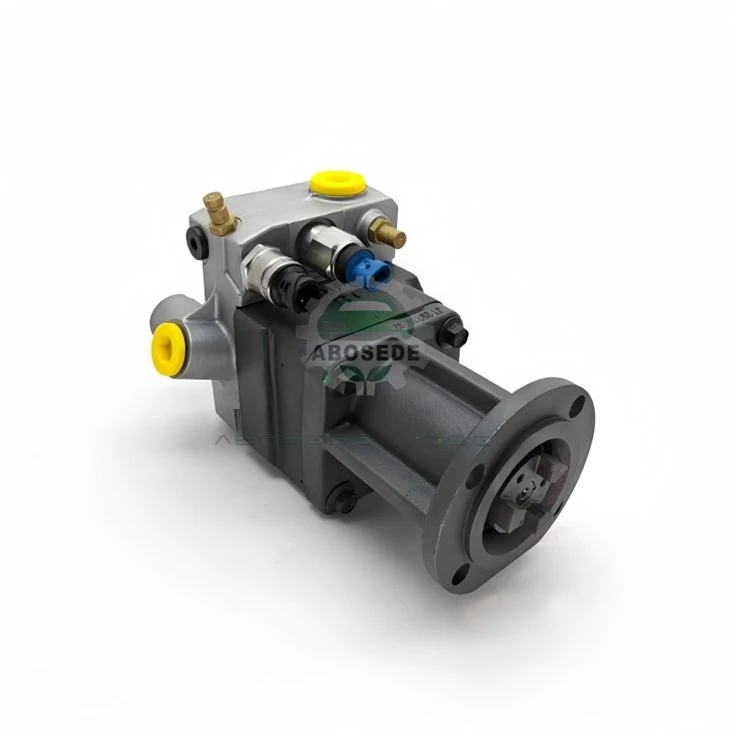

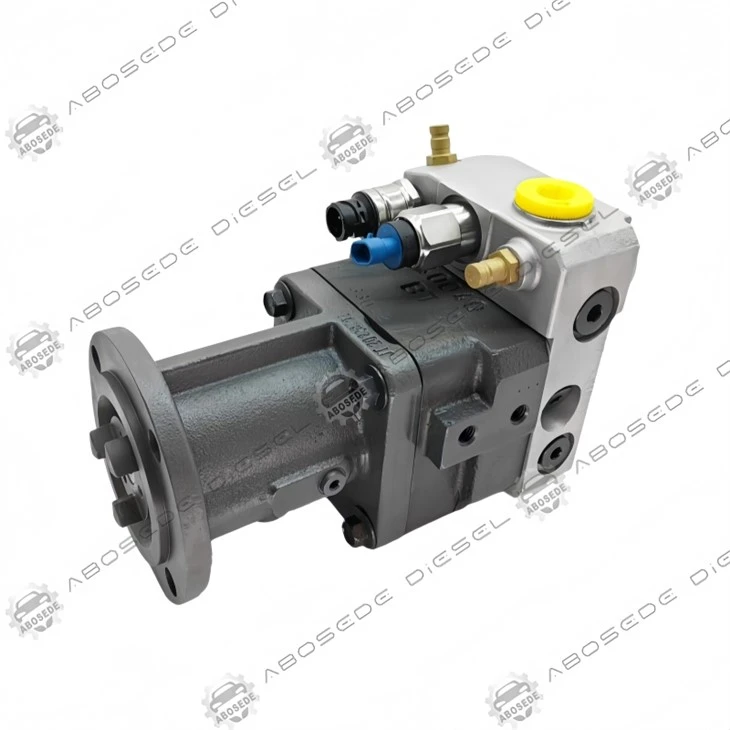

4903530 QSK60 High‑Pressure Fuel Pump – High‑Flow Capacity For Extreme‑Duty Mining And Marine Applications

In the world of heavy‑duty diesel, the QSK60 engine stands as a colossus-a 60‑litre, V‑16 powerplant that delivers up to 2,500 hp in mining haul trucks, marine vessels, and large‑scale gensets. The 4903530 is the high‑pressure fuel pump assembly specifically calibrated for this engine platform, and it represents the latest evolution in Cummins' QSK60 fuel system design. Unlike earlier variants (such as the 2897673 and 4087997), the 4903530 incorporates a revised pumping element geometry and an optimised inlet metering valve that delivers higher flow capacity at elevated rail pressures-a critical requirement for engines operating at sustained high loads in extreme ambient conditions. This article provides a detailed analysis of the 4903530's hydraulic performance, its internal architecture, application fitment, and the practical considerations for workshop servicing and installation.

The 4903530 retains the QSK60's signature dual‑pumping‑element architecture-two independent plunger‑barrel pairs operating in parallel-but with a revised plunger profile that increases the effective stroke and delivers a higher flow rate per revolution. This design provides:

Increased flow capacity: Each element delivers approximately 1,350 mm³/stroke at rated speed, a 12% increase over earlier variants.

Improved low‑speed filling: The revised plunger geometry enhances the suction stroke, ensuring consistent filling even at cranking speeds-critical for cold starts in mining environments.

Extended service life: The plunger and barrel are manufactured from a high‑grade powder‑metallurgy steel with a diamond‑like carbon (DLC) coating on the sliding surfaces, reducing wear and extending service intervals to 10,000+ hours in typical mining applications.

Key pump parameters:

The 4903530 is equipped with a proportional inlet metering valve (IMV) that regulates the fuel flow entering the pumping elements. The IMV is controlled by the engine ECU via a PWM signal, providing:

Rapid flow modulation: The valve can adjust the fuel delivery from 0 to 100% within 40 ms, enabling the ECU to respond quickly to load changes.

Pressure stability: By actively controlling the inlet flow, the IMV maintains rail pressure within ±15 bar of the target value, even during transient conditions.

Integrated diagnostics: The IMV includes a position sensor that provides feedback to the ECU, allowing for closed‑loop control and real‑time monitoring of valve performance.

IMV specifications:

The 4903530's IMV can be tested using diagnostic software:

IMV current feedback : The ECU monitors the valve's current draw. A current draw >3.2 A at peak indicates a short circuit; a draw <2.0 A indicates an open circuit or high resistance.

IMV response test : The ECU performs a "ramp test" by sweeping the PWM duty cycle from 10% to 90% and back. The measured fuel delivery should follow the command within ±4%-a larger deviation indicates wear in the IMV plunger or seat.

Leak‑off monitoring : The pump's return flow should be measured at idle. A return flow exceeding 1.2 l/min at 1,800 bar indicates excessive internal leakage, typically in the pumping elements.

Electrical connection : The IMV connector is a Deutsch DT04‑2P or equivalent. Ensure the connector is clean and dry-water ingress will cause erratic valve operation.

Torque specifications :

IMV mounting screws : 20 Nm (do not over‑tighten-the valve housing is aluminium).

Pump mounting bolts : 80 Nm (M10, grade 10.9).

High‑pressure pipe connections : 35 Nm (rail end), 28 Nm (pump end).

ECU learning : After installing a new 4903530, the ECU must perform a learned adaptation of the IMV's zero position and full‑flow position. This is done using diagnostic software-the process typically takes 5‑10 minutes and requires the engine to be at operating temperature.

Priming : Before starting, prime the fuel system using the manual priming pump or by cycling the lift pump. The IMV will not operate without fuel pressure-the ECU will not send a control signal until the rail pressure exceeds 200 bar.

Q1: How does the 4903530 differ from the earlier 2897673 and 4087997 pumps?
A: The 4903530 has a larger plunger diameter (14.5 mm vs 14.0 mm) and a longer stroke (19.0 mm vs 18.0 mm), delivering approximately 12% more flow at rated conditions. It also features an improved DLC coating on the sliding surfaces for extended durability and an enhanced inlet metering valve for better pressure control.

Q2: Can I replace an older QSK60 pump (2897673 or 4087997) with a 4903530?
A: Yes, but only if the ECU is recalibrated to the 4903530's flow characteristics. The ECU's fuel map must be updated to account for the higher delivery per stroke. Additionally, the IMV driver settings may need to be adjusted. Consult your engine manufacturer's service documentation for the correct calibration procedure.

Q3: What is the recommended service interval for the 4903530's pumping elements?
A: Under normal mining or marine conditions, the pumping elements typically last 10,000‑12,000 hours. However, this depends on fuel quality and operating conditions. We recommend monitoring the leak‑off rate-when it exceeds 1.2 l/min at 1,800 bar, the elements should be inspected and likely replaced.

Q4: How do I test the IMV without starting the engine?
A: You can measure the IMV resistance (5.0 Ω ± 0.5 Ω at 20 °C) and check for a short to ground (infinite resistance). For a full functional test, the engine must be running and the ECU must be in diagnostic mode, where it can command the IMV through its full range.

Q5: What causes the IMV to fail on the 4903530?
A: The most common cause is fuel contamination-abrasive particles wear the IMV plunger and its bore, causing erratic flow control. Also, overheating (>125 °C) can damage the solenoid's insulation. Ensure the fuel cooler is functioning correctly and that the fuel filters are changed at the recommended interval.

Q6: Can the IMV be rebuilt or must it be replaced as a unit?
A: The IMV is a sealed, precision‑calibrated unit and cannot be disassembled for service. If the IMV fails, the entire pump assembly must be replaced-the IMV is integrated into the pump body and is not available as a separate service part.
