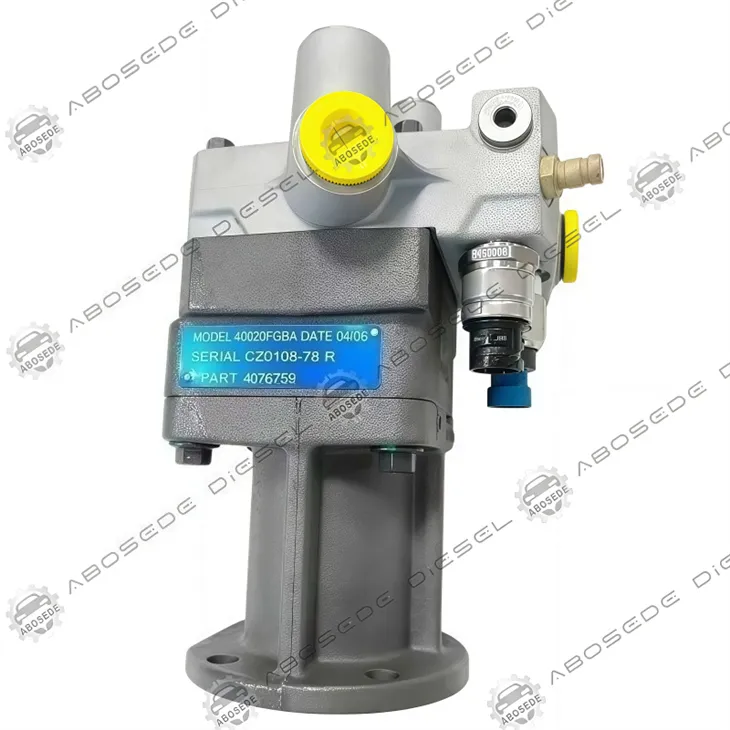

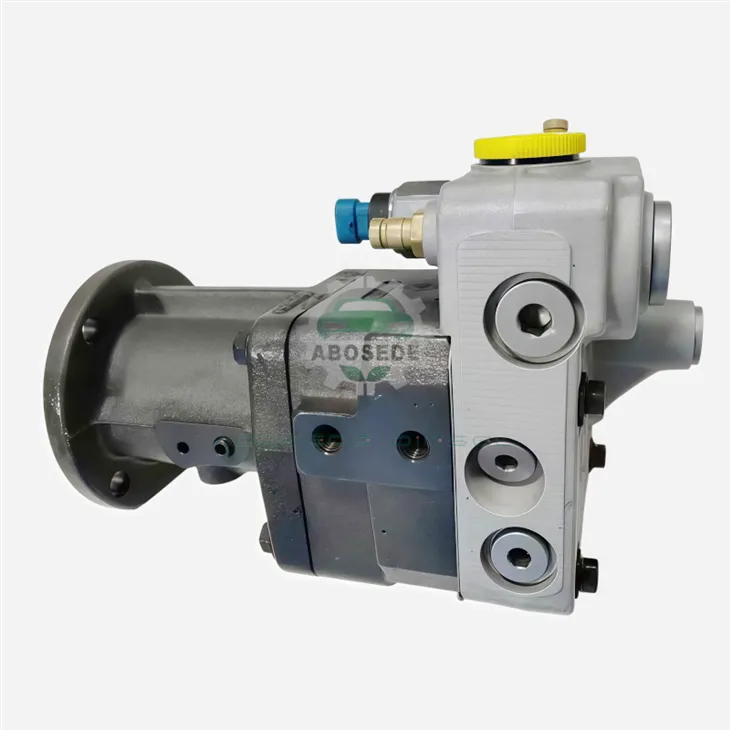

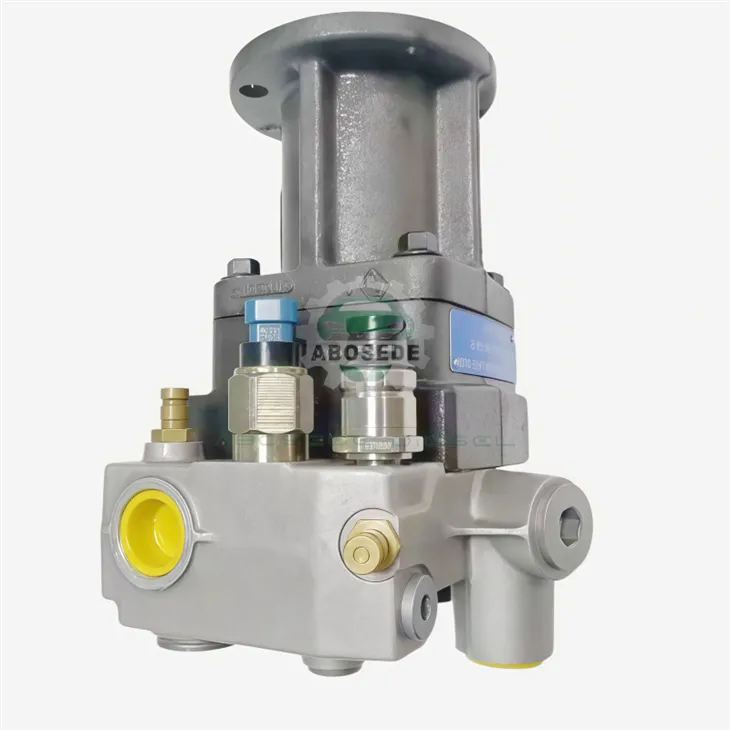

Heavy-Duty Hydraulic Actuation: Cummins 4076759 Fuel Lift / Gear Pump For QSK23 & QSK60 Engines

Unlike standard low-pressure transfer pumps, the Cummins 4076759 hydraulic gear pump serves as the critical kinetic foundation for the High-Pressure Common Rail (HPCR) framework in mega-displacement platforms like the Cummins QSK23 and QSK60.

In modern emission-regulated heavy industrial settings, fuel is not just a combustible medium; it acts as a hydraulic fluid that dictates the timing, spray optimization, and needle response inside modular common rail injectors. The 4076759 pump provides the baseline hydraulic volumetric efficiency needed to feed the high-pressure radial piston pumps, ensuring that the rail never suffers from cavitation or sudden pressure drops under extreme transient loads.



📋 Technical Specifications & Data Matrix



To assist procurement engineers and heavy workshop managers in precise component validation, the engineering parameters of the Cummins 4076759 pump are detailed below:

Parameter	Specification / Rating
OEM Part Number	4076759
Engine Compatibility	Cummins QSK23, QSK60 Series
Injection System Link	High-Pressure Common Rail (HPCR) Front-End Supply
Pump Type	Heavy-Duty Internal/External Gear Hydraulic Displacement
Housing Material	High-Tensile Nodular Cast Iron (Anti-Cavitation Graded)
Drive Interface	Precision-Machined Engine Gear-Train Driven Spline
Sealing Architecture	High-Fluorocarbon Viton Lip Seals (Bio-diesel & Low-Sulfur Resistant)





The mechanical anatomy of the 4076759 pump is optimized for the harsh harmonic environments of V16 (QSK60) and inline-6 (QSK23) power plants.

Precision Gear Profile: The internal gear tolerances are calibrated to micrometer levels to minimize slip-flow. This guarantees linear displacement even when fuel temperatures rise, altering kinematic viscosity.

Integrated Pressure Regulation: Features a built-in relief valve mechanism that dampens hydraulic spikes back into the inlet loop, protecting downstream fuel metering valves (IMV/MPROP) from hydraulic hammer effects.

Common Rail Balance: By maintaining a perfectly stabilized supply pressure to the high-pressure pump chamber, this unit directly cuts down on rail pressure fluctuations ($\Delta P_{rail}$), which stabilizes engine idle and ensures clean combustion cycles.





The Cummins 4076759 pump is engineered for mission-critical, high-load factors where engine downtime equates to significant revenue loss.

High-Output Mining Operations: Powering ultra-class haul trucks, excavators, and blast hole drills operating in high-dust, heavy-vibration environments.

Marine Propulsion & Auxiliaries: Ideal for commercial tugboats, offshore supply vessels, and continuous-duty marine gensets matching strict international maritime regulations.

Distributed Power Generation: Fueling multi-megawatt standby and prime power containerized generator sets that require instant load-acceptance capabilities.





Maximized component lifespan requires proactive fluid management and strict adherence to diagnostic thresholds:

Micro-Filtration Mandate: High-pressure common rail fuel loops are highly sensitive to particulate contamination. It is essential to use a premium 2-micron fuel water separator upstream of the 4076759 pump to prevent abrasive gear wear.

Seal Inspection Loops: Periodically verify the weeping hole on the gear housing adapter. Any trace of engine oil or fuel indicates internal shaft seal degradation, requiring an immediate component swap before cross-contamination compromises engine oil viscosity.

Back-Pressure Monitoring: High restriction on the suction side causes cavitation, which erodes the internal cast iron housing walls and leads to permanent pressure loss.





Q1: Why does a hydraulic fuel pump like the 4076759 matter so much to the lifespan of expensive high-pressure common rail injectors?

A: If the supply pump fails to deliver stable, bubble-free fuel to the high-pressure pump, cavitation occurs. This creates micro-fine metal debris that flows straight into the rail and down to the injectors. This debris quickly erodes injector nozzles and control valves, leading to total system failure.

Q2: Can the 4076759 pump handle modern Ultra-Low Sulfur Diesel (ULSD) and high-percentage bio-diesel blends?

A: Yes. The internal sealing compounds and bushing linings of the 4076759 are upgraded to withstand the lower lubricity of ULSD and the corrosive nature of bio-diesel blends (up to B20), preventing premature seal hardening or chemical breakdown.

Q3: What are the primary indicators that my Cummins QSK23 or QSK60 needs a supply pump replacement rather than a new injector kit?

A: Look for hard starting under cold conditions, unstable rail pressure diagnostic trouble codes (DTCs) at high load, and a measurable drop in low-pressure fuel gallery readings before the high-pressure stage.

Q4: How does the gear profiling on this specific pump manage the intense harmonic vibrations of a V16 engine like the QSK60?

A: The drive spline and gear mesh are induction-hardened and ground with a specialized crown profile. This design distributes harmonic energy across the gear teeth, preventing micro-pitting caused by engine torsional vibrations.

Q5: Is it advisable to rebuild the 4076759 pump in the field, or should we opt for complete assembly replacement?

A: For critical applications like marine or primary power generation, full assembly replacement is strongly recommended. The fine internal tolerances required to maintain pressure stability in modern common rail systems are exceptionally difficult to replicate without cleanroom bench-testing facilities.
