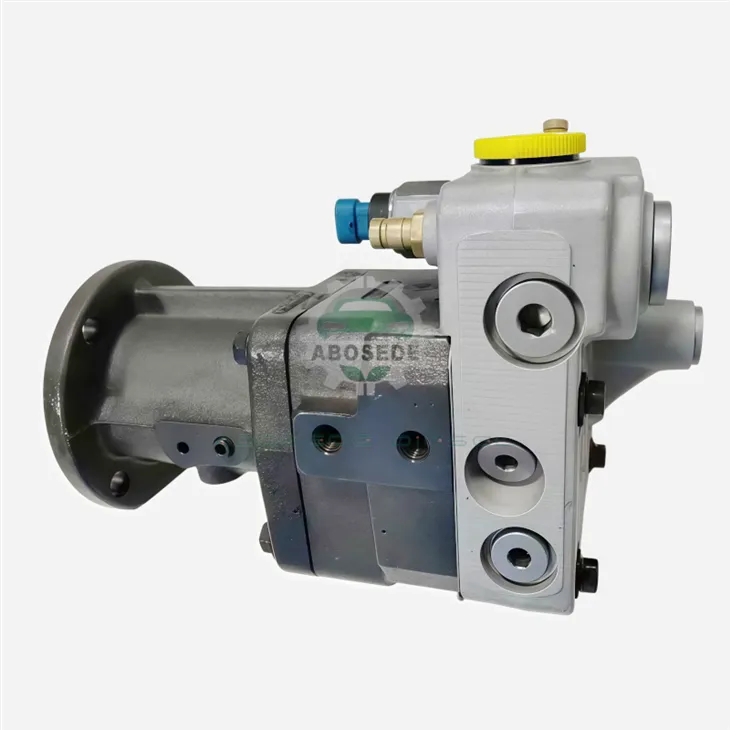

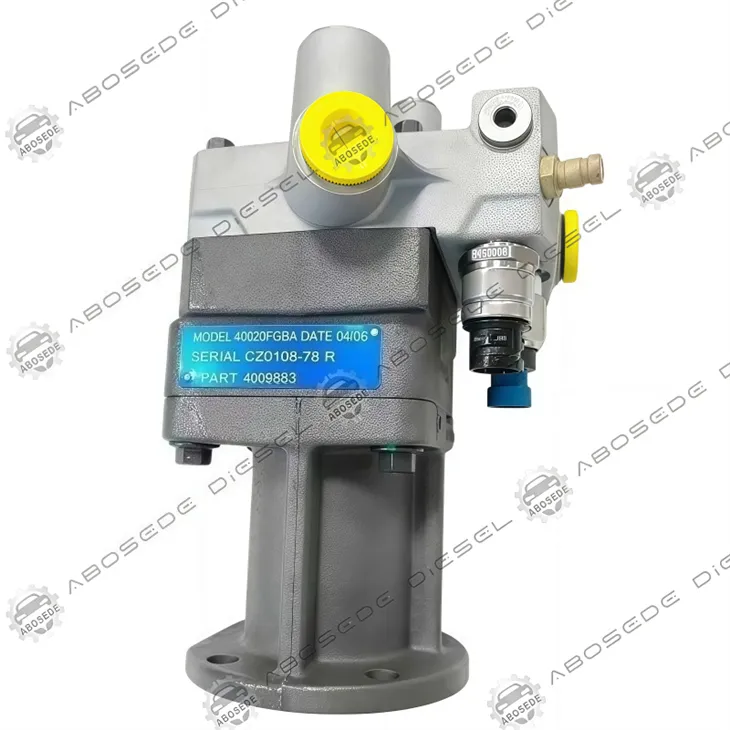

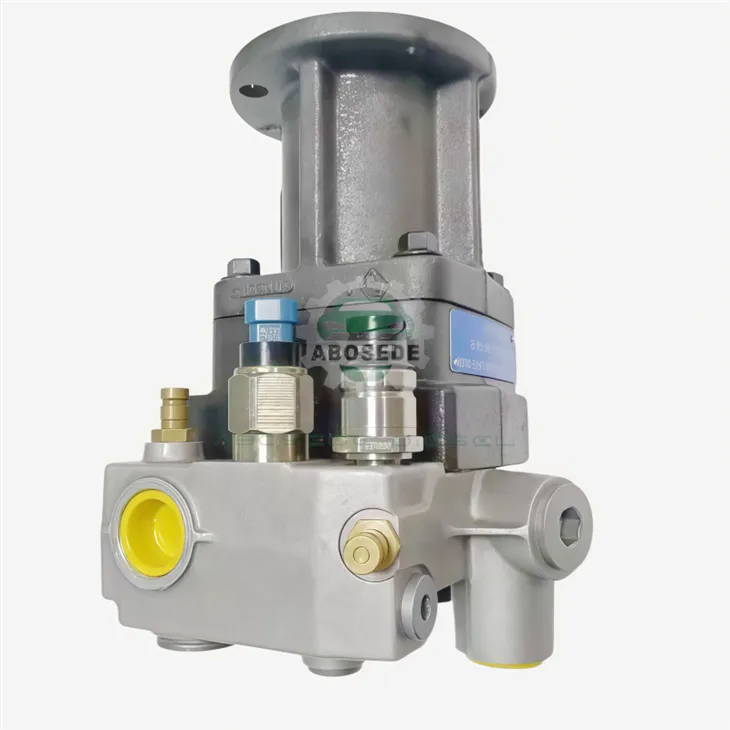

Industrial Fuel Delivery Optimization: Cummins 44009883 High-Pressure Pump For Q23 & Q60 Modulated Common Rail Systems

In mega-displacement diesel architectures, the true bottleneck for fuel economy isn't the electronic controller; it is the physical fluid density management inside the high-pressure block. The Cummins 44009883 Fuel Injection Pump delivers an engineered solution for the severe thermodynamic loads common to Cummins Q23 and Q60 power plants. While lower-tier components suffer from internal heat stroke when working against modern high-pressure common rail (HPCR) backpressures, this heavy-duty workhorse keeps its volumetric output stable over extended multi-shift runtime windows.

By employing an advanced internal circuit design, the 44009883 dampens hydraulic shockwaves right at the source. This protects the mechanical drive train from micro-cracking and keeps fuel delivery steady, matching the precision needed for modern multi-stage injection setups.



📊 Strategic Diagnostic & Operational Specifications



To assist commercial engine rebuilders and heavy industrial buyers with direct cross-referencing, the physical and hydraulic performance boundaries of the 44009883 are detailed below.

Architectural Parameter	Engineered Operational Matrix	Field Metric / Class
Component Core Model	Cummins 44009883	Unified System Part Designation
Platform Application	Industrial Engine Series Q23 / Q60	Heavy Mining, Marine, & Prime Gen
Injection Architecture	High-Pressure Common Rail (HPCR)	Multi-Injection Micro-Second Metering
Sustained System Pressure	Up to $1,850 \text{ bar}$ ($26,830 \text{ psi}$)	Low-Soot Clean Combustion Delivery
Flow Modulation Unit	Electronically Driven Inlet Metering	Real-Time ECM Loop Control
Housing Design	Cast Structural Monoblock Alloy	High-Vibration Mechanical Dampening





The real secret to the 44009883 pump's durability under extreme pressures lies in its internal tribology-the science of friction and wear. Operating in environments where system pressure routinely exceeds $1,800 \text{ bar}$, standard metal plungers risk immediate galling if there is even a momentary drop in fuel lubrication.

To prevent this, the 44009883 uses high-grade, nitride-hardened ceramic plungers. These plungers maintain tight hydraulic tolerances even when fuel temperatures climb, preventing internal blow-by. Furthermore, the pump's integrated gear pump section provides strong self-priming suction, protecting the main high-pressure chambers from cavitation damage during dry hot-starts.





This high-capacity hydraulic fuel pump is built for heavy-duty applications where any unscheduled downtime can mean massive financial losses per hour.

Ultra-Class Mining Equipment: Large off-highway haul trucks and massive track excavators that run continuously in hot, dusty mining conditions.

Continuous Marine Propulsion: Commercial tugs, workboats, and auxiliary generator sets exposed to harsh marine environments and variable fuel quality.

Critical Backup Infrastructure: High-output data center standby generators that must crank reliably and take full load in seconds.





Maintaining an HPCR system means looking closely at fluid cleanliness. To ensure the longest possible service life for your Cummins 44009883, implementation of these fleet engineering protocols is vital:

Strict Fluid Cleanliness Targets: Ensure fuel lines meet ISO 4406 cleanliness standards ($12/9/6$ or cleaner). Even microscopic debris can act like sandpaper under high pressure, scoring precision surfaces in no time.

Regular Return-Line Inspections: Keep an eye on fuel return line temperatures and restriction levels. If return flow is blocked, backpressure can damage the pump's internal shaft seals, leading to engine oil dilution.

Precise Gear Timing Alignments: During installation, double-check that the pump drive gear aligns perfectly with the engine gear train. Any slight alignment error puts uneven side-loads on the pump bearing, causing early failure.





Q1: What structural differences set the Cummins 44009883 apart from older fuel pump models?

A: The 44009883 features an upgraded internal fluid circuit that manages high thermal return flows much better than previous generations. This design prevents fuel thinning inside the pump, protecting internal components when running in hot climates or under continuous high loads.

Q2: How can field mechanics tell the difference between an inlet metering valve failure and internal mechanical wear on the 44009883?

A: If you see fluctuating or erratic rail pressures at idle, it usually points to an issue with the electronic inlet metering valve. On the other hand, if the engine struggles to build pressure only under high load-or exhibits long cranking times when hot-it typically means the internal plungers are worn, allowing fuel to leak past the high-pressure seals.

Q3: Is the 44009883 pump body compatible with high-percentage biodiesel blends (such as B20)?

A: While the pump's heavy-duty internal coatings provide good protection, using biodiesel blends up to B20 requires strict water monitoring. Biodiesel naturally holds more water, which can trigger corrosion and microbial growth if the fuel system isn't regularly maintained and drained.

Q4: Why does a failure in a lower-quality aftermarket pump often require a full replacement of the common rail and fuel injectors?

A: When low-grade aftermarket pumps fail under high pressure, they often break apart internally, sending tiny metal fragments downstream. These shards travel through the common rail and wedge themselves inside the fuel injectors, causing total system failure that requires an expensive, full rebuild.

Q5: What is the recommended procedure for flushing the fuel system after installing a new 44009883 pump assembly?

A: Before starting the engine, flush the low-pressure supply lines completely and replace all fuel filters. Next, crank the engine with the high-pressure line cracked open slightly at the rail to purge any trapped air, preventing dry-running damage to the precision internal plungers.
