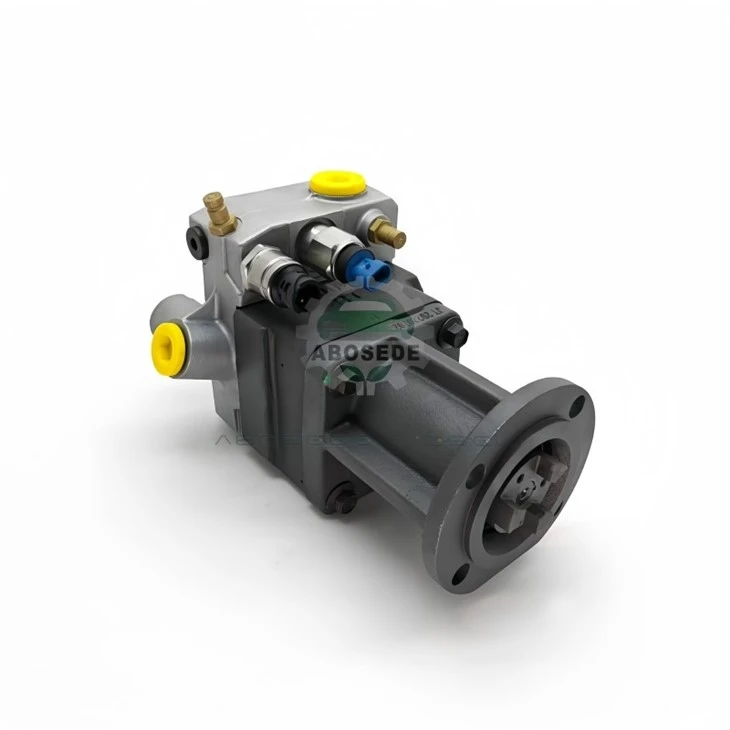

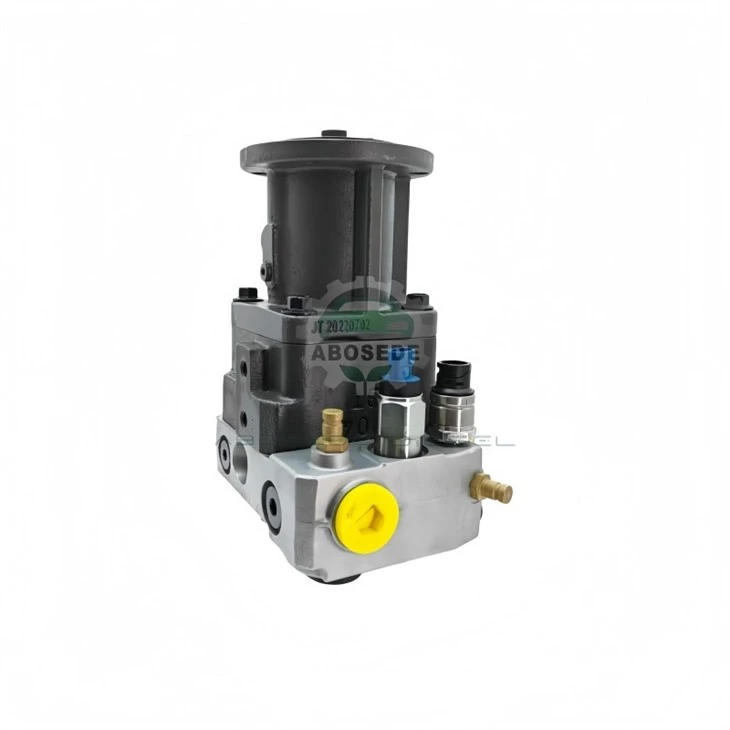

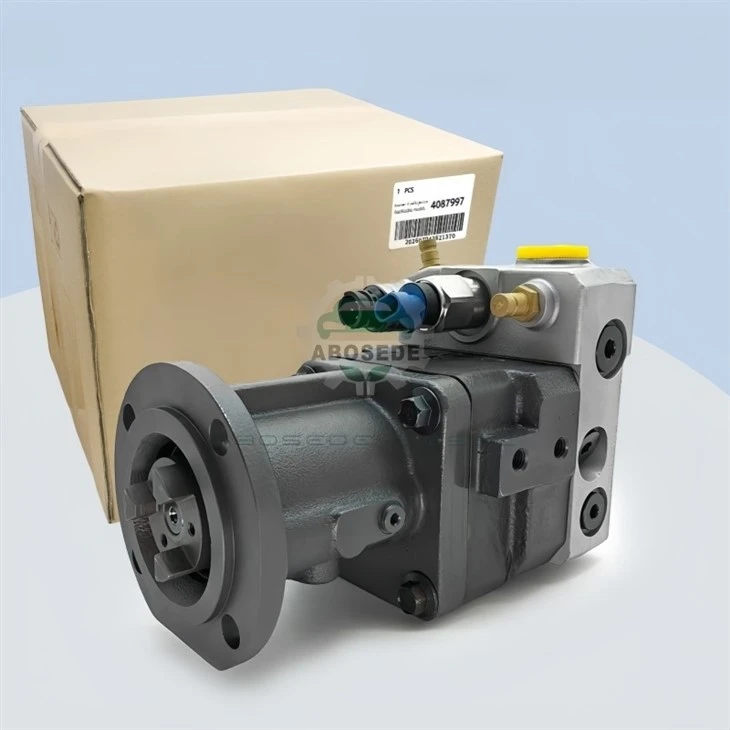

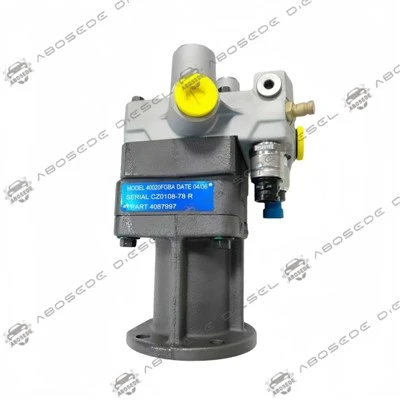

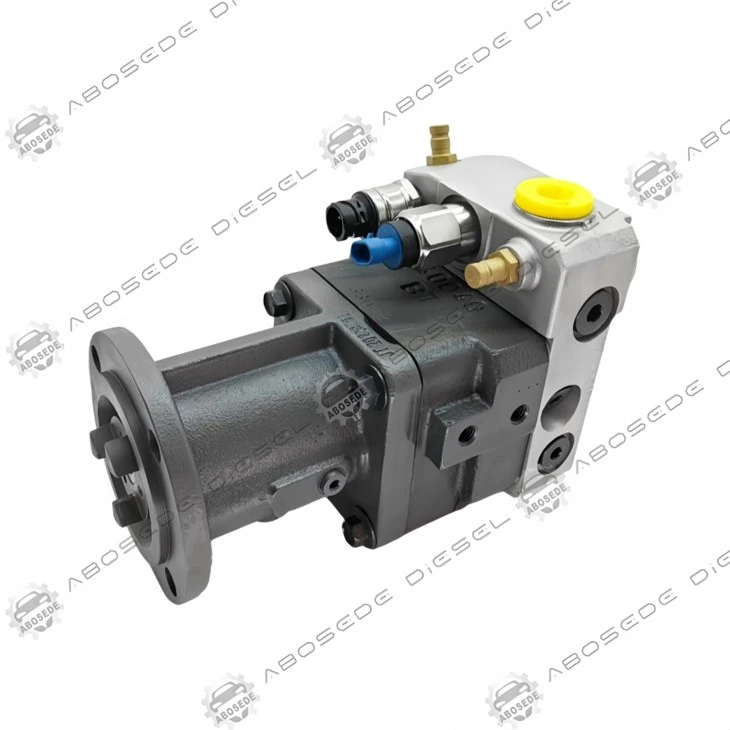

4087997 QSK60 High-Pressure Fuel Pump Assembly – Integrated Actuator Control For Electronic Fuel Management

The QSK60 engine's fuel system represents a hybrid architecture-hydraulic pressure generation combined with electronic metering. The 4087997 is the complete high-pressure fuel pump assembly for the QSK60, but unlike the mechanically-governed 2897673 variant, this pump incorporates an integrated fuel actuator that provides electronic control of the fuel delivery. This actuator, driven by the engine ECU, modulates the pump's output in real-time, enabling precise fuel metering across the engine's entire operating range-from idle to full load. This design allows for closed-loop fuel control without the need for a separate pressure control valve on the rail, simplifying the high-pressure plumbing and reducing potential leak points. This article details the actuator's function, the pump's hydraulic performance, application specifics, and service considerations for the 4087997.

The 4087997's actuator is a proportional solenoid that directly controls the pump's inlet metering valve. The ECU sends a PWM signal (typically 200–400 Hz) to the actuator, which adjusts the valve opening to regulate the amount of fuel entering the pumping elements. This provides:

Precise flow control : The actuator can adjust the fuel delivery from near-zero (for engine braking) to full rated flow (for maximum power) within 50 ms.

Pressure stability : By actively modulating the inlet flow, the actuator maintains rail pressure within ±20 bar of the target value, even during rapid load changes.

Simplified rail design : Without a separate PCV, the rail has fewer connections, reducing the risk of external leaks.

Actuator specifications:

The 4087997's actuator can be tested using diagnostic software:

Actuator current feedback : The ECU monitors the actuator's current draw. A current draw that is significantly higher than expected (>3.5 A at peak) indicates a short circuit in the coil; a lower draw (<2.0 A) indicates an open circuit or high resistance.

Actuator response test : The ECU can perform a "ramp test" by sweeping the PWM duty cycle from 10% to 80% and back. The measured fuel delivery should follow the command within ±5%-a larger deviation indicates wear in the inlet metering valve or the actuator plunger.

Leak-off monitoring : The pump's return flow should be measured at idle. A return flow exceeding 1.2 l/min at 1,600 bar (pump running) indicates excessive internal leakage, likely in the pumping elements.

Electrical connection : The actuator connector is a Deutsch DT04-2P or equivalent (depending on the harness). Ensure the connector is clean and dry-water ingress will cause erratic actuator operation.

Torque specifications :

Actuator mounting screws : 20 Nm (do not over-tighten-the solenoid housing is aluminium).

Pump mounting bolts : 80 Nm (M10, grade 10.9).

High-pressure pipe connections : 35 Nm (rail end), 28 Nm (pump end).

ECU learning : After installing a new 4087997, the ECU must perform a learned adaptation of the actuator's zero position and full-flow position. This is done using diagnostic software-the process typically takes 5–10 minutes and requires the engine to be at operating temperature.

Priming : Before starting, prime the fuel system using the manual priming pump or by cycling the lift pump. The actuator will not operate without fuel pressure-the ECU will not send a control signal until the rail pressure exceeds 200 bar.

The 4087997 is the OEM replacement for the QSK60 engine platform in applications where electronic control is required:

Cross-reference: The 4087997 supersedes the earlier 2897673 pump in engines that use electronic fuel control. It is not interchangeable with the 2897673 without a complete ECU recalibration and potentially a wiring harness change, as the actuator control requires a different ECU output driver.

Q1: What is the difference between the 4087997 and the 2897673 pump?
A: The 2897673 uses a mechanical pressure control valve (PCV) that is controlled by the ECU. The 4087997 integrates the control function into the pump itself via an inlet metering actuator. The 4087997 offers faster response and simpler rail plumbing, but requires an ECU that supports the actuator control.

Q2: Can I replace a 2897673 with a 4087997 without changing the ECU?
A: No. The 4087997 requires an ECU that outputs the specific PWM signal for the actuator. If your engine was originally equipped with a 2897673, the ECU will not have the correct driver circuit. You would need to replace the ECU and potentially the wiring harness.

Q3: What causes the actuator to fail on the 4087997?
A: The most common cause is fuel contamination-abrasive particles wear the actuator plunger and its bore, causing erratic flow control. Also, overheating (>120 °C) can damage the solenoid's insulation. Ensure the fuel cooler is functioning and that the fuel filters are changed at the recommended interval.

Q4: How do I test the actuator without starting the engine?
A: You can measure the actuator resistance (4.5 Ω ± 0.5 Ω at 20 °C) and check for a short to ground (infinite resistance). However, a full functional test requires the engine to be running and the ECU to be in diagnostic mode, where it can command the actuator through its full range.

Q5: What is the recommended interval for replacing the pumping elements on the 4087997?
A: Under normal service, the pumping elements typically last 8,000–10,000 hours. However, if the actuator is replaced, it is advisable to replace the pumping elements at the same time-the actuator controls the flow, but worn elements will cause excessive leak-off, reducing system efficiency and potentially damaging the actuator.

Q6: Can I rebuild the actuator myself, or must it be replaced as a unit?
A: The actuator is a sealed unit and cannot be disassembled for service. If the actuator fails, the entire 4087997 pump assembly must be replaced. There are no serviceable parts inside the actuator-it is precision‑calibrated at the factory.
